691253610002

This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    MATERIAL
    INSULATOR: PA6/66
    FLAMMABILITY RATING: UL94V0
    COLOR: GREEN
    TERMINAL SCREW: STEEL / Zn
    WIRE GUARD: COPPER ALLOY / Ni+Sn
    ENVIRONMENTAL
    OPERATING TEMPERATURE: -30°C UP TO +120°C
    COMPLIANCE: LEAD FREE AND ROHS
    STANDARD
    CERTIFIED: E150931 CAT. N°: MRT5 (2)
    CERTIFIED: 40021392 TYPE: MRT5
    ELECTRICAL UL VDE
    CURRENT RATING: 16A 24A
    WORKING VOLTAGE: 300VAC 450VAC
    WITHSTANDING VOLTAGE: 1,6KV 2,5KV
    MECHANICAL
    SOLID WIRE: 30-12 AWG / 0,05-3,31 mm²
    STRANDED WIRE: 30-12 AWG / 0,05-3,31 mm²
    TORQUE: 5Lb.In / 0,5 Nm
    WIRE STRIPE LENGTH: 6 mm
    SCREW: M3
    PITCH: 10,16 mm
    CONTACT RESISTANCE: 20 mΩ MAX
    SOLDERING
    JEDEC LEAD FREE WAVE SOLDERING

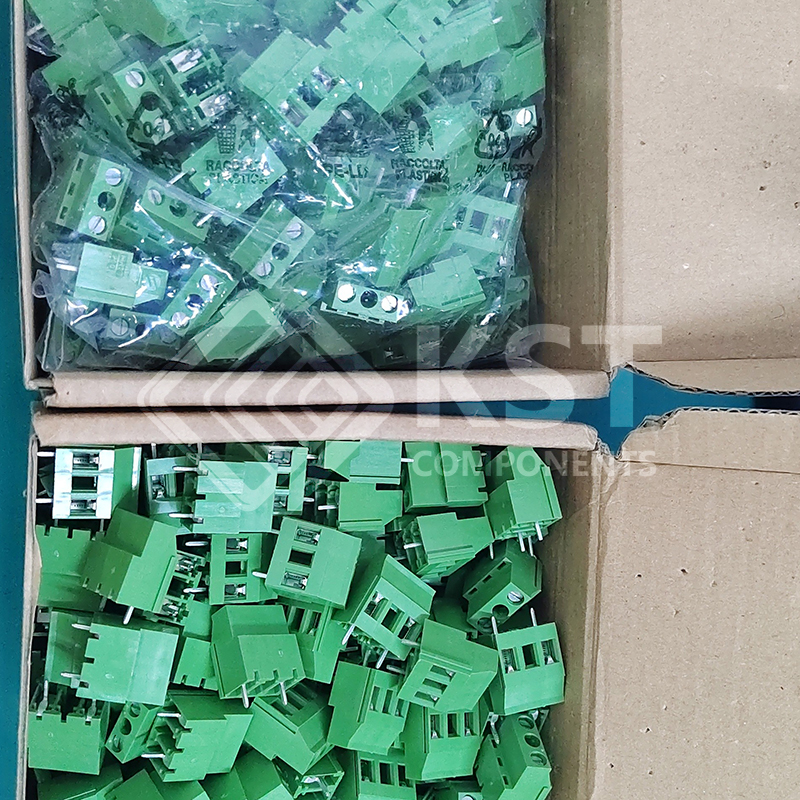

    PACKAGING
    BOX
