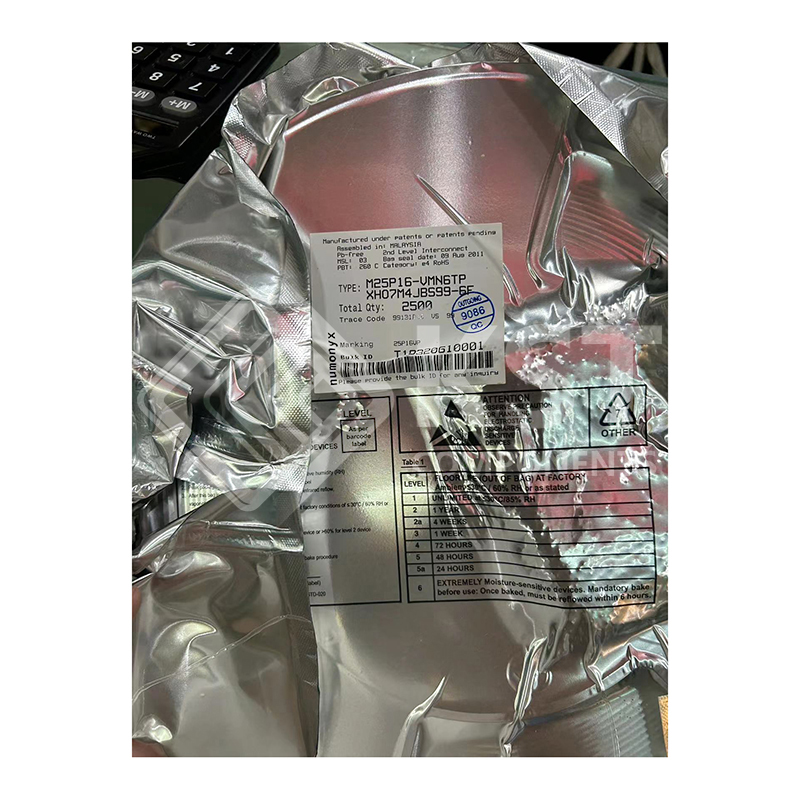

M25P16-VMN6TP

• SPI bus compatible serial interface
• 16Mb Flash memory
• 75 MHz clock frequency (maximum)
• 2.7V to 3.6V single supply voltage
• Page program (up to 256 bytes) in 0.64ms (TYP)
• Erase capability
– Sector erase: 512Kb in 0.6 s (TYP)
– Bulk erase: 16Mb in 13 s (TYP)
• Write protection
– Hardware write protection: protected area size
defined by non-volatile bits BP0, BP1, BP2
• Deep power down: 1µA (TYP)
• Electronic signature
– JEDEC standard 2-byte signature (2015h)
– Unique ID code (UID) and 16 bytes of read-only
data, available upon customer request
– RES command, one-byte signature (14h) for
backward compatibility
• More than 100,000 write cycles per sector
• More than 20 years data retention
• Automotive grade parts available
• Packages (RoHS compliant)
– SO8N (MN) 150 mils
– SO8W (MW) 208 mils
– SO16 (MF) 300 mils
– VFDFPN8 (MP) MLP8 6mm x 5mm
– VFDFPN8 (ME) MLP8 8mm x 6mm
– UFDFPN8 (MC) MLP8 4mm x 3mm
