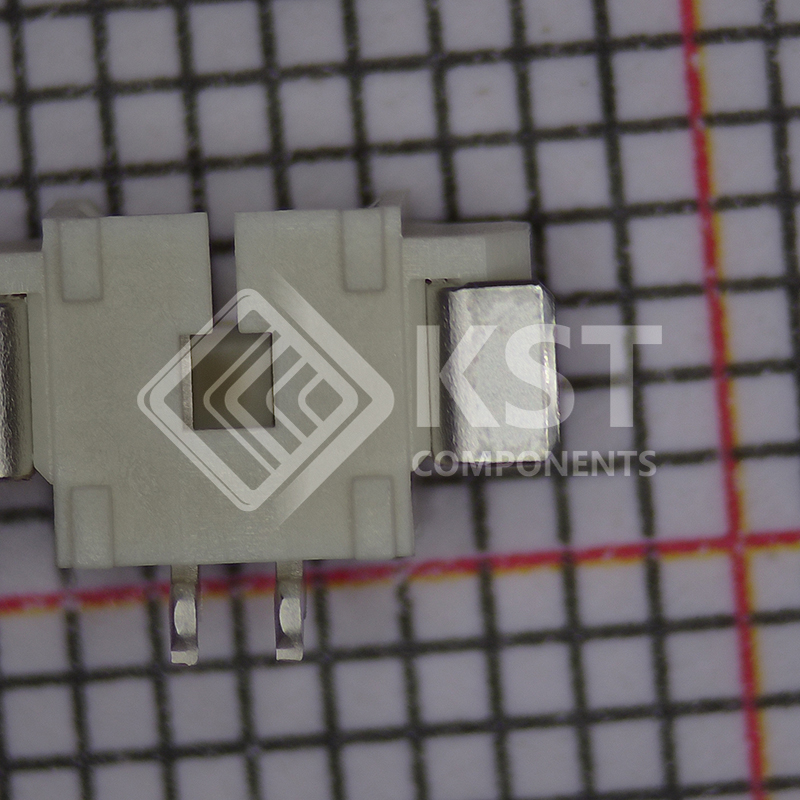

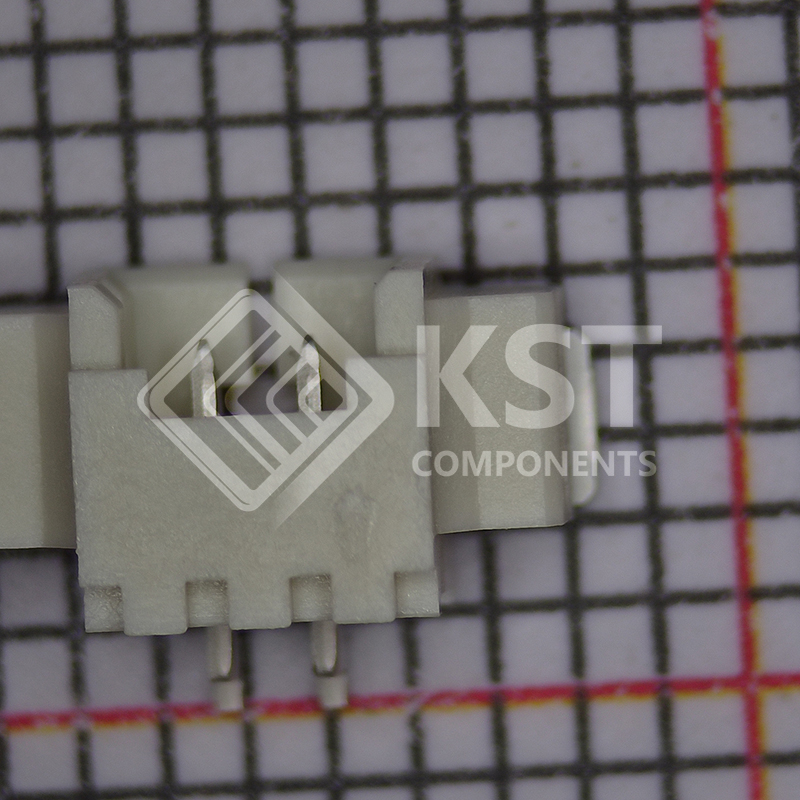

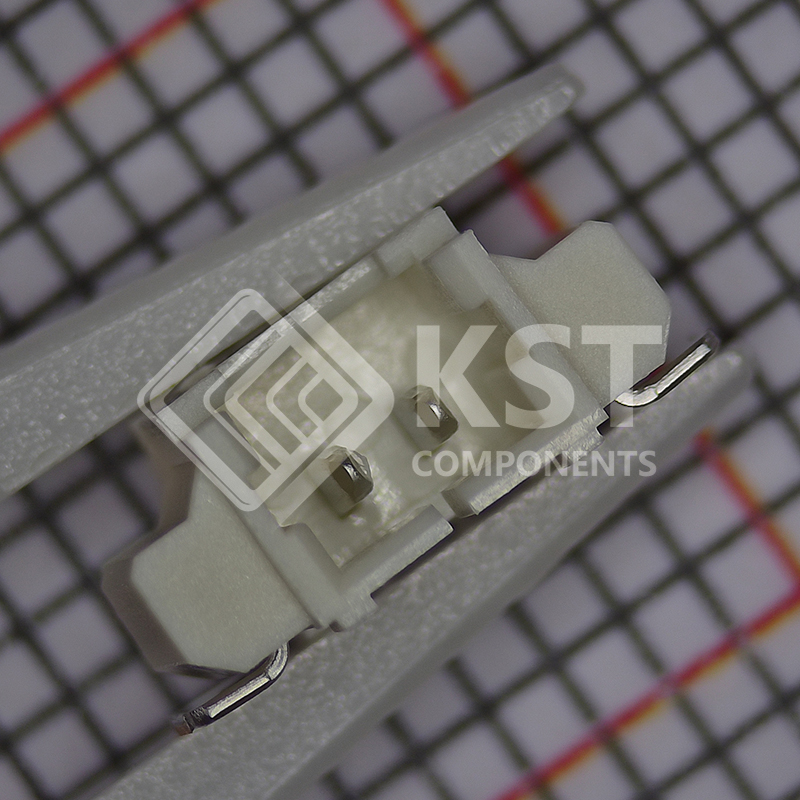

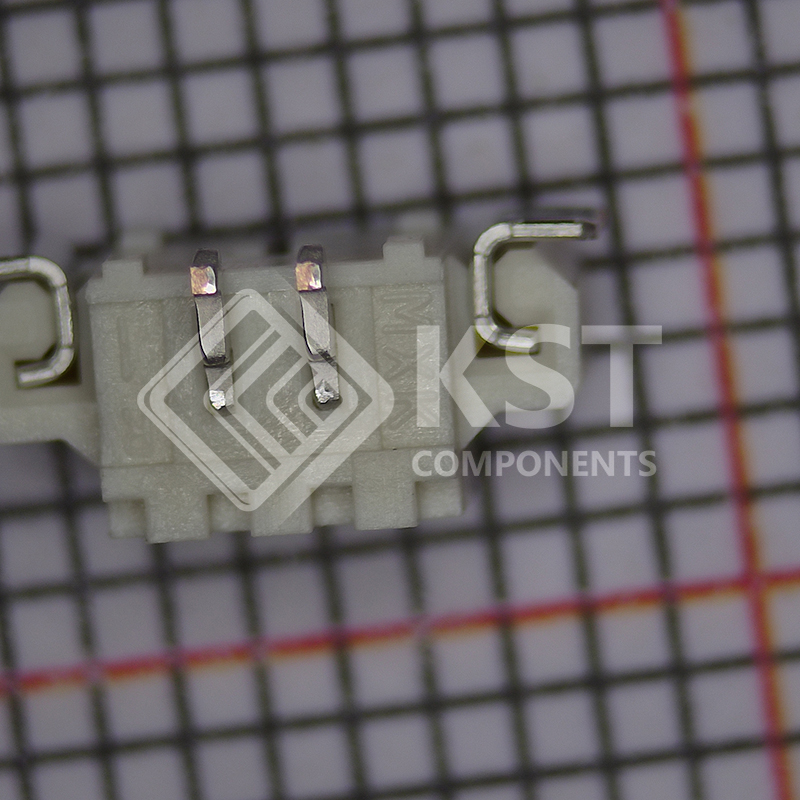

53261-0271

CONN HEADER SMD R/A 2POS 1.25MM


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Connectors, Interconnects
    Rectangular Connectors
    Headers, Male Pins
    Mfr
    Molex
    Series
    PicoBlade 53261

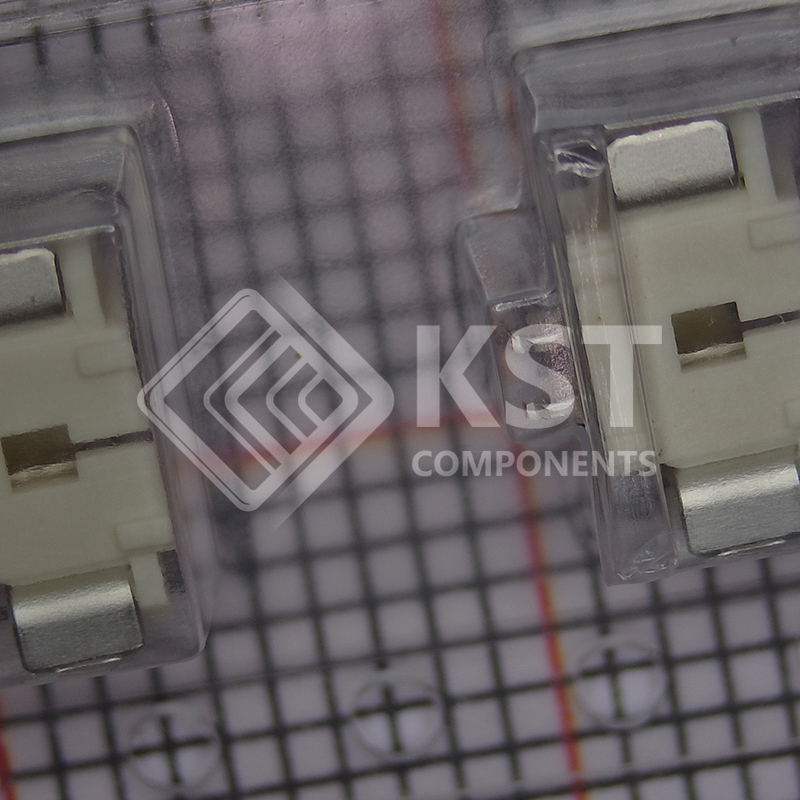

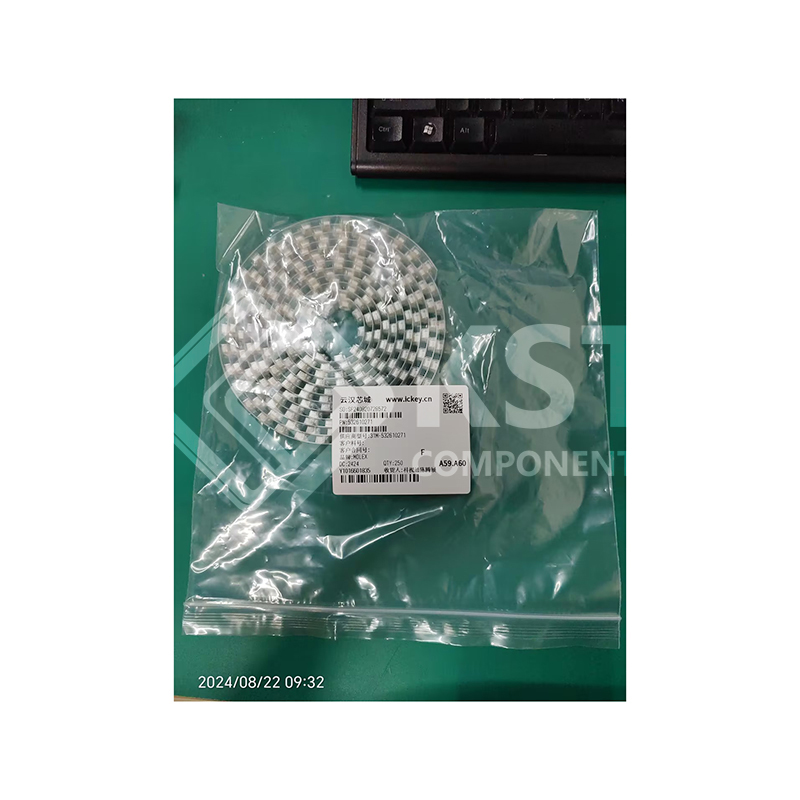

    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Connector Type
    Header
    Contact Type
    Male Blade
    Pitch – Mating
    0.049″ (1.25mm)
    Number of Positions
    2
    Number of Rows
    1
    Row Spacing – Mating
    Number of Positions Loaded
    All
    Style
    Board to Cable/Wire
    Shrouding
    Shrouded – 4 Wall
    Mounting Type
    Surface Mount, Right Angle
    Termination
    Solder
    Fastening Type
    Detent Lock
    Contact Length – Mating
    Contact Length – Post
    Overall Contact Length
    Insulation Height
    0.134″ (3.40mm)
    Contact Shape
    Rectangular
    Contact Finish – Mating
    Tin
    Contact Finish Thickness – Mating
    39.4µin (1.00µm)
    Contact Finish – Post
    Tin
    Contact Material
    Phosphor Bronze
    Insulation Material
    Polyamide (PA46), Nylon 4/6
    Features
    Solder Retention
    Operating Temperature
    Ingress Protection
    Material Flammability Rating
    UL94 V-0
    Insulation Color
    Natural
    Current Rating (Amps)
    Voltage Rating
    Mated Stacking Heights
    Contact Finish Thickness – Post
    Applications
    Automotive, General Purpose, Industrial, Medical
    Base Product Number
    053261
