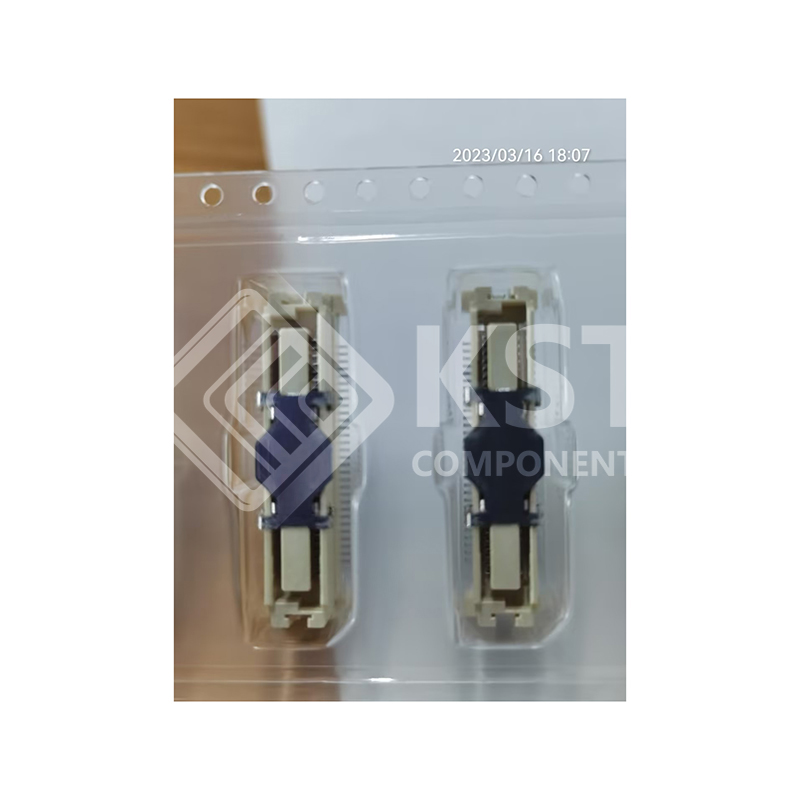

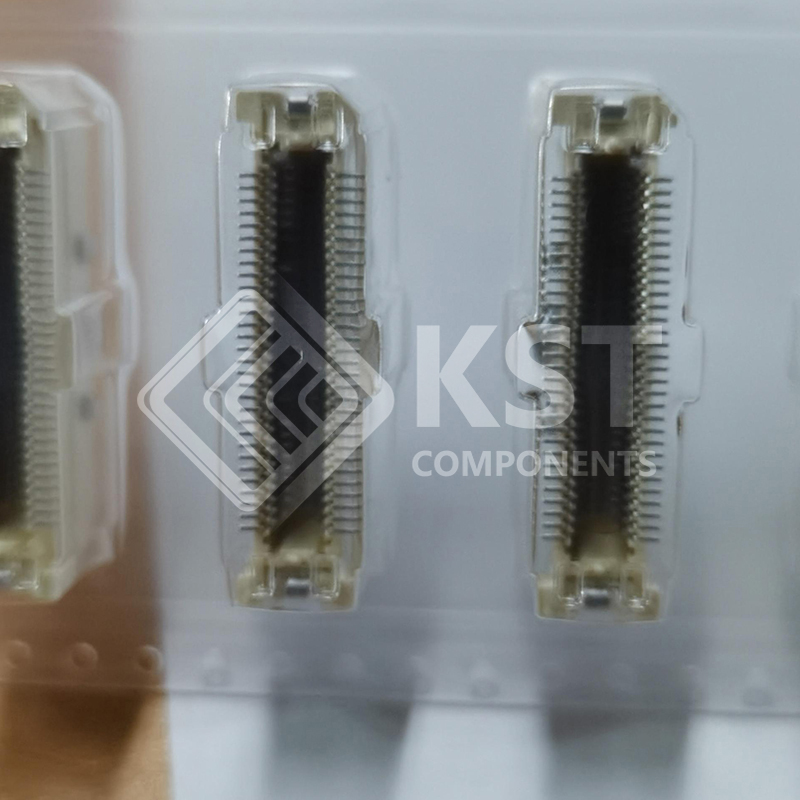

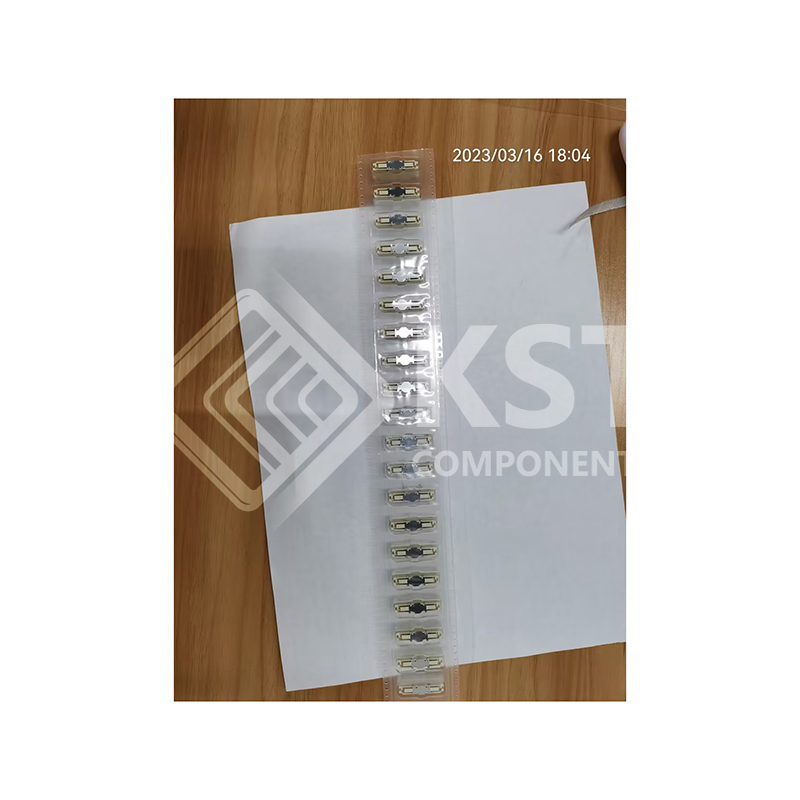

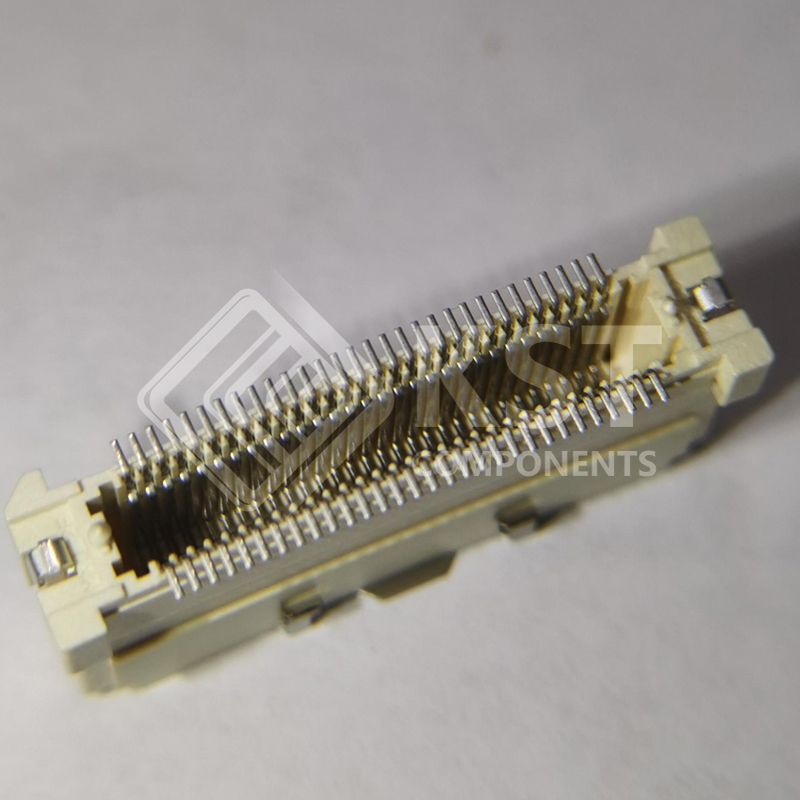

    52901-0674

    SlimStack Board-toBoard Connector, 0.635mm Pitch, 0.635
    Series, Receptacle, 12.00 to 16.00mm Mated
    Height, 6.40mm Mated Width, 60 Circuits

    Category:

    Download Details PDF
    Notice:

    In stock will ship in 2 days. Real-time inventory pls confirm with us.

    INQUIRY ONLINE




      SPECIFICATION

      Manufacturer Molex
      Series SlimStack 52901
      Packaging Tape & Reel (TR)
      Cut Tape (CT)
      Digi-Reel®
      Part Status Active
      Connector Type Receptacle, Center Strip Contacts
      Number of Positions 60
      Pitch 0.025″ (0.64mm)
      Number of Rows 2
      Mounting Type Surface Mount
      Features Board Guide, Solder Retention
      Contact Finish Gold
      Contact Finish Thickness 10.0µin (0.25µm)
      Mated Stacking Heights 11mm, 12mm, 13mm, 14mm, 15mm, 16mm
      Height Above Board 0.394″ (10.00mm)
      Base Product Number 52901
