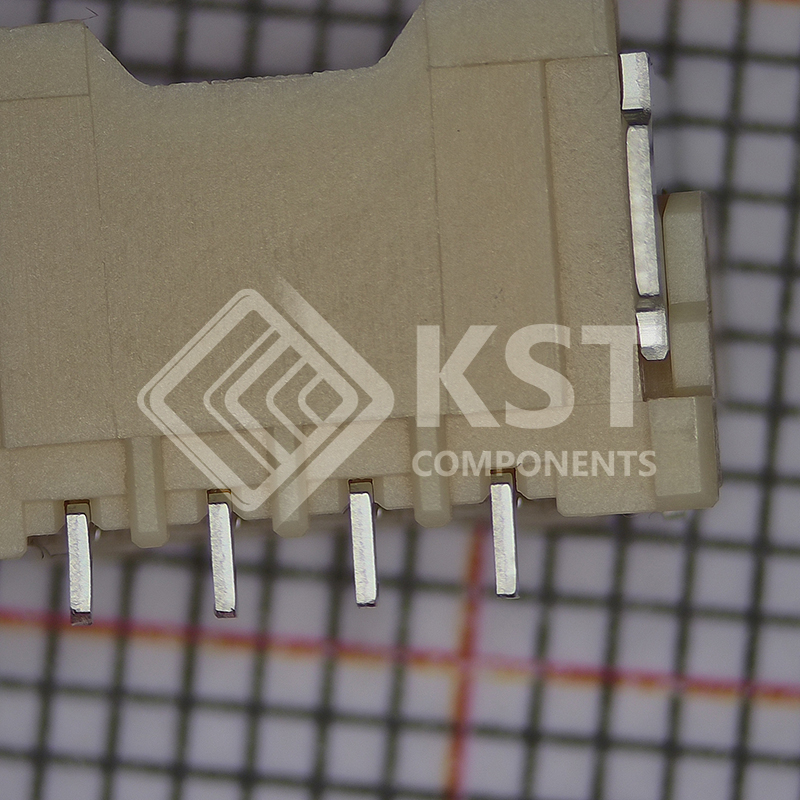

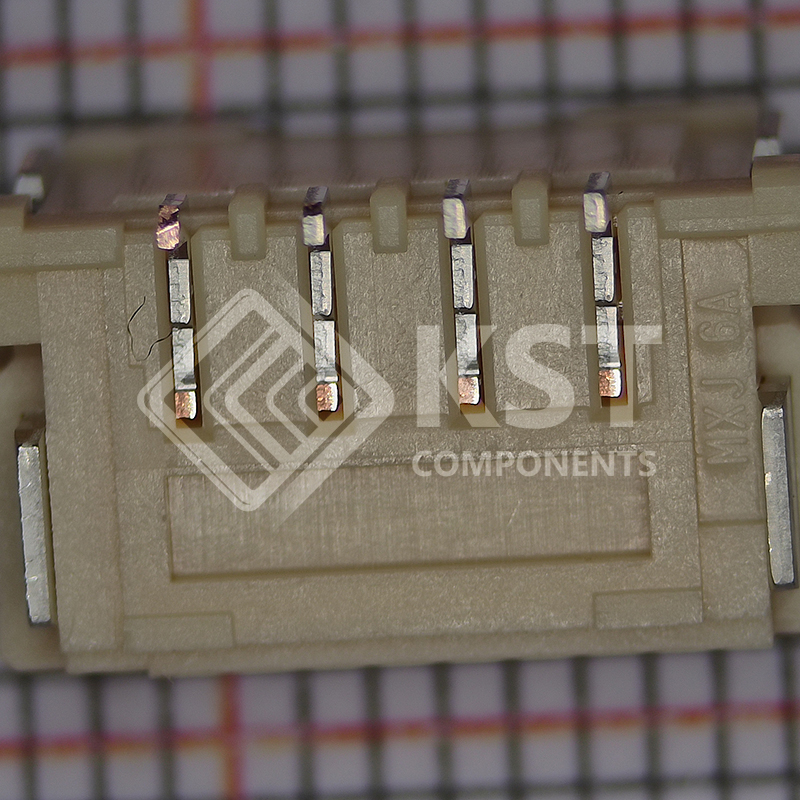

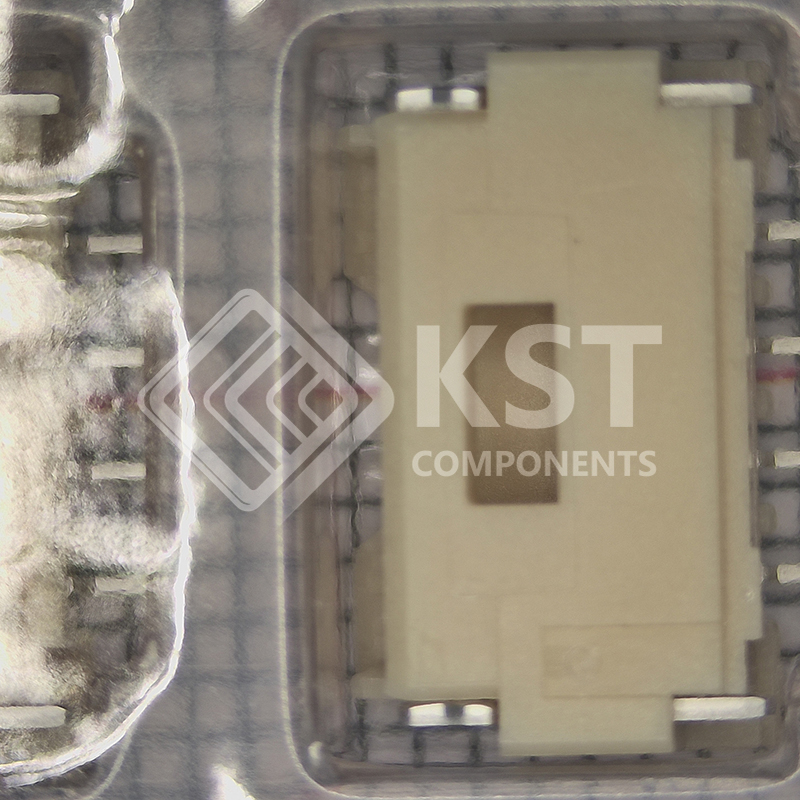

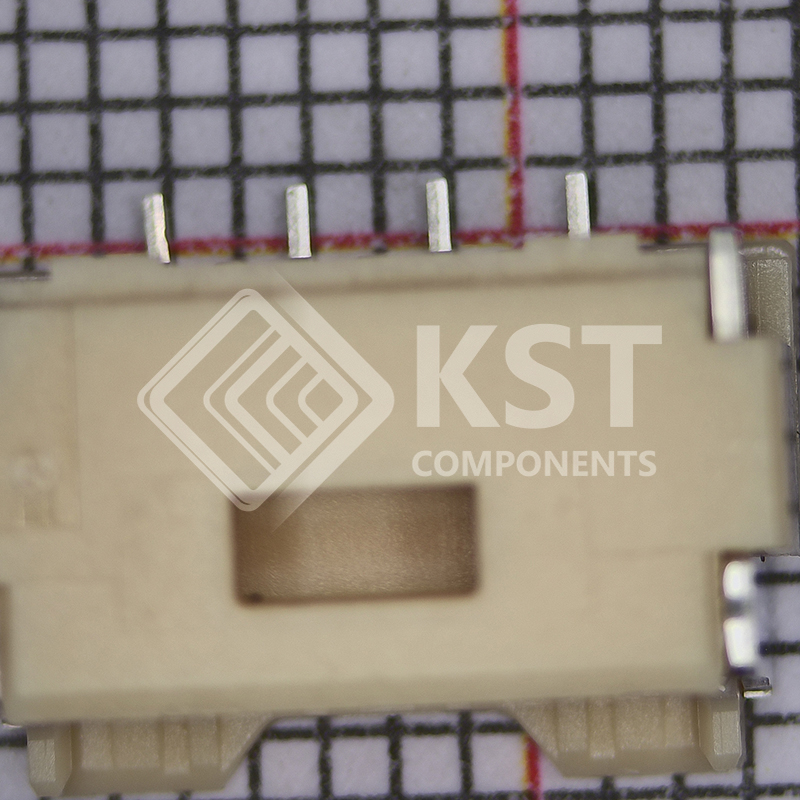

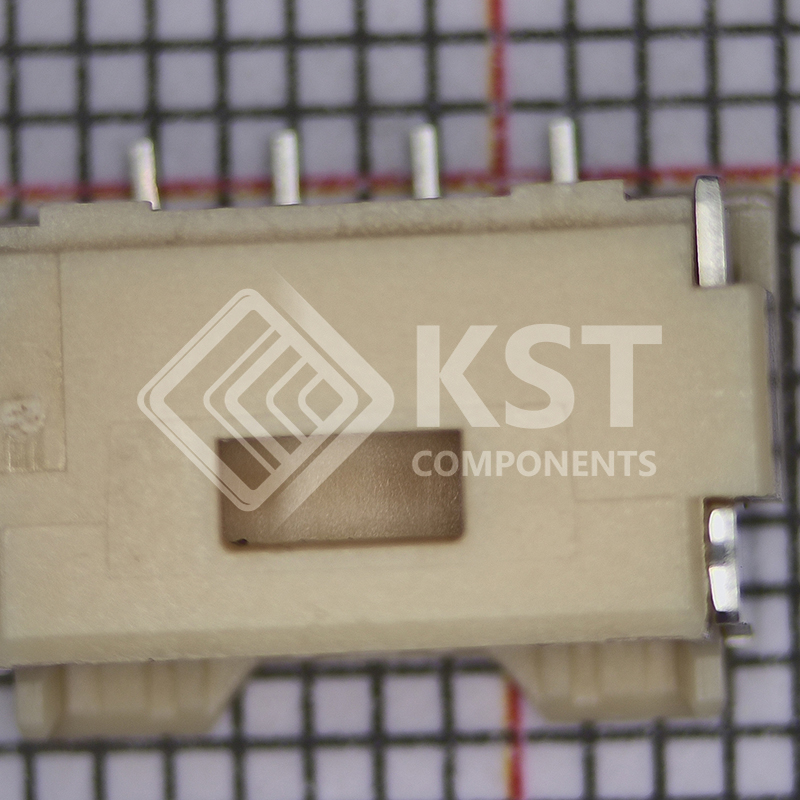

5024940470
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr
|
Molex
|
|
|
Series
|
CLIK-Mate 502494
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Receptacle
|
|
|
Contact Type
|
Forked
|
|
|
Style
|
Board to Cable/Wire
|
|
|
Number of Positions
|
4
|
|
|
Number of Positions Loaded
|
All
|
|
|
Pitch – Mating
|
0.079″ (2.00mm)
|
|
|
Number of Rows
|
1
|
|
|
Row Spacing – Mating
|
–
|
|
|
Mounting Type
|
Surface Mount, Right Angle
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Latch Holder
|
|
|
Contact Finish – Mating
|
Tin
|
|
|
Contact Finish Thickness – Mating
|
39.4µin (1.00µm)
|
|
|
Insulation Color
|
Natural
|
|
|
Insulation Height
|
0.270″ (6.86mm)
|
|
|
Contact Length – Post
|
–
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Mated Stacking Heights
|
–
|
|
|
Ingress Protection
|
–
|
|
|
Features
|
Pick and Place, Solder Retention
|
|
|
Current Rating (Amps)
|
–
|
|
|
Voltage Rating
|
–
|
|
|
Applications
|
Automotive, General Purpose, Industrial, Lighting, Medical
|
|
|
Insulation Material
|
Resin
|
|
|
Contact Shape
|
–
|
|
|
Contact Material
|
Copper Alloy
|
|
|
Contact Finish Thickness – Post
|
39.4µin (1.00µm)
|
|
|
Base Product Number
|
502494
|
