436500200

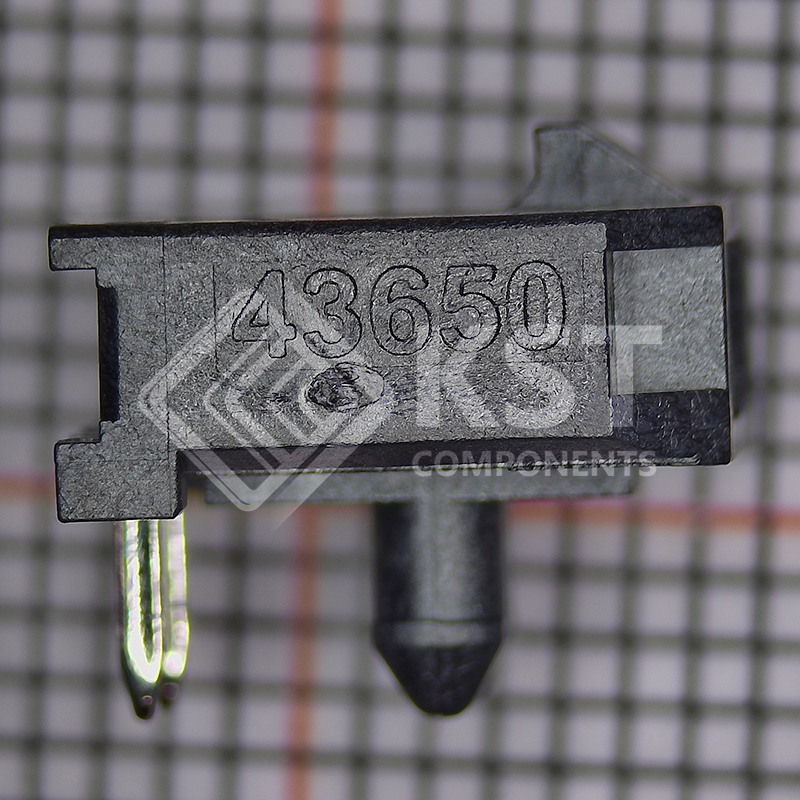

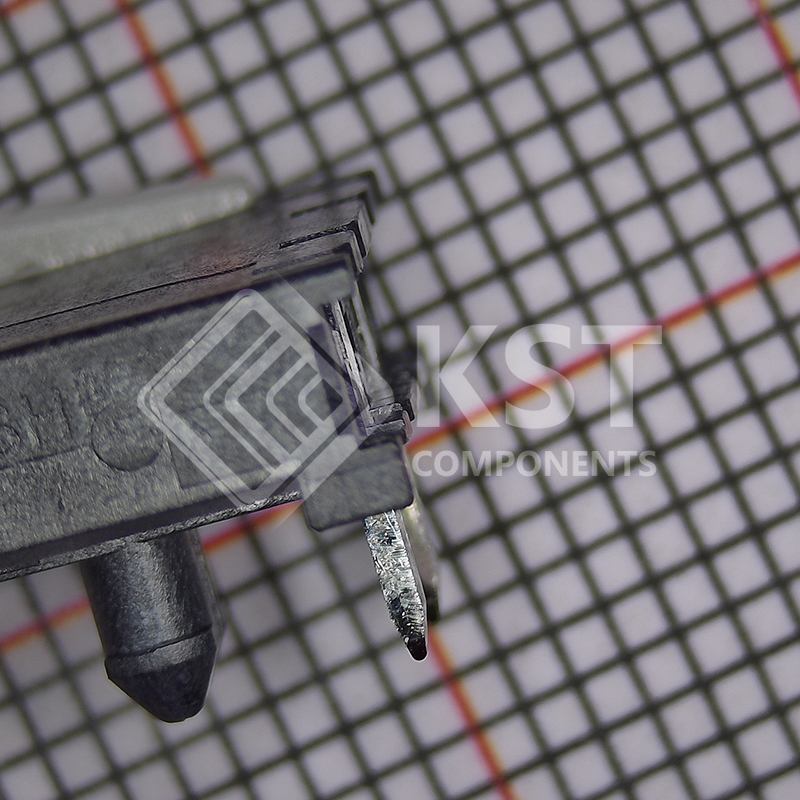

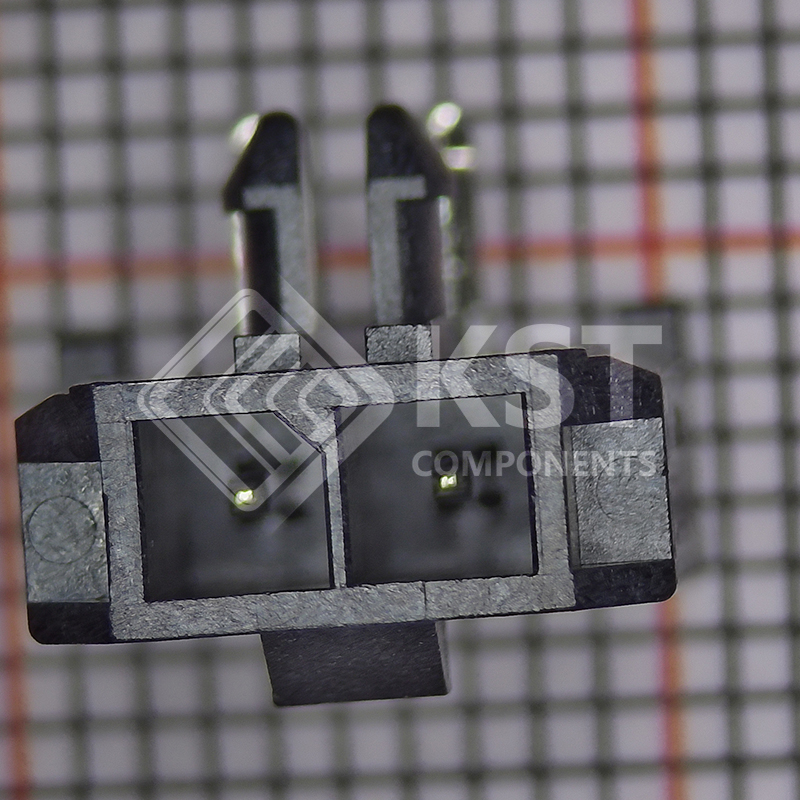

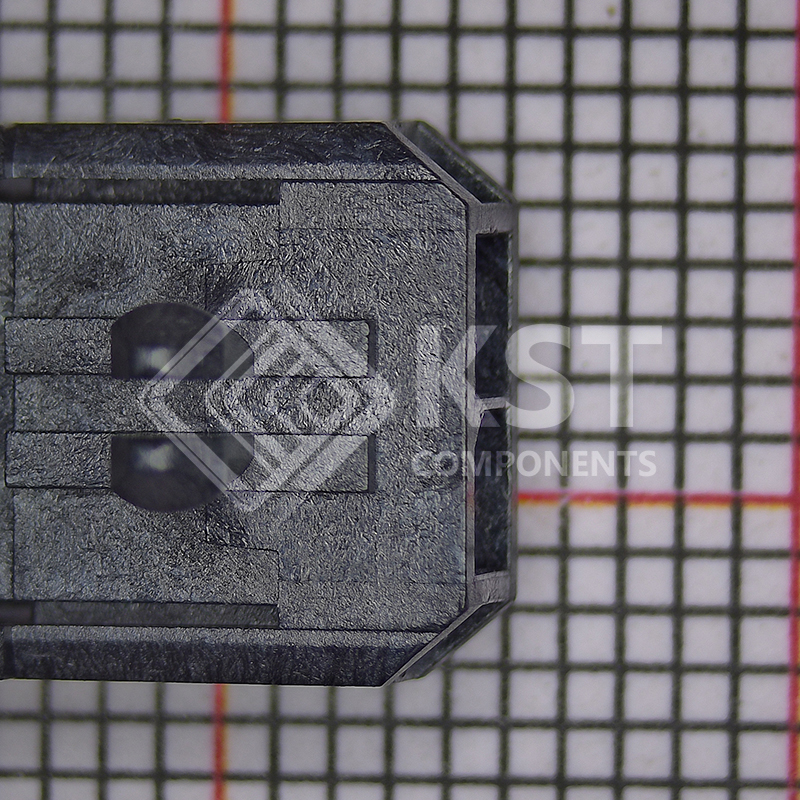

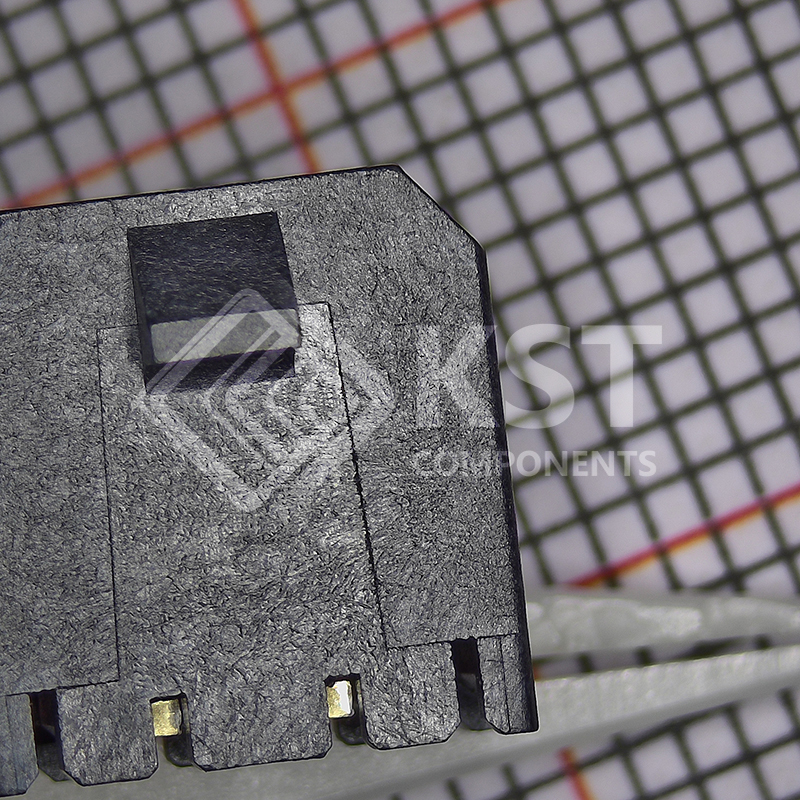

Connector Header Through Hole, Right Angle 2 position 0.118″ (3.00mm)


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Mfr Molex
    Series Micro-Fit 3.0 43650

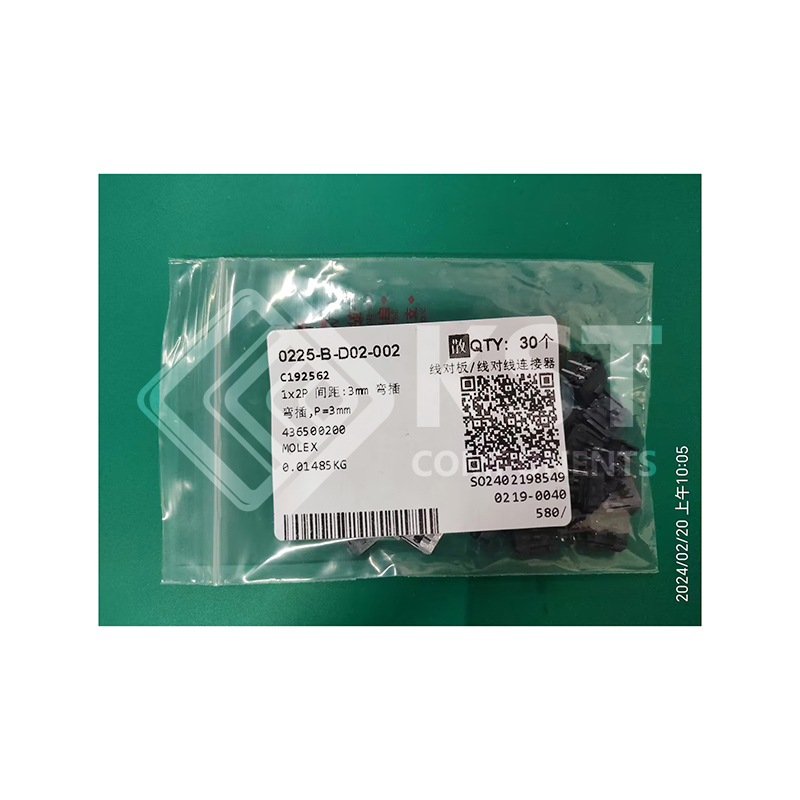

    Packaging Tray
    Part Status Active
    Connector Type Header
    Contact Type Male Pin
    Pitch – Mating 0.118″ (3.00mm)
    Number of Positions 2
    Number of Rows 1
    Row Spacing – Mating
    Number of Positions Loaded All
    Style Board to Cable/Wire
    Shrouding Shrouded – 4 Wall
    Mounting Type Through Hole, Right Angle
    Termination Solder
    Fastening Type Locking Ramp
    Contact Length – Mating
    Contact Length – Post 0.125″ (3.18mm)
    Overall Contact Length
    Insulation Height 0.172″ (4.37mm)
    Contact Shape Square
    Contact Finish – Mating Tin
    Contact Finish Thickness – Mating 60.0µin (1.52µm)
    Contact Finish – Post Tin
    Contact Material Brass
    Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
    Features Board Lock
    Operating Temperature
    Ingress Protection
    Material Flammability Rating UL94 V-0
    Insulation Color Black
    Current Rating (Amps)
    Voltage Rating
    Mated Stacking Heights
    Contact Finish Thickness – Post
    Applications General Purpose, Medical, Military, Telecommunications
    Base Product Number 43650
