2SD2704KT146

TRANS NPN 20V 0.3A SMT3


Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Discrete Semiconductor Products
    Transistors
    Bipolar (BJT)
    Single
    Mfr
    Rohm Semiconductor
    Series

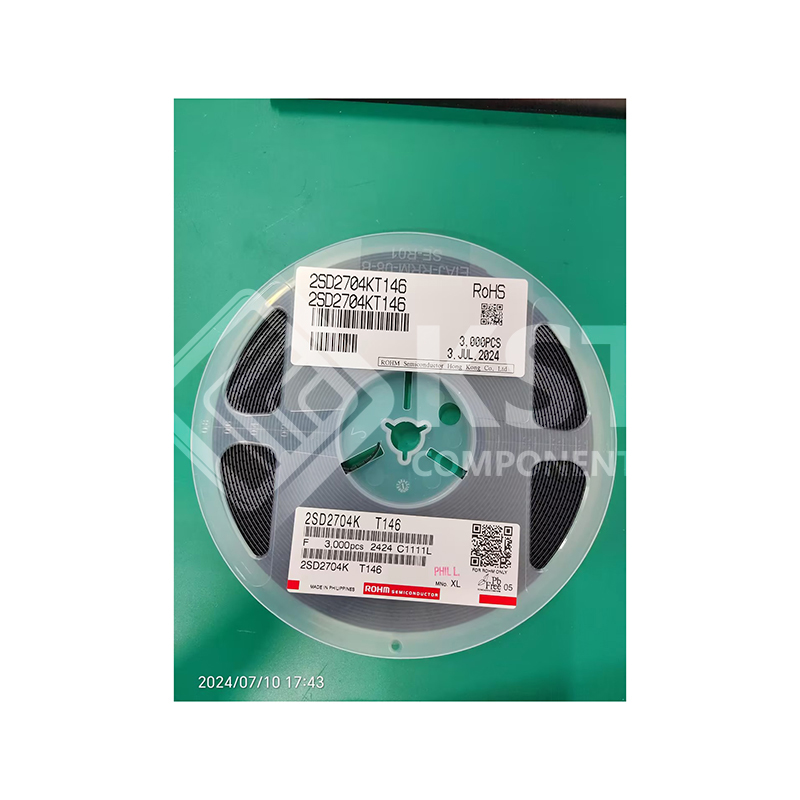

    Packaging
    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    Transistor Type
    NPN
    Current – Collector (Ic) (Max)
    300 mA
    Voltage – Collector Emitter Breakdown (Max)
    20 V
    Vce Saturation (Max) @ Ib, Ic
    100mV @ 3mA, 30mA
    Current – Collector Cutoff (Max)
    100nA (ICBO)
    DC Current Gain (hFE) (Min) @ Ic, Vce
    820 @ 4ma, 2V
    Power – Max
    200 mW
    Frequency – Transition
    35MHz
    Operating Temperature
    150°C (TJ)
    Mounting Type
    Surface Mount
    Package / Case
    TO-236-3, SC-59, SOT-23-3
    Supplier Device Package
    SMT3
    Base Product Number
    2SD2704
