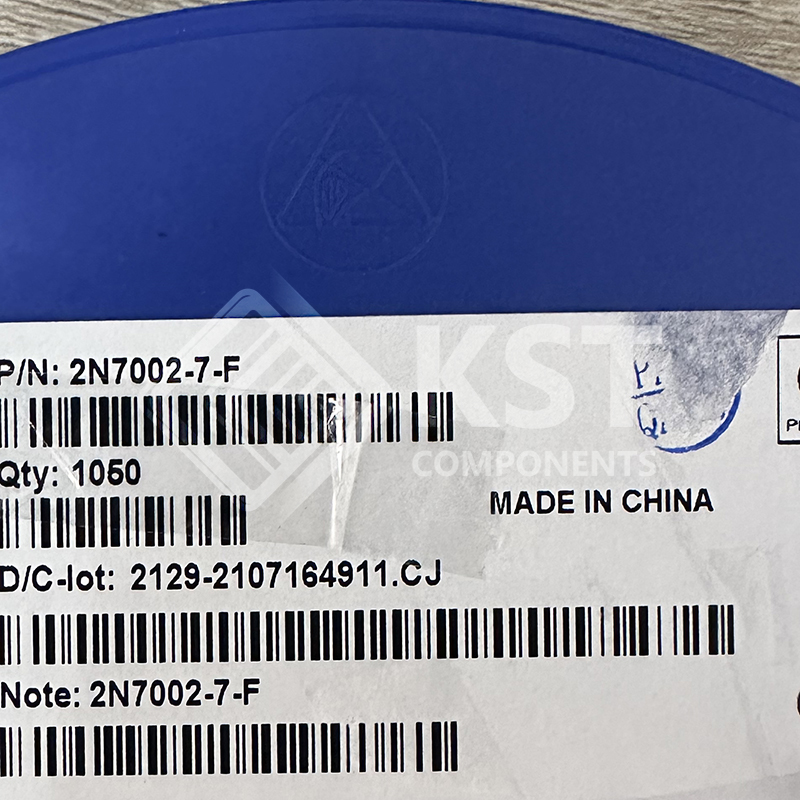

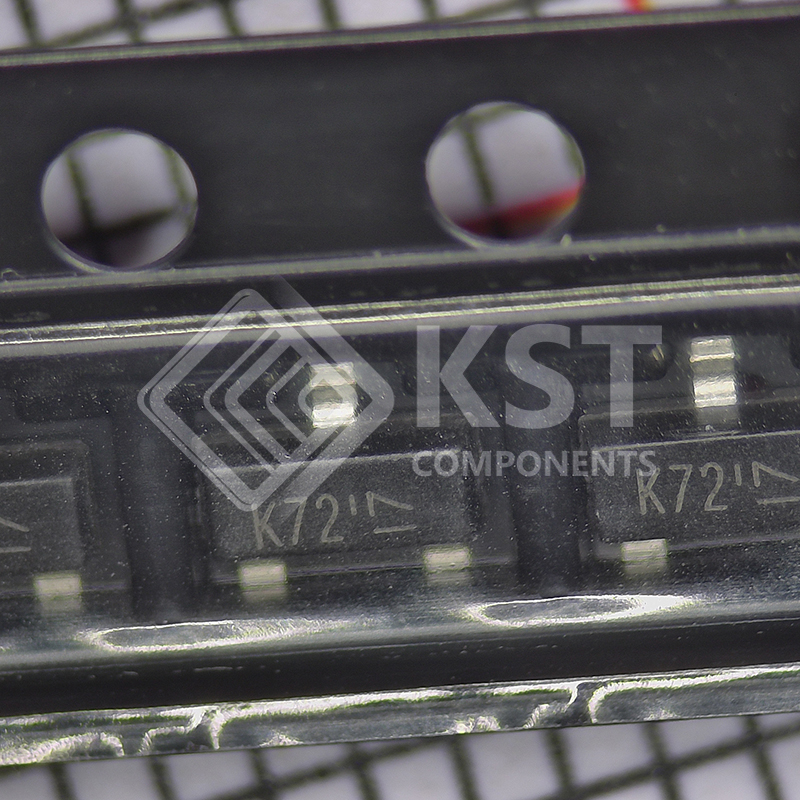

2N7002-7-F
INQUIRY ONLINE
|
Category
|
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single
|
|
|
Mfr
|
Diodes Incorporated
|
|
|
Series
|
–
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
FET Type
|
N-Channel
|
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
|
Current – Continuous Drain (Id) @ 25°C
|
115mA (Ta)
|
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
5V, 10V
|
|
|
Rds On (Max) @ Id, Vgs
|
7.5Ohm @ 50mA, 5V
|
|
|
Vgs(th) (Max) @ Id
|
2.5V @ 250µA
|
|
|
Vgs (Max)
|
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
50 pF @ 25 V
|
|
|
FET Feature
|
–
|
|
|
Power Dissipation (Max)
|
370mW (Ta)
|
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type
|
Surface Mount
|
|
|
Supplier Device Package
|
SOT-23-3
|
|
|
Package / Case
|
TO-236-3, SC-59, SOT-23-3
|
|
|
Base Product Number
|
2N7002
|
