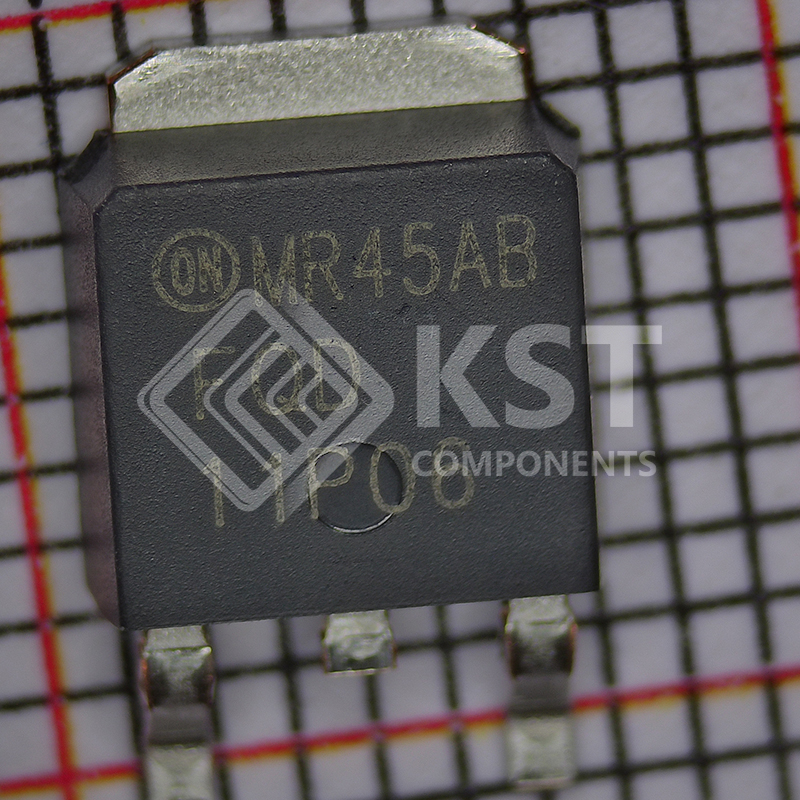

MOSFET P-CH 60V 9.4A DPAK

Category:

Download Details PDF

Notice:

In stock will ship in 2 days. Real-time inventory pls confirm with us.

INQUIRY ONLINE




    SPECIFICATION

    Category
    Discrete Semiconductor Products
    Transistors
    FETs, MOSFETs
    Single
    Mfr
    onsemi
    Series
    QFET®

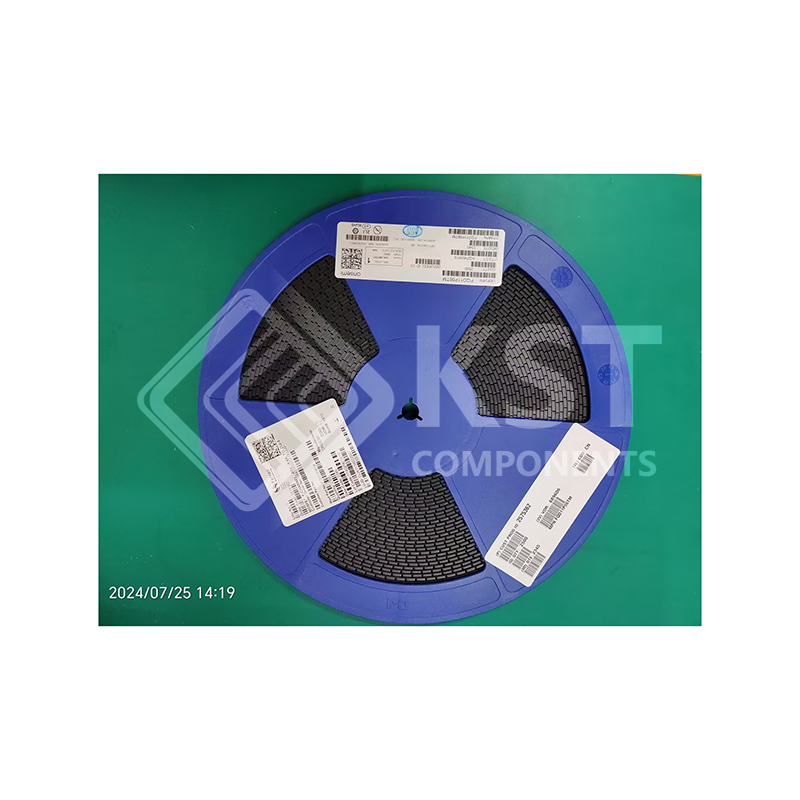

    Packaging

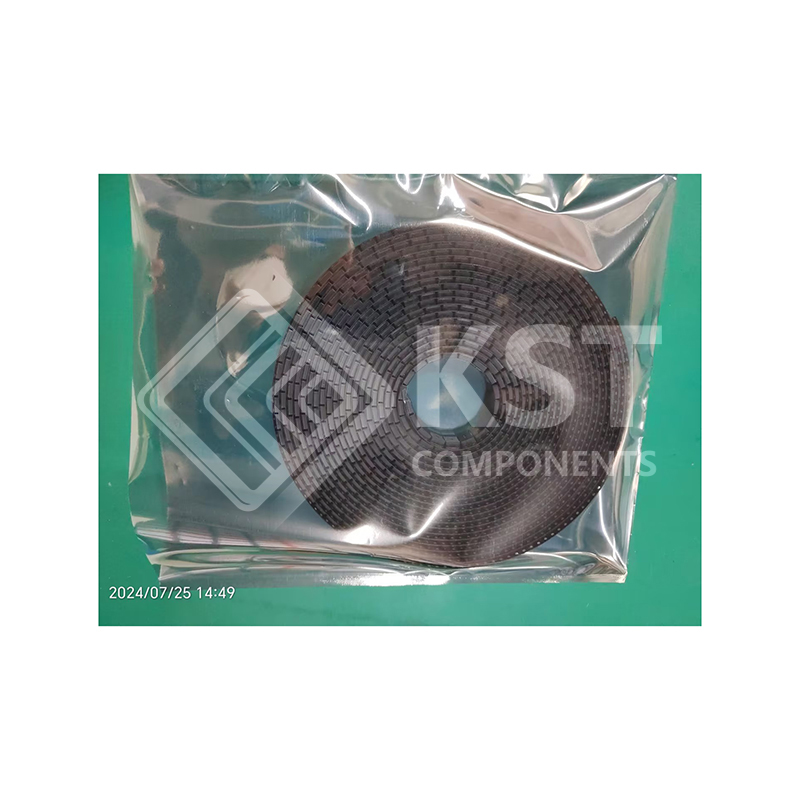

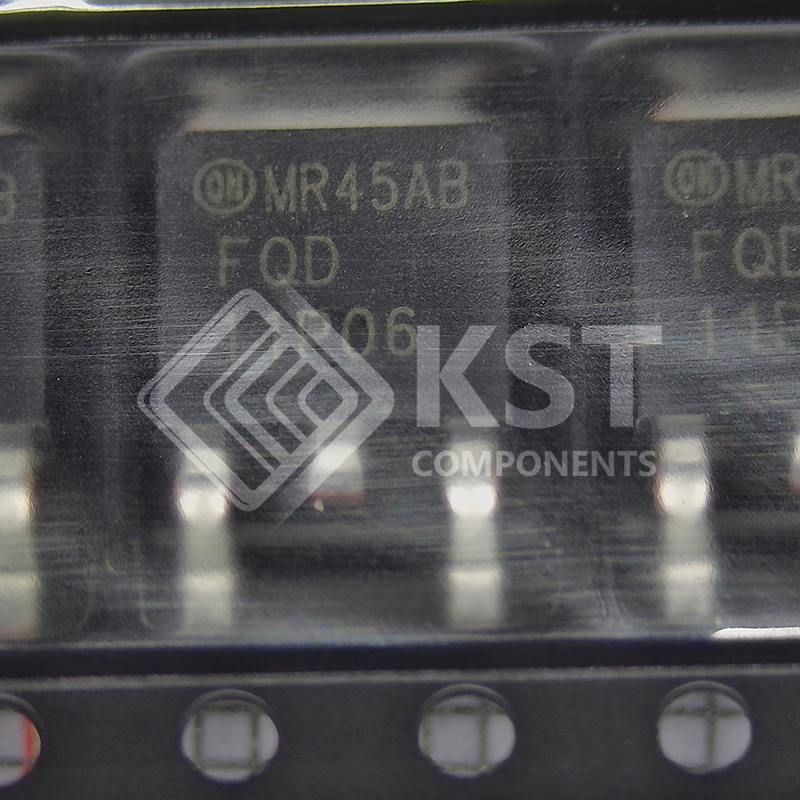

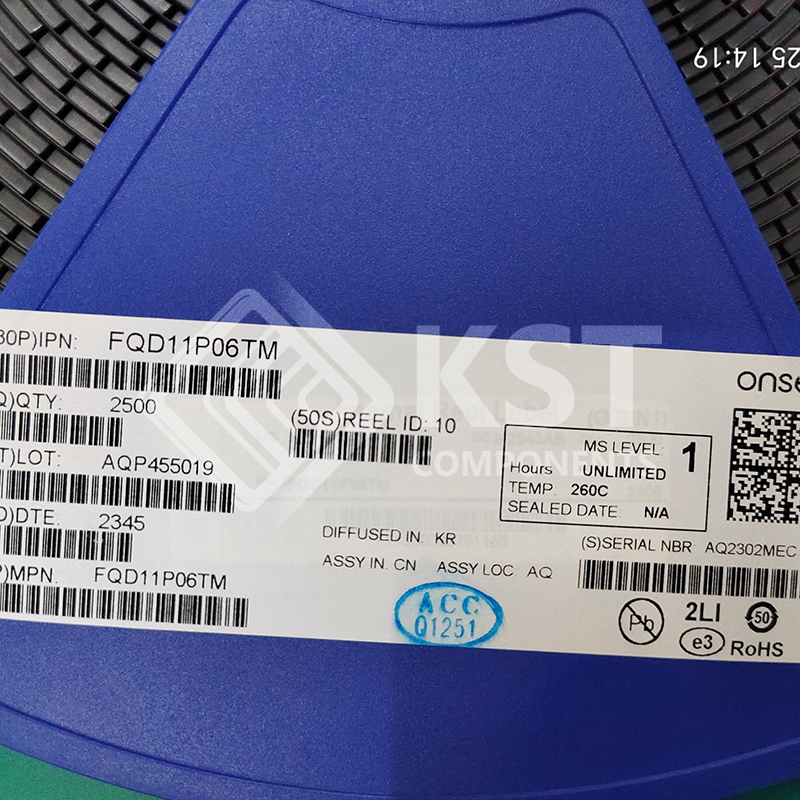

    Tape & Reel (TR)
    Cut Tape (CT)
    Digi-Reel®
    Part Status
    Active
    FET Type
    P-Channel
    Technology
    MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss)
    60 V
    Current – Continuous Drain (Id) @ 25°C
    9.4A (Tc)
    Drive Voltage (Max Rds On, Min Rds On)
    10V
    Rds On (Max) @ Id, Vgs
    185mOhm @ 4.7A, 10V
    Vgs(th) (Max) @ Id
    4V @ 250µA
    Gate Charge (Qg) (Max) @ Vgs
    17 nC @ 10 V
    Vgs (Max)
    ±30V
    Input Capacitance (Ciss) (Max) @ Vds
    550 pF @ 25 V
    FET Feature
    Power Dissipation (Max)
    2.5W (Ta), 38W (Tc)
    Operating Temperature
    -55°C ~ 150°C (TJ)
    Mounting Type
    Surface Mount
    Supplier Device Package
    TO-252AA
    Package / Case

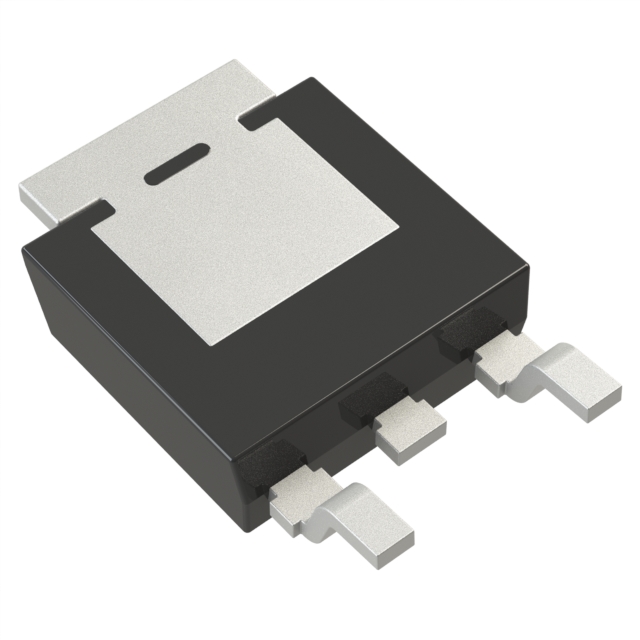

    TO-252-3, DPAK (2 Leads + Tab), SC-63
    Base Product Number
    FQD11P06
