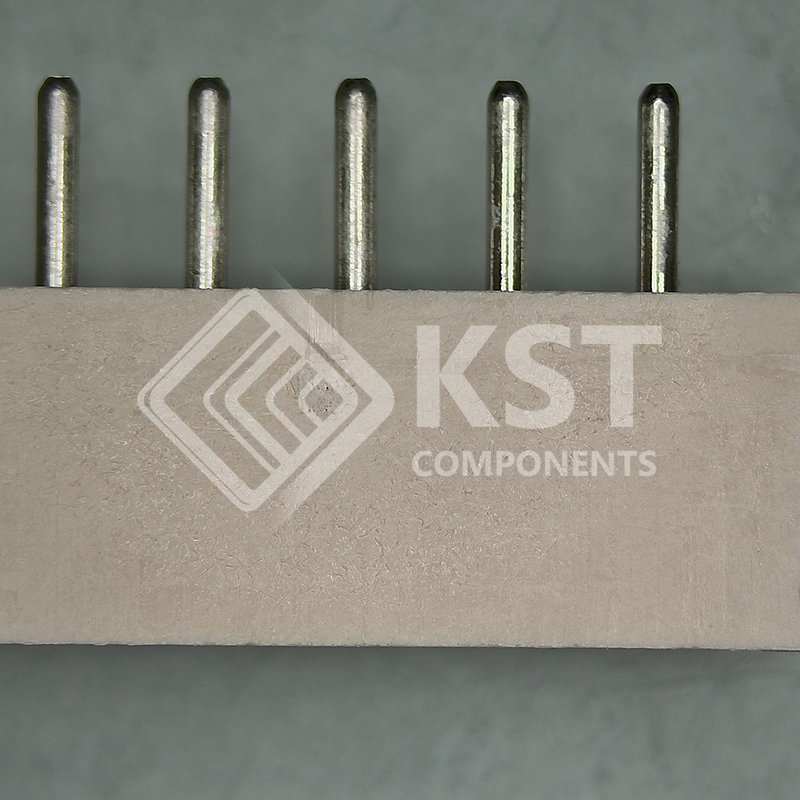

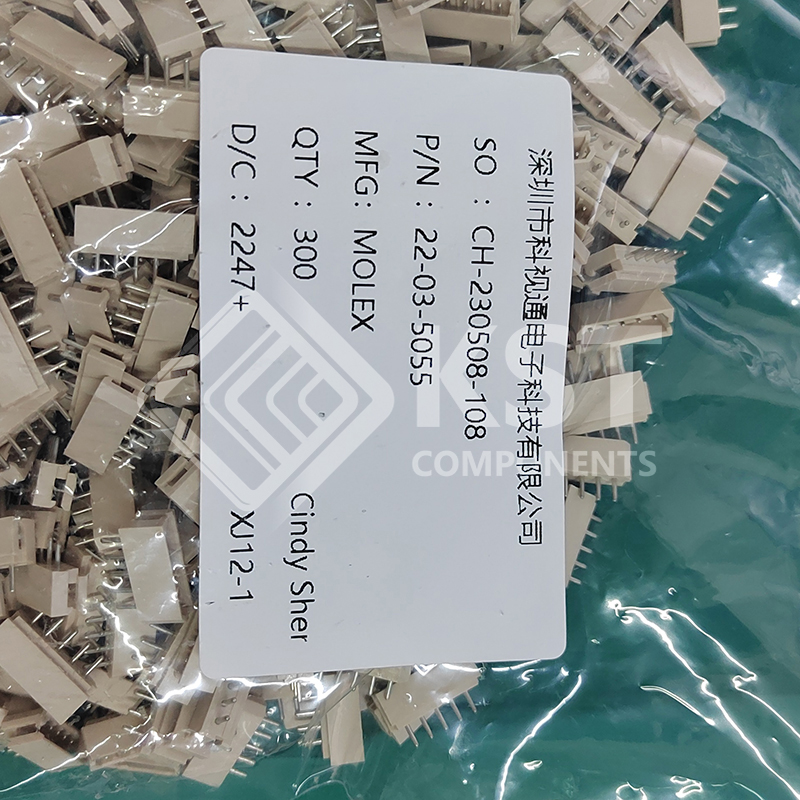

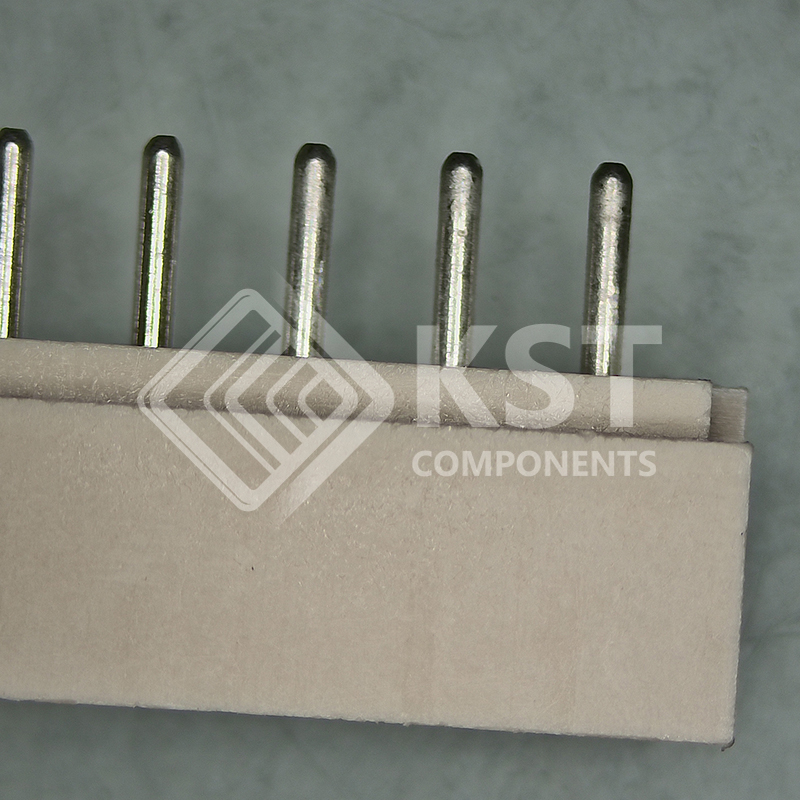

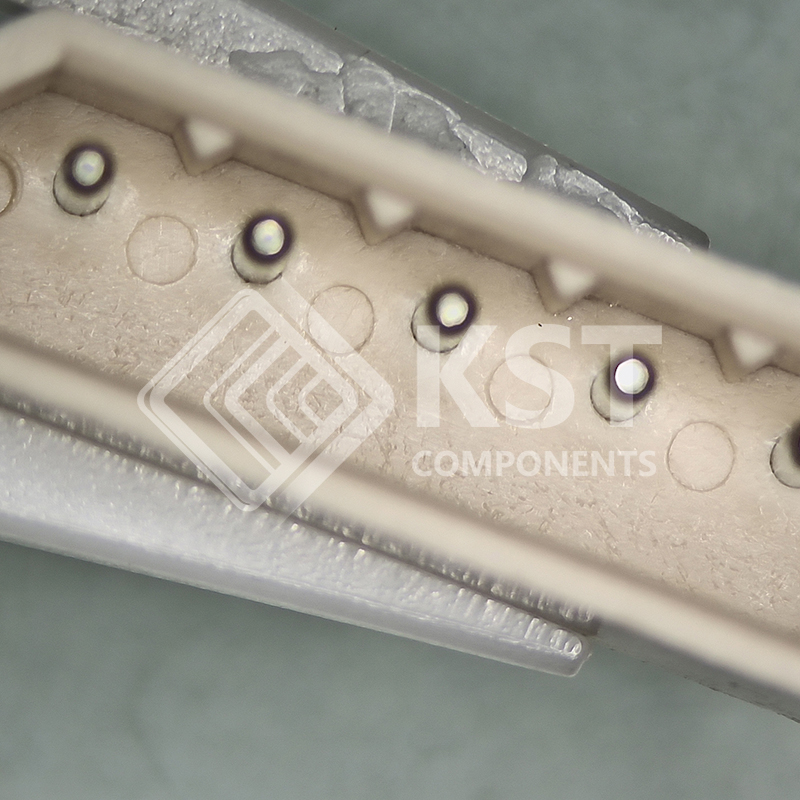

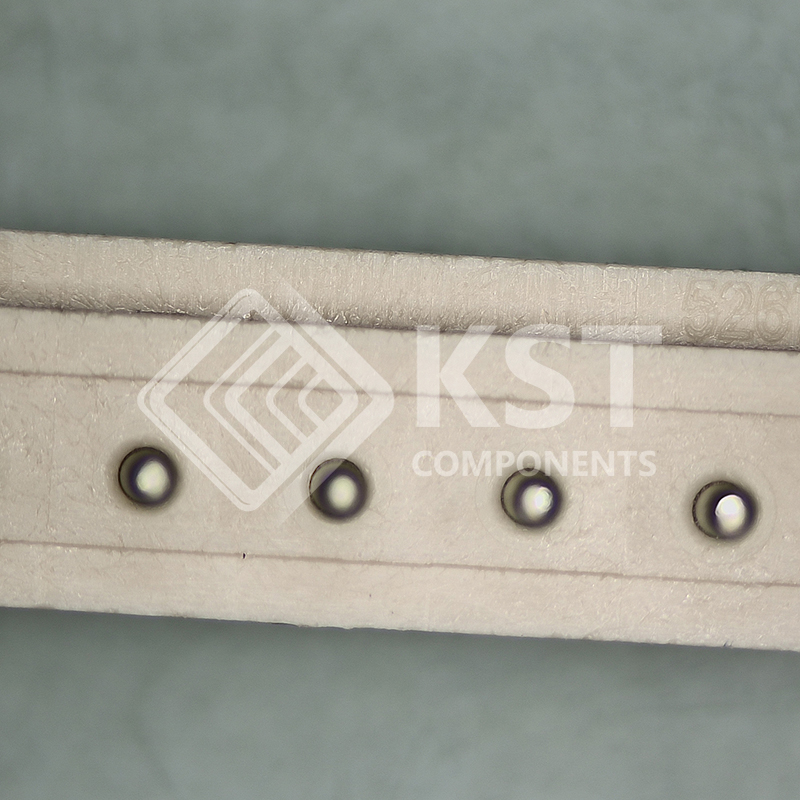

22-03-5055
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr
|
Molex
|
|
|
Series
|
Mini-SPOX 5267
|
|
|
Packaging
|
Bulk
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Header
|
|
|
Contact Type
|
Male Pin
|
|
|
Pitch – Mating
|
0.098″ (2.50mm)
|
|
|
Number of Positions
|
5
|
|
|
Number of Rows
|
1
|
|
|
Row Spacing – Mating
|
–
|
|
|
Number of Positions Loaded
|
All
|
|
|
Style
|
Board to Cable/Wire
|
|
|
Shrouding
|
Shrouded – 4 Wall
|
|
|
Mounting Type
|
Through Hole
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Detent Lock
|
|
|
Contact Length – Mating
|
0.138″ (3.50mm)
|
|
|
Contact Length – Post
|
0.138″ (3.50mm)
|
|
|
Overall Contact Length
|
0.350″ (8.89mm)
|
|
|
Insulation Height
|
0.232″ (5.90mm)
|
|
|
Contact Shape
|
Circular
|
|
|
Contact Finish – Mating
|
Tin
|
|
|
Contact Finish Thickness – Mating
|
–
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Contact Material
|
Brass
|
|
|
Insulation Material
|
Polyamide (PA66), Nylon 6/6, Glass Filled
|
|
|
Features
|
–
|
|
|
Operating Temperature
|
–
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Insulation Color
|
–
|
|
|
Current Rating (Amps)
|
–
|
|
|
Voltage Rating
|
–
|
|
|
Mated Stacking Heights
|
–
|
|
|
Contact Finish Thickness – Post
|
–
|
|
|
Applications
|
Automotive, General Purpose, Industrial, Medical, Telecommunications
|
|
|
Base Product Number
|
002203
|
