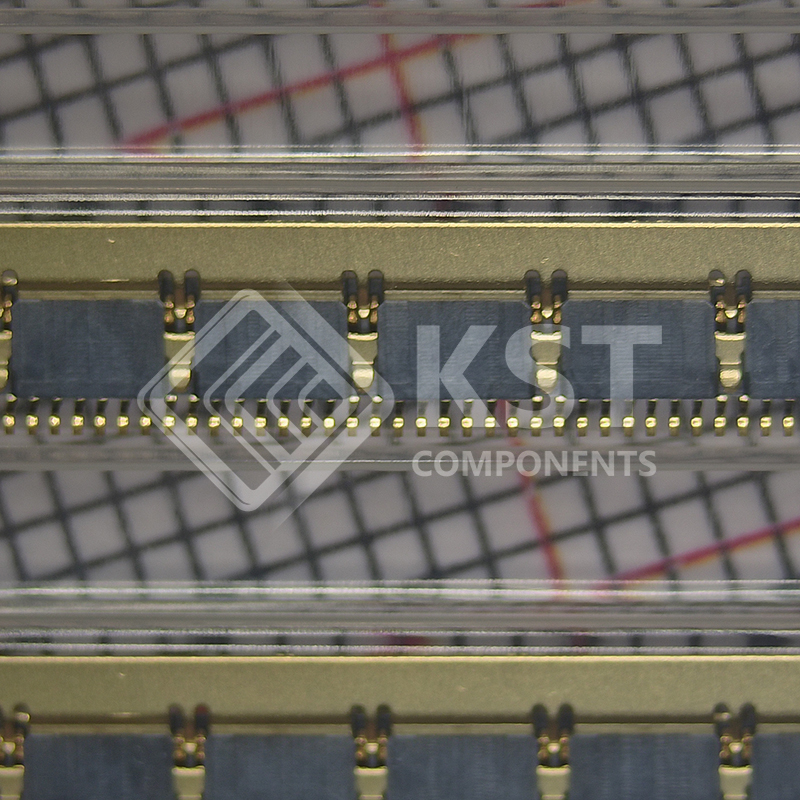

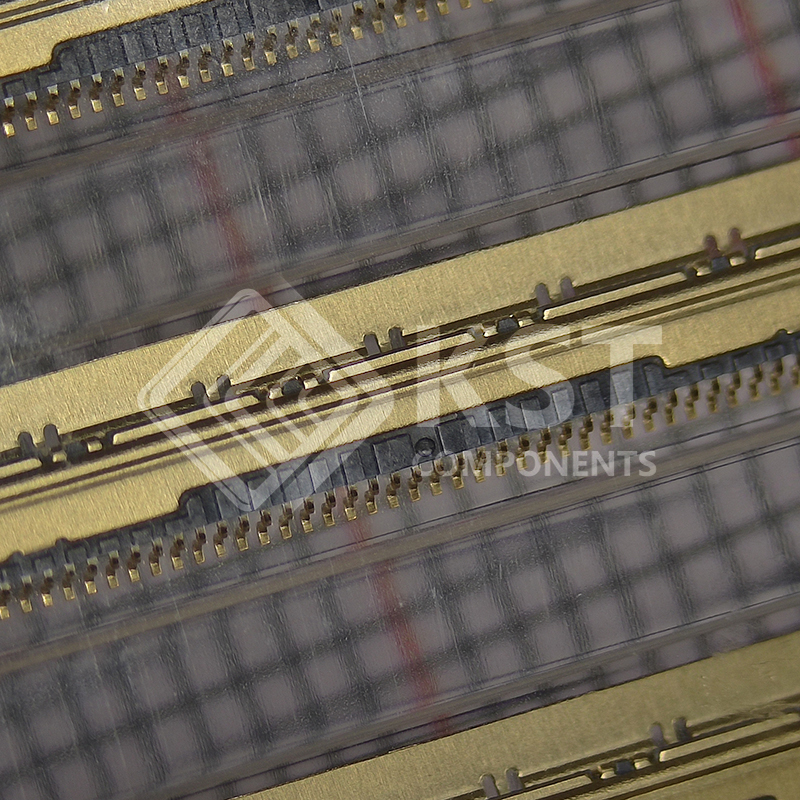

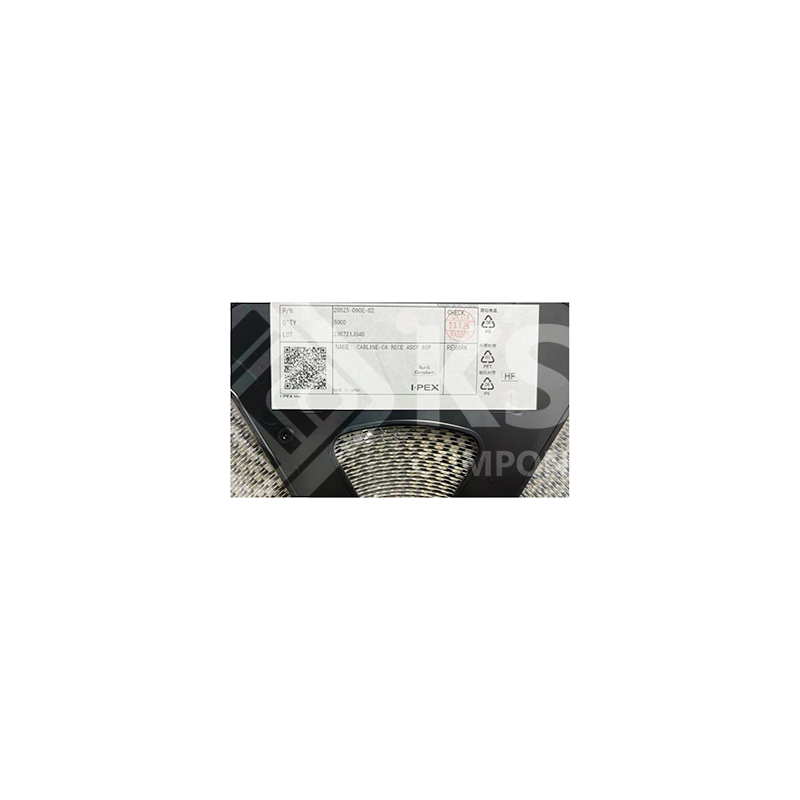

20525-060E-02
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr
|
I-PEX
|
|
|
Series
|
CABLINE®-CA
|
|
|
Packaging
|

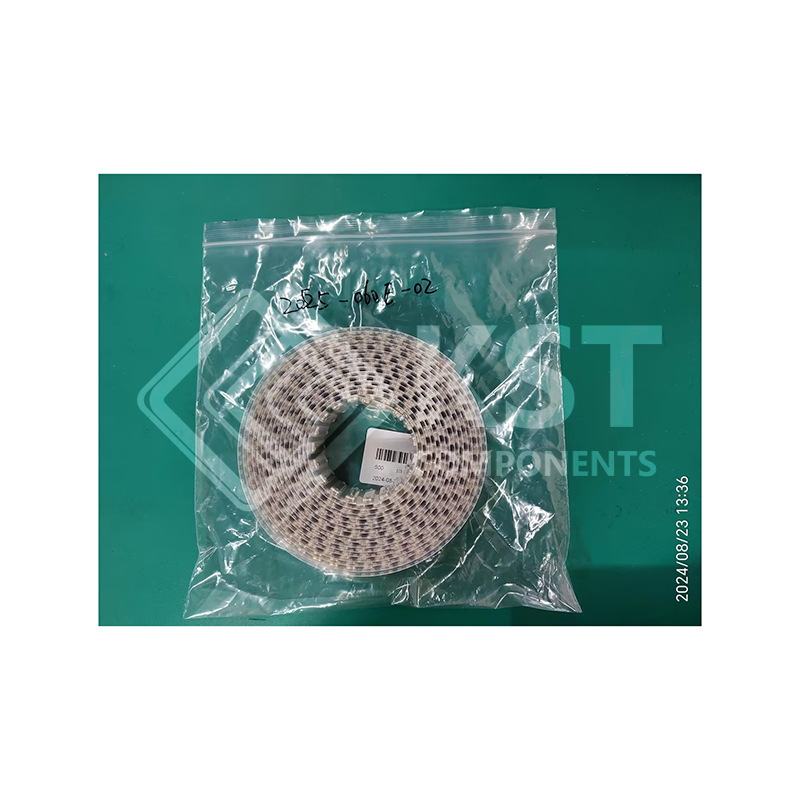

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Receptacle
|
|
|
Contact Type
|
Outer Shroud Contact
|
|
|
Style
|
Board to Cable/Wire
|
|
|
Number of Positions
|
60
|
|
|
Number of Positions Loaded
|
All
|
|
|
Pitch – Mating
|
0.016″ (0.40mm)
|
|
|
Number of Rows
|
1
|
|
|
Row Spacing – Mating
|
–
|
|
|
Mounting Type
|
Surface Mount, Right Angle
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Push-Pull
|
|
|
Contact Finish – Mating
|
Gold
|
|
|
Contact Finish Thickness – Mating
|
3.94µin (0.100µm)
|
|
|
Insulation Color
|
Black
|
|
|
Insulation Height
|
0.039″ (1.00mm)
|
|
|
Contact Length – Post
|
–
|
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Contact Finish – Post
|
Gold
|
|
|
Mated Stacking Heights
|
–
|
|
|
Ingress Protection
|
–
|
|
|
Features
|
Solder Retention
|
|
|
Current Rating (Amps)
|
Varies by Wire Gauge
|
|
|
Voltage Rating
|
100VAC
|
|
|
Applications
|
–
|
|
|
Insulation Material
|
Liquid Crystal Polymer (LCP)
|
|
|
Contact Shape
|
Rectangular
|
|
|
Contact Material
|
Phosphor Bronze
|
|
|
Contact Finish Thickness – Post
|
1.25µin (0.032µm)
|
