2047110001
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
USB, DVI, HDMI Connectors
USB, DVI, HDMI Connector Assemblies
|
|
|
Manufacturer
|
Molex
|
|
|
Series
|
204711
|
|
|

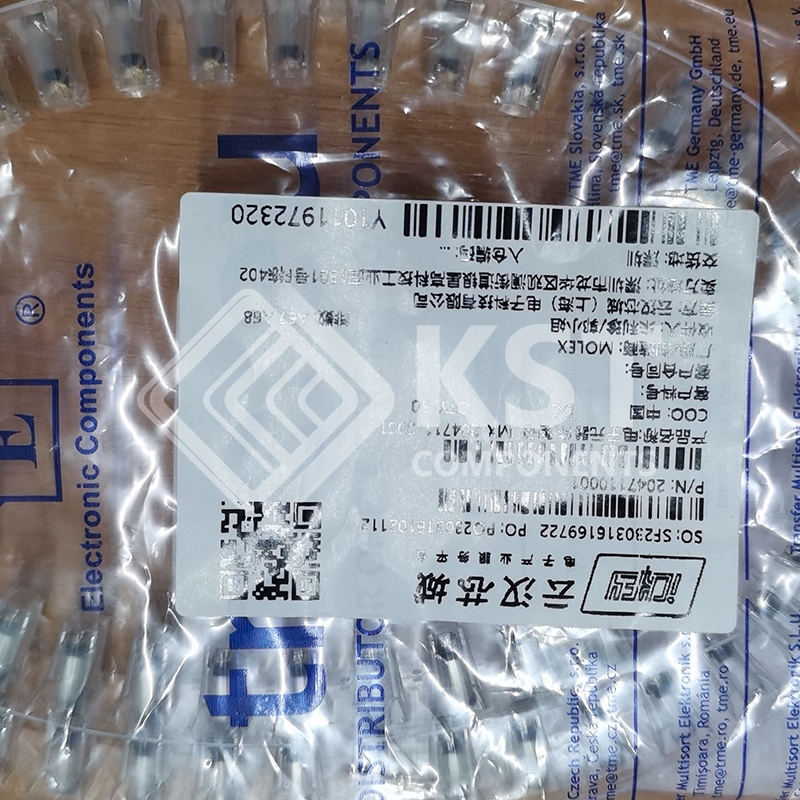

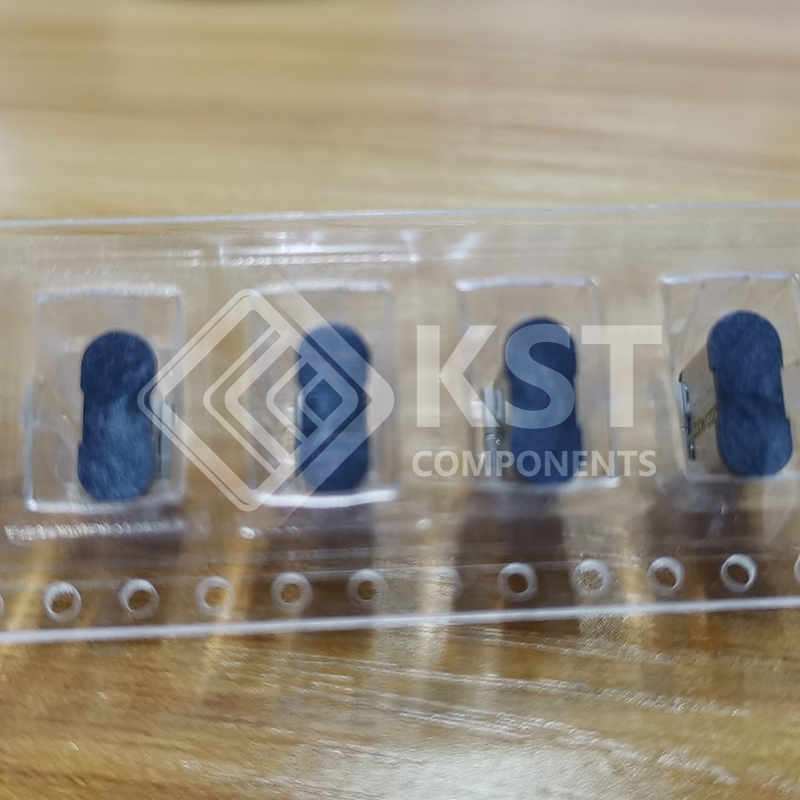

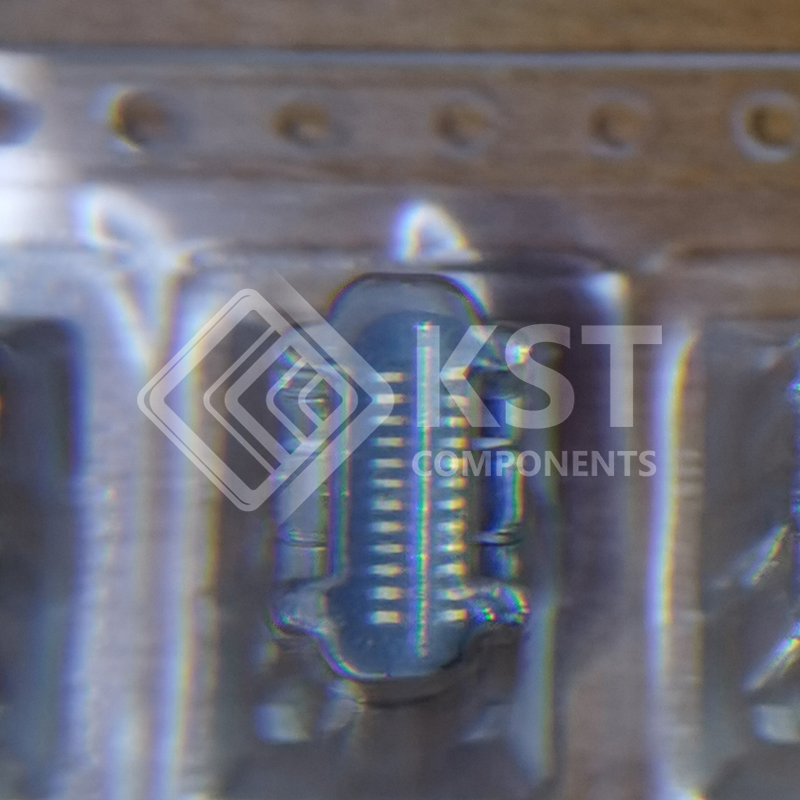

Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Active
|
|
|

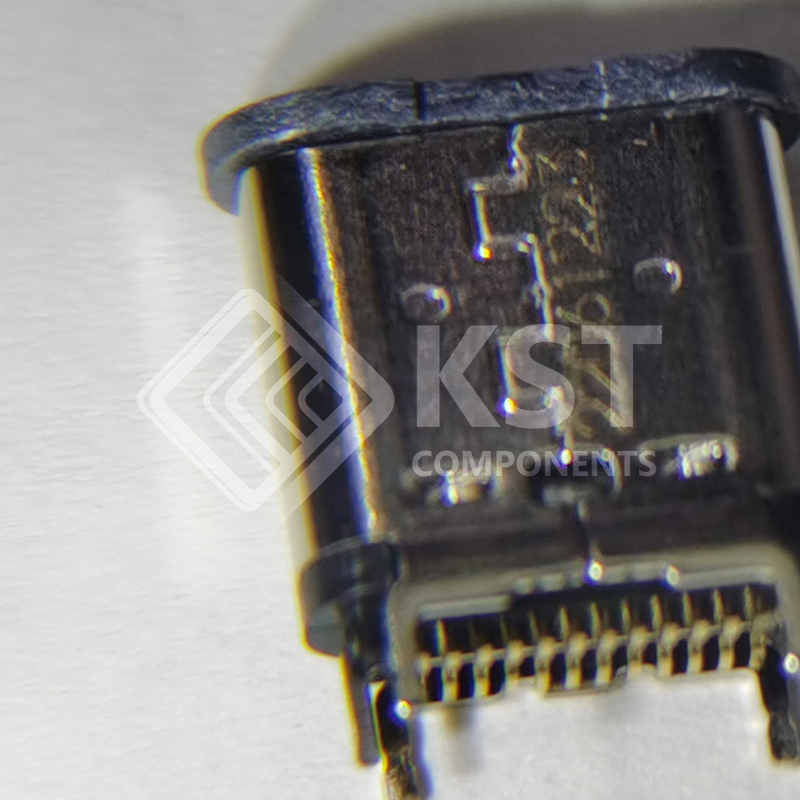

Connector Type
|
USB-C (USB TYPE-C)
|
|
|
Number of Contacts
|
24
|
|
|
Gender
|
Receptacle
|
|
|
Specifications
|
USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
|
|
|
Mounting Type
|
Surface Mount, Through Hole
|
|
|
Mounting Feature
|
Vertical
|
|
|
Termination
|
Solder
|
|
|
Features
|
Board Lock, Pick and Place Cap
|
|
|
Ingress Protection
|
–
|
|
|
Operating Temperature
|
-30°C ~ 85°C
|
|
|
Number of Ports
|
1
|
|
|
Current Rating (Amps)
|
0.25A, 1.25A, 5A
|
|
|
Voltage – Rated
|
30VAC/DC
|
|
|
Mating Cycles
|
10000
|
|
|
Shielding
|
Shielded
|
|
|
Contact Finish
|
Gold
|
|
|
Shell/Shielding Material
|
Steel, Stainless
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Insulation Color
|
Black
|
|
|
Base Product Number
|
204711
|
