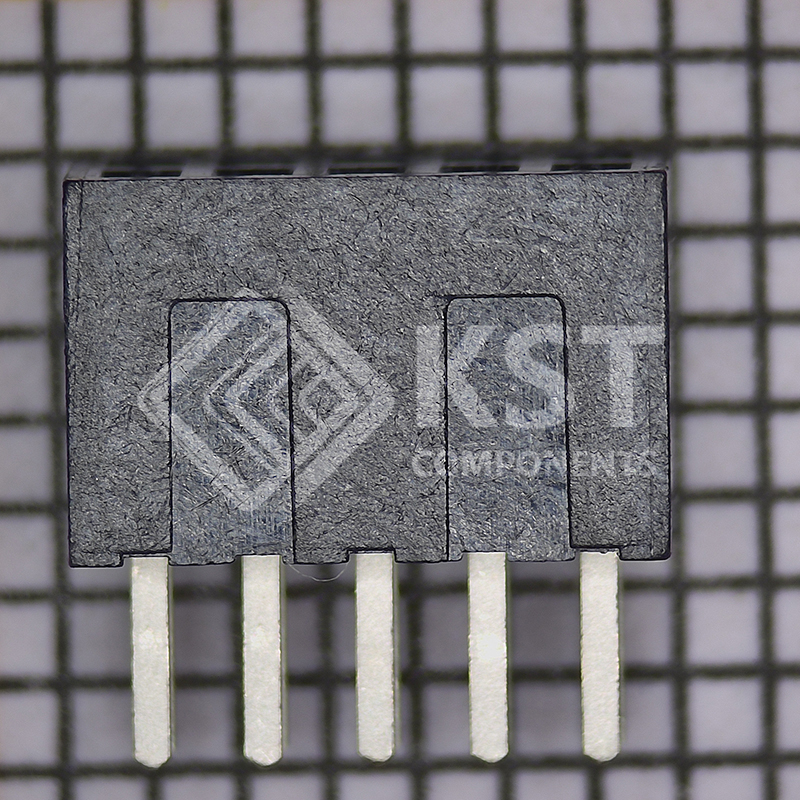

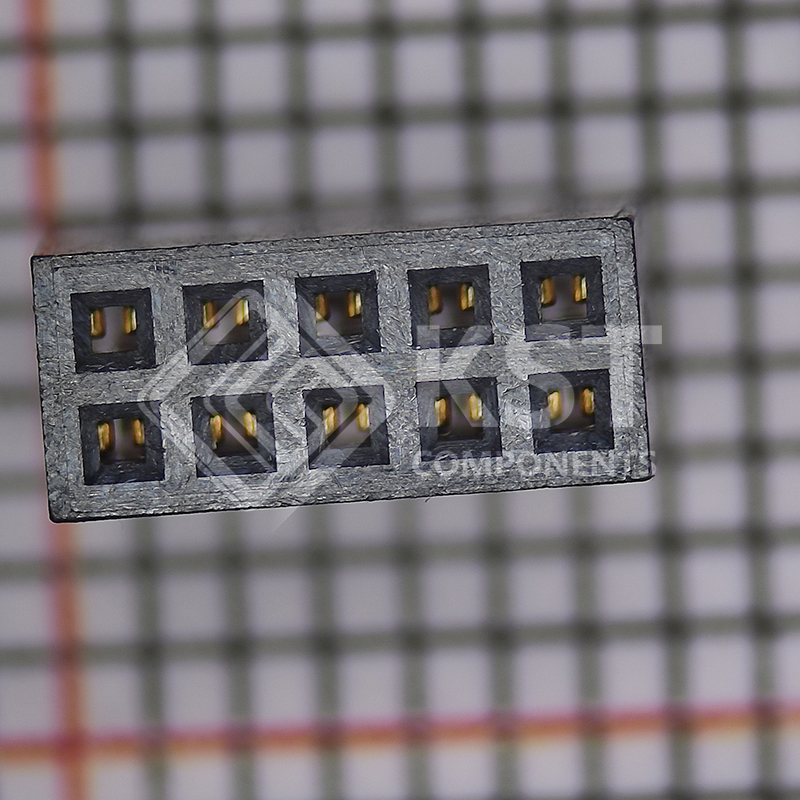

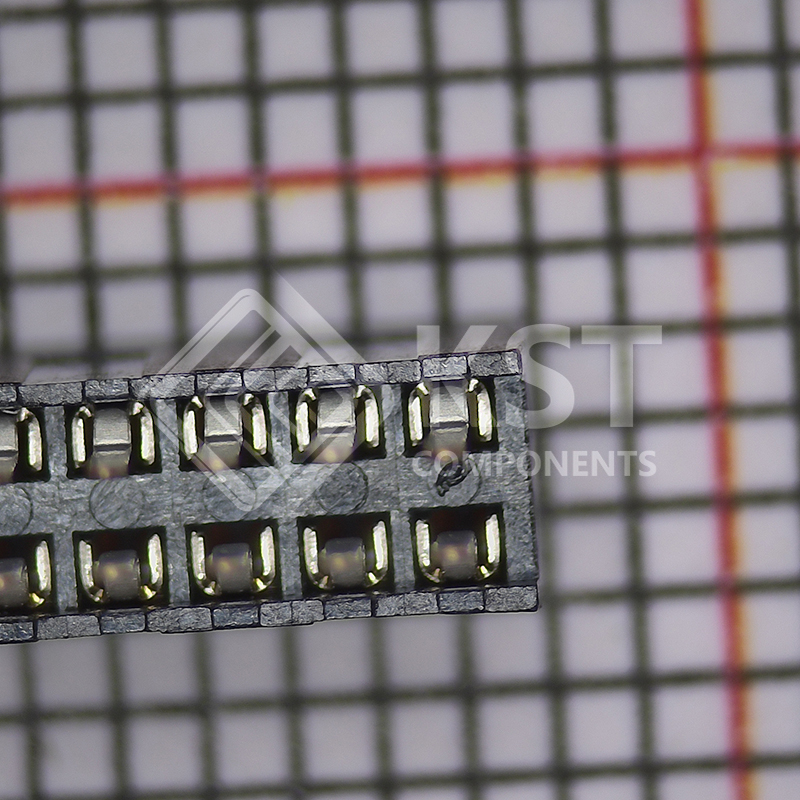

20021311-00010T4LF
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Receptacles, Female Sockets
|
|
|
Mfr
|
Amphenol ICC (FCI)
|
|
|
Series
|
Minitek127® 1.27mm
|
|
|

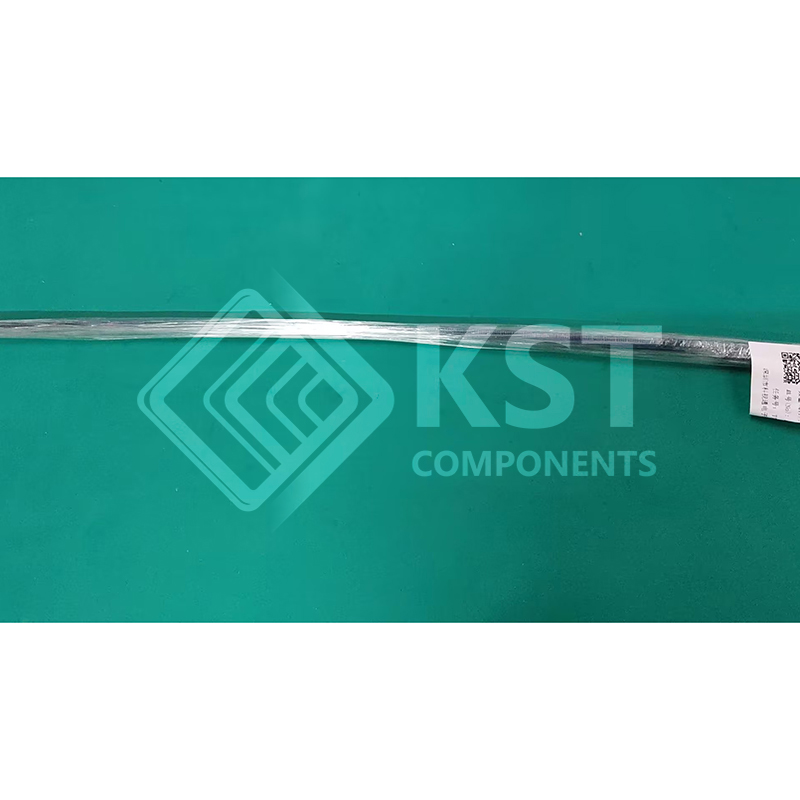

Packaging
|
Tube
|
|
|
Part Status
|
Active
|
|
|
Connector Type
|
Receptacle
|
|
|
Contact Type
|
Female Socket
|
|
|
Style
|
Board to Board
|
|
|
Number of Positions
|
10
|
|
|
Number of Positions Loaded
|
All
|
|
|
Pitch – Mating
|
0.050″ (1.27mm)
|
|
|
Number of Rows
|
2
|
|
|
Row Spacing – Mating
|
0.050″ (1.27mm)
|
|
|
Mounting Type
|
Through Hole
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
Push-Pull
|
|
|
Contact Finish – Mating
|
Gold
|
|
|
Contact Finish Thickness – Mating
|
10.0µin (0.25µm)
|
|
|
Insulation Color
|
Black
|
|
|
Insulation Height
|
0.173″ (4.40mm)
|
|
|
Contact Length – Post
|
0.094″ (2.40mm)
|
|
|
Operating Temperature
|
-40°C ~ 105°C
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Mated Stacking Heights
|
–
|
|
|
Ingress Protection
|
–
|
|
|
Features
|
–
|
|
|
Current Rating (Amps)
|
–
|
|
|
Voltage Rating
|
–
|
|
|
Applications
|
General Purpose, Industrial, Telecommunications
|
|
|
Insulation Material
|
Plastic
|
|
|
Contact Shape
|
Square
|
|
|
Contact Material
|
Phosphor Bronze
|
|
|
Contact Finish Thickness – Post
|
100.0µin (2.54µm)
|
|
|
Base Product Number
|
20021311
|
