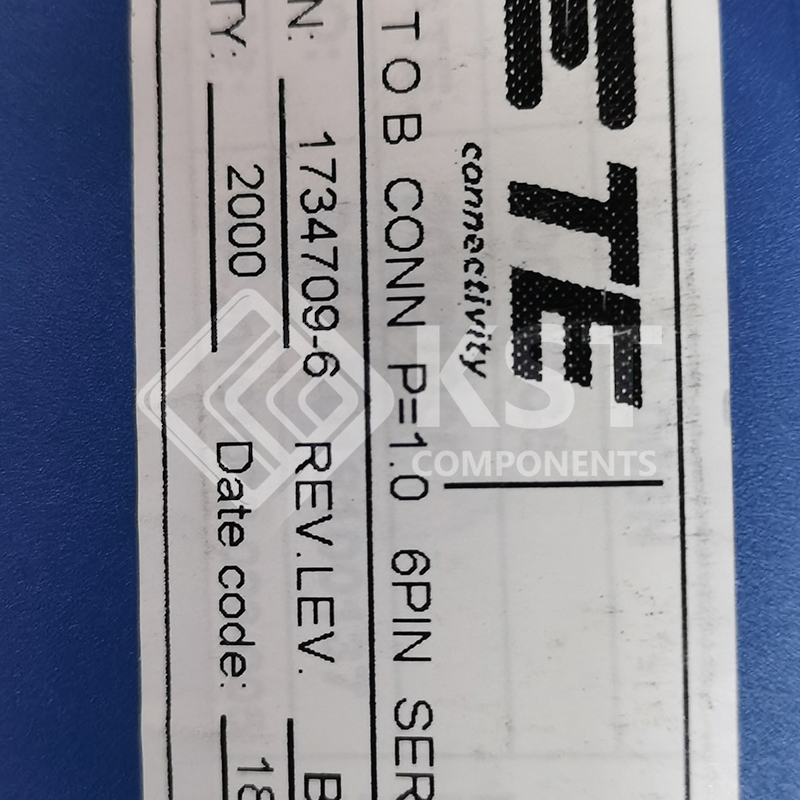

1734709-6
INQUIRY ONLINE
|
Category
|
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr
|
TE Connectivity AMP Connectors
|
|
|
Series
|
High Performance Interconnect (HPI)
|
|
|
Packaging
|

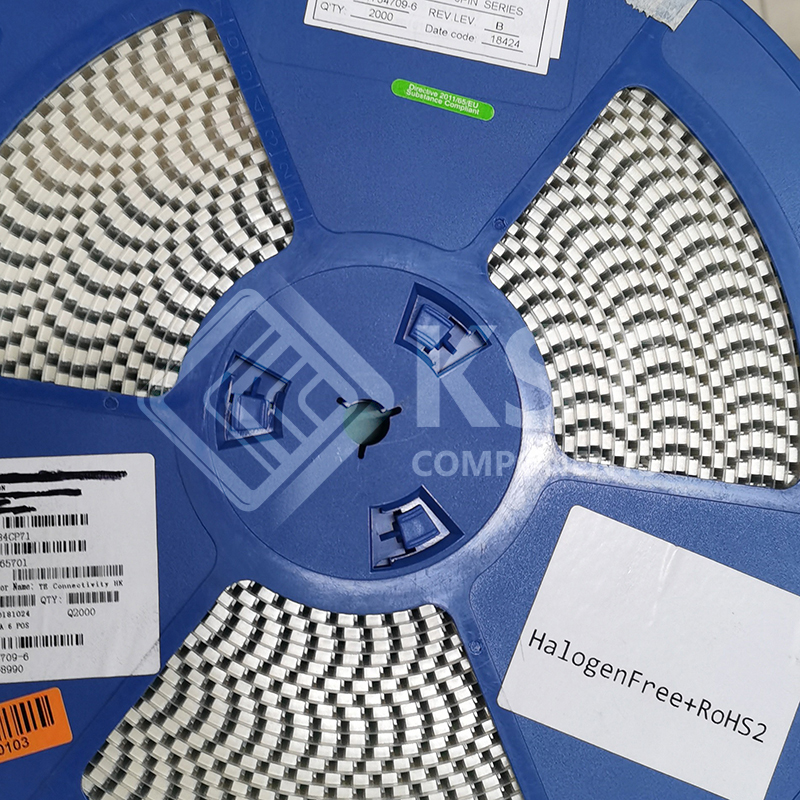

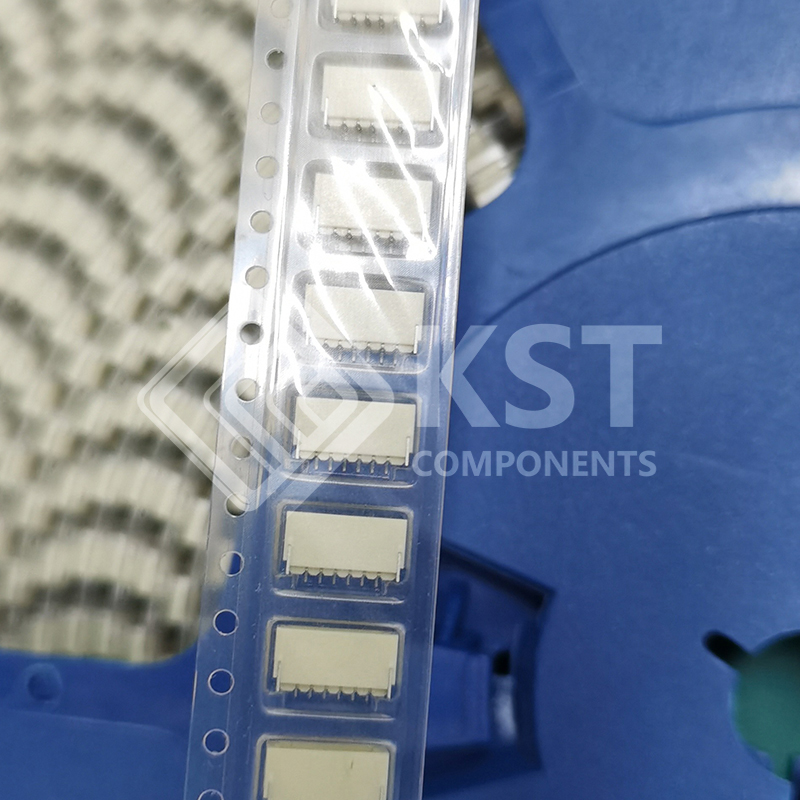

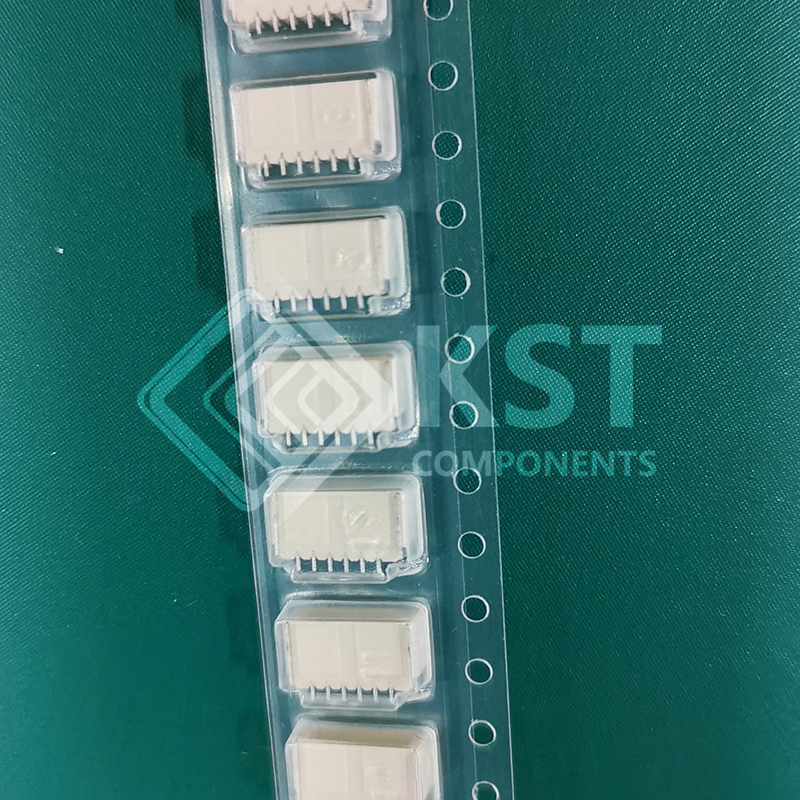

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status
|
Obsolete
|
|
|
Connector Type
|
Header
|
|
|
Contact Type
|
Male Pin
|
|
|
Pitch – Mating
|
0.039″ (1.00mm)
|
|
|
Number of Positions
|
6
|
|
|
Number of Rows
|
1
|
|
|
Row Spacing – Mating
|
–
|
|
|
Number of Positions Loaded
|
All
|
|
|
Style
|
Board to Cable/Wire
|
|
|
Shrouding
|
Shrouded – 4 Wall
|
|
|
Mounting Type
|
Surface Mount, Right Angle
|
|
|
Termination
|
Solder
|
|
|
Fastening Type
|
–
|
|
|
Contact Length – Mating
|
–
|
|
|
Contact Length – Post
|
–
|
|
|
Overall Contact Length
|
–
|
|
|
Insulation Height
|
0.114″ (2.90mm)
|
|
|
Contact Shape
|
Square
|
|
|
Contact Finish – Mating
|
Tin
|
|
|
Contact Finish Thickness – Mating
|
120.0µin (3.05µm)
|
|
|
Contact Finish – Post
|
Tin
|
|
|
Contact Material
|
Phosphor Bronze
|
|
|
Insulation Material
|
Thermoplastic, Glass Filled
|
|
|
Features
|
Solder Retention
|
|
|
Operating Temperature
|
-55°C ~ 105°C
|
|
|
Ingress Protection
|
–
|
|
|
Material Flammability Rating
|
UL94 V-0
|
|
|
Insulation Color
|
Natural
|
|
|
Current Rating (Amps)
|
1A
|
|
|
Voltage Rating
|
50V
|
|
|
Mated Stacking Heights
|
–
|
|
|
Contact Finish Thickness – Post
|
120.0µin (3.05µm)
|
|
|
Applications
|
Automotive, General Purpose, Industrial, Medical
|
|
|
Base Product Number
|
1734709
|
