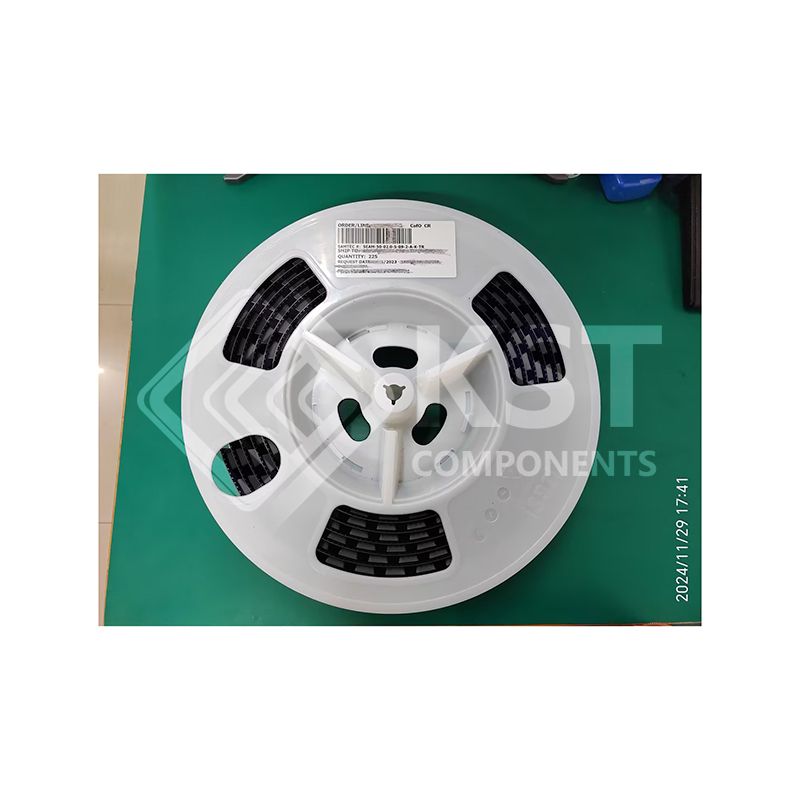

SEAM-50-02.0-S-08-2-A-K-TR
Part Number:
SEAM-50-02.0-S-08-2-A-K-TR
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
3DXTECH
Description:
CONN HD ARRAY PLUG 400P SMD GOLD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Samtec Inc.
|
|
|
Series |
SEARAY™ SEAM |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Connector Type |
High Density Array, Male
|
|
|
Number of Positions |
400
|
|
|
Pitch |
0.050" (1.27mm)
|
|
|
Number of Rows |
8
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Board Guide, Pick and Place
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
30.0µin (0.76µm)
|
|
|
Mated Stacking Heights |
7mm, 8mm, 8.5mm, 9.5mm, 10mm
|
|
|
Height Above Board |
0.181" (4.60mm)
|
|
|
Base Product Number |
SEAM-50 |
