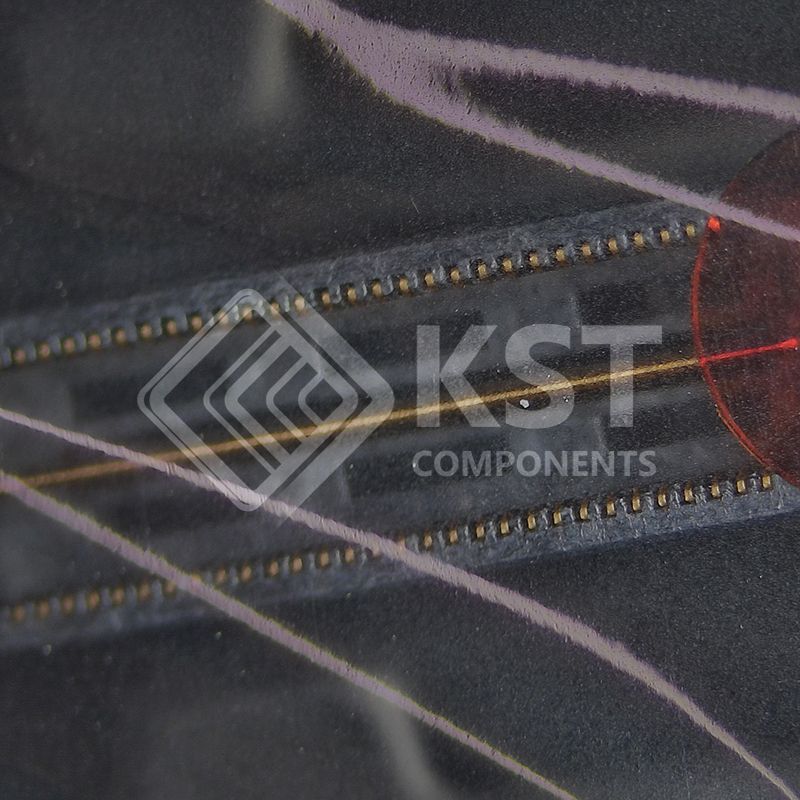

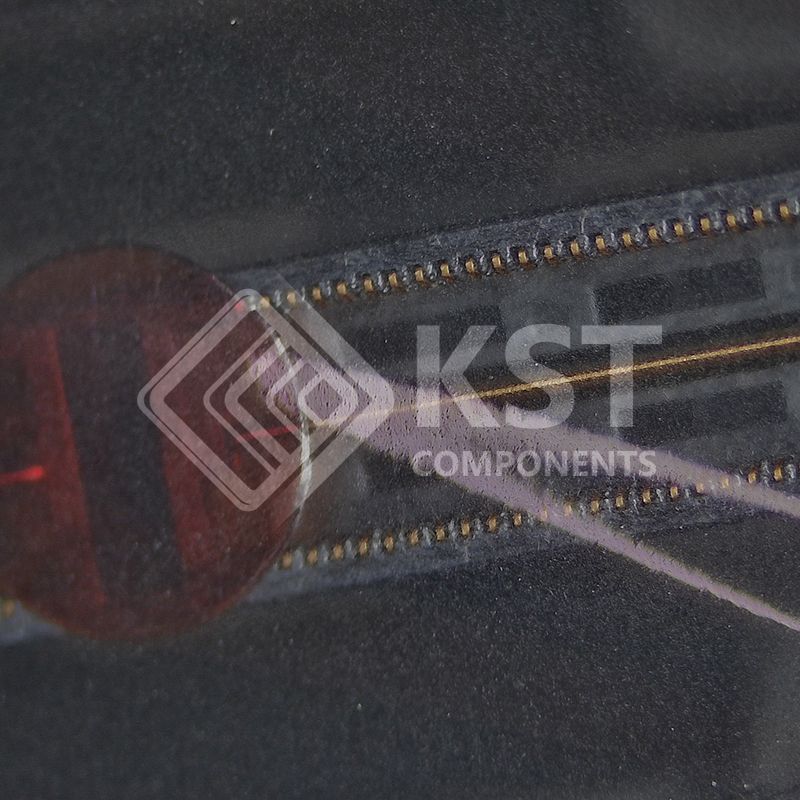

QTH-060-04-L-D-A-K-TR
Part Number:
QTH-060-04-L-D-A-K-TR
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
3DXTECH
Description:
CONN DIFF ARRAY PLUG 120POS SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Samtec Inc.
|
|
|
Series |
Q Strip® QTH |
|
|
Packaging |

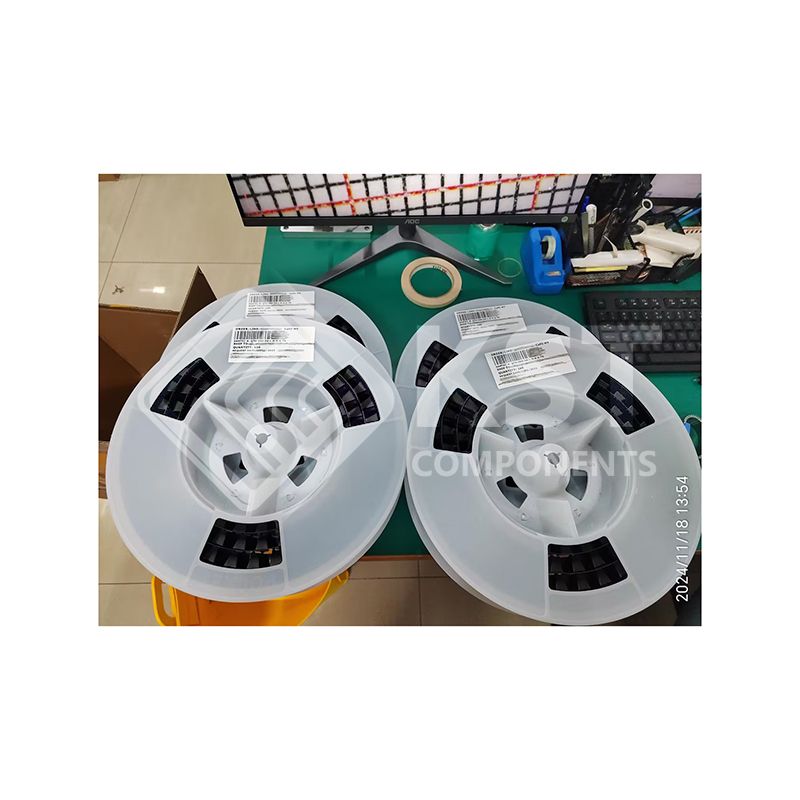

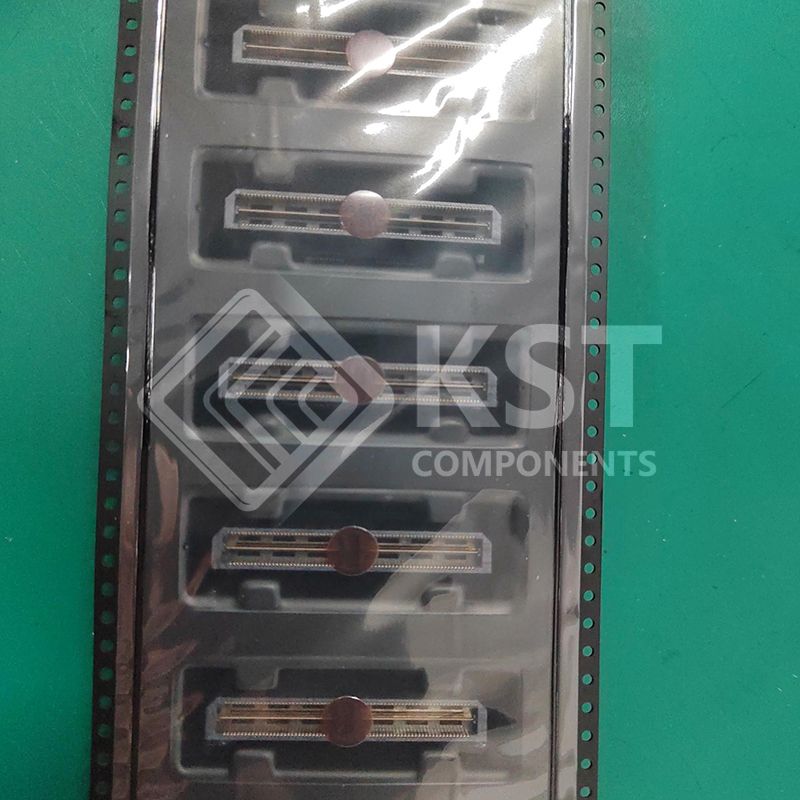

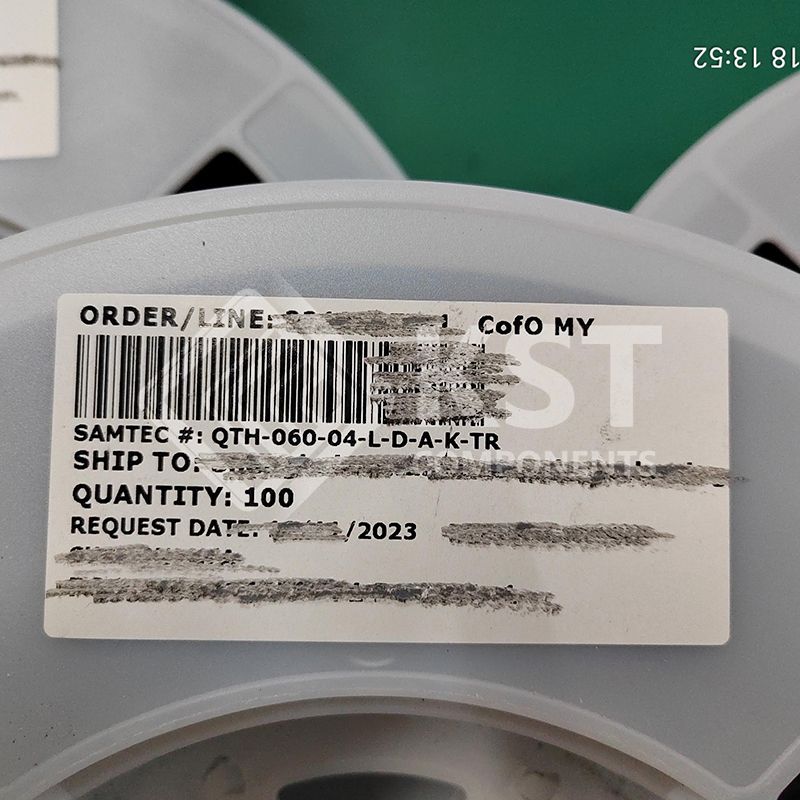

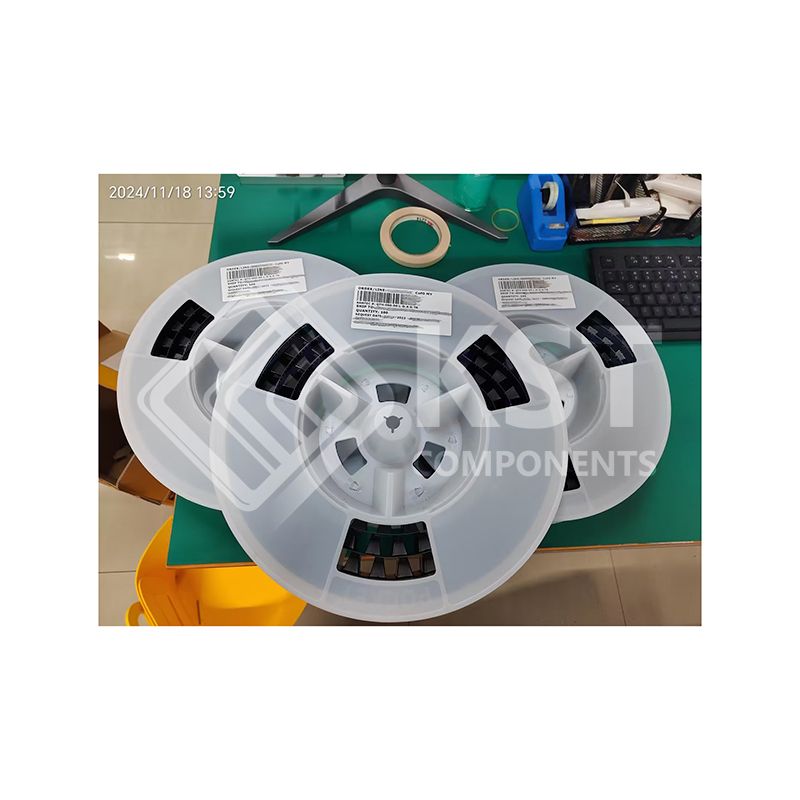

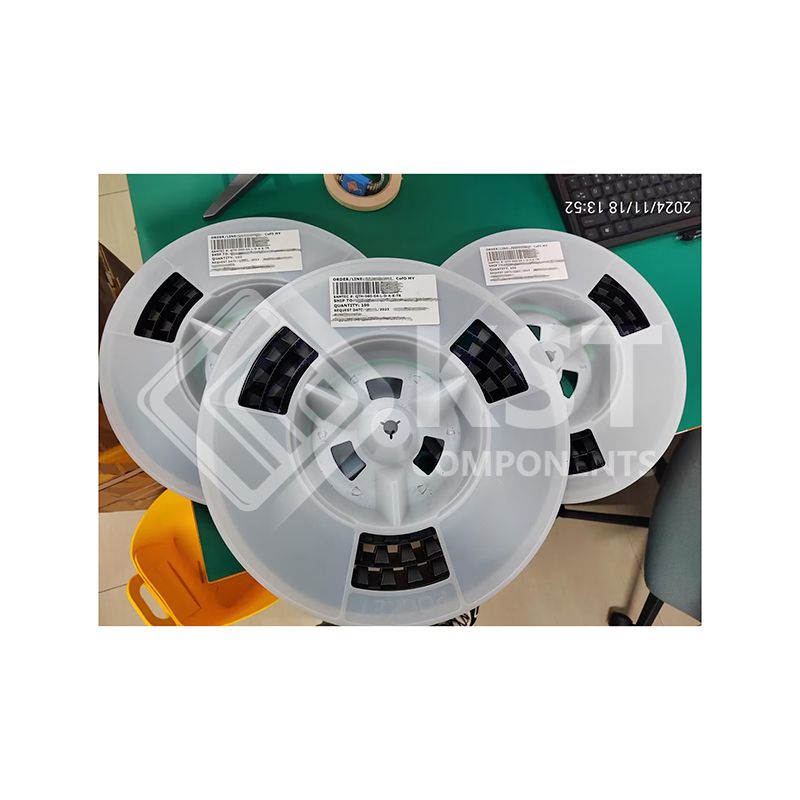

Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header, Outer Shroud Contacts
|
|
|
Number of Positions |
120
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Number of Rows |
2
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Board Guide, Ground Bus (Plane), Pick and Place
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
10.0µin (0.25µm)
|
|
|
Mated Stacking Heights |
16mm
|
|
|
Height Above Board |
0.600" (15.24mm)
|
|
|
Base Product Number |
QTH-060 |
