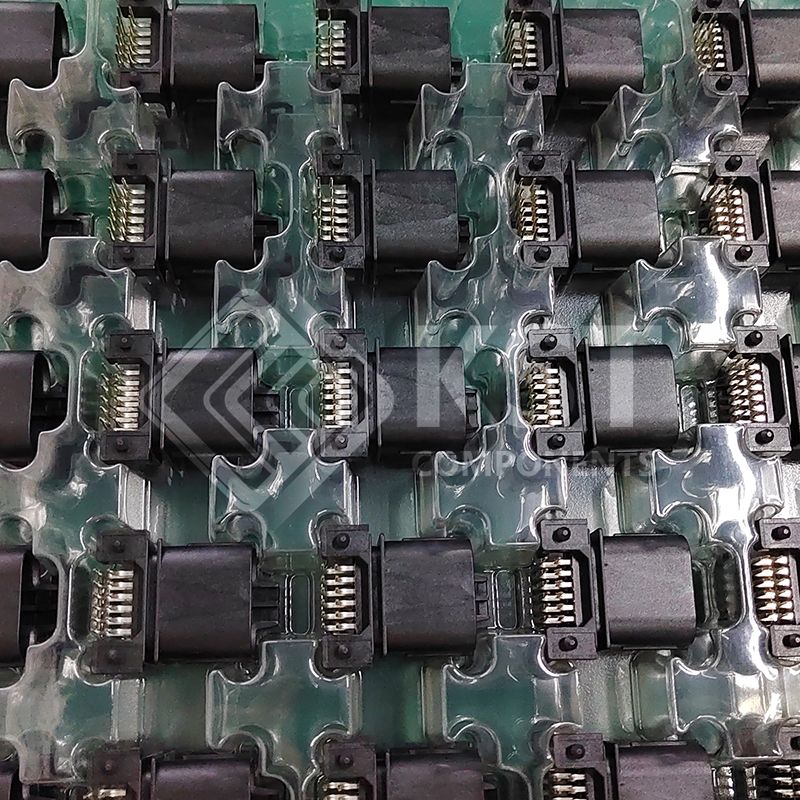

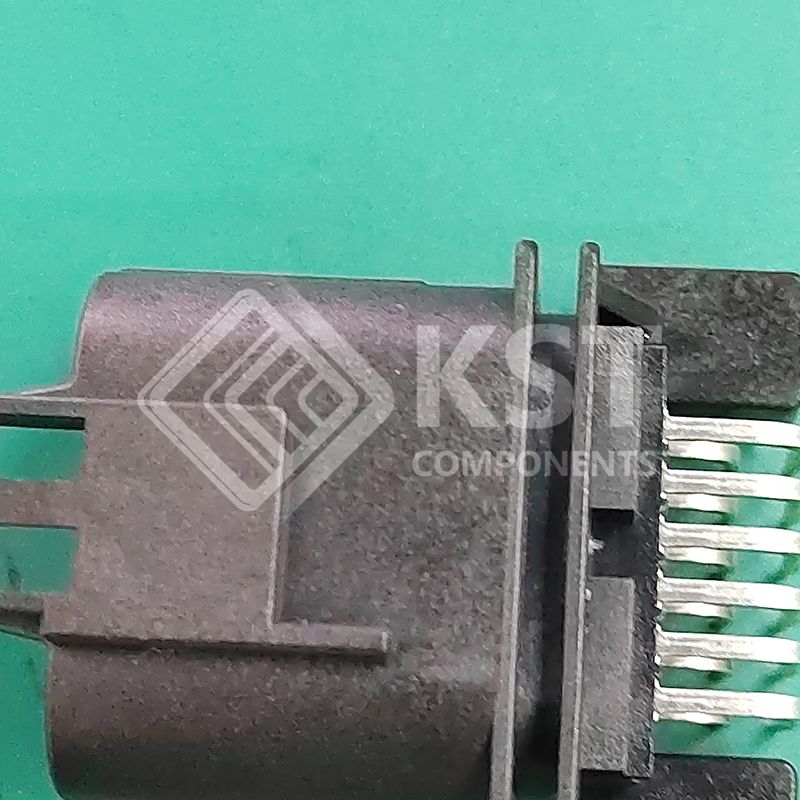

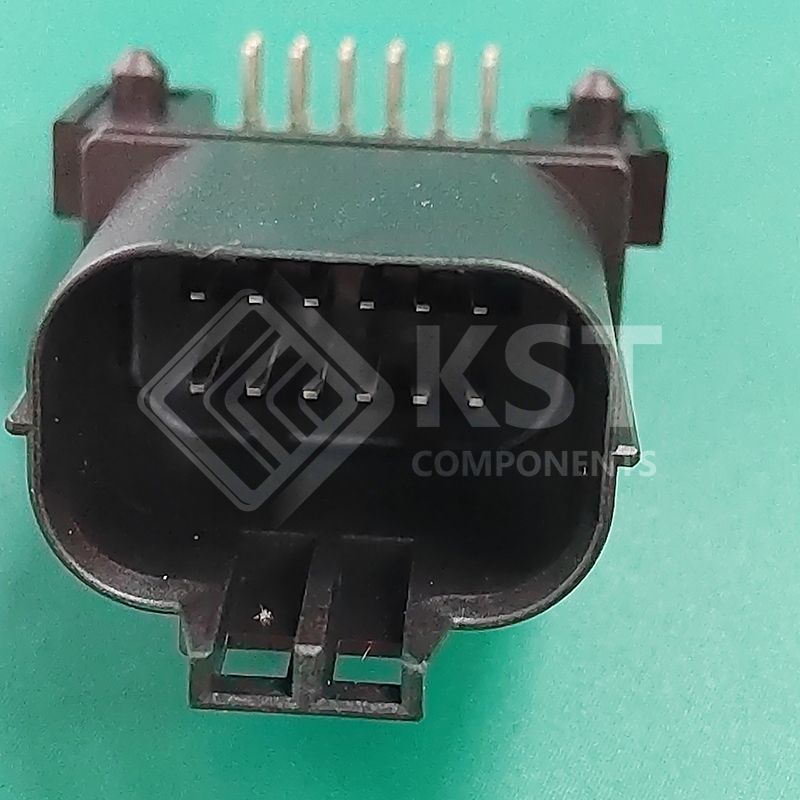

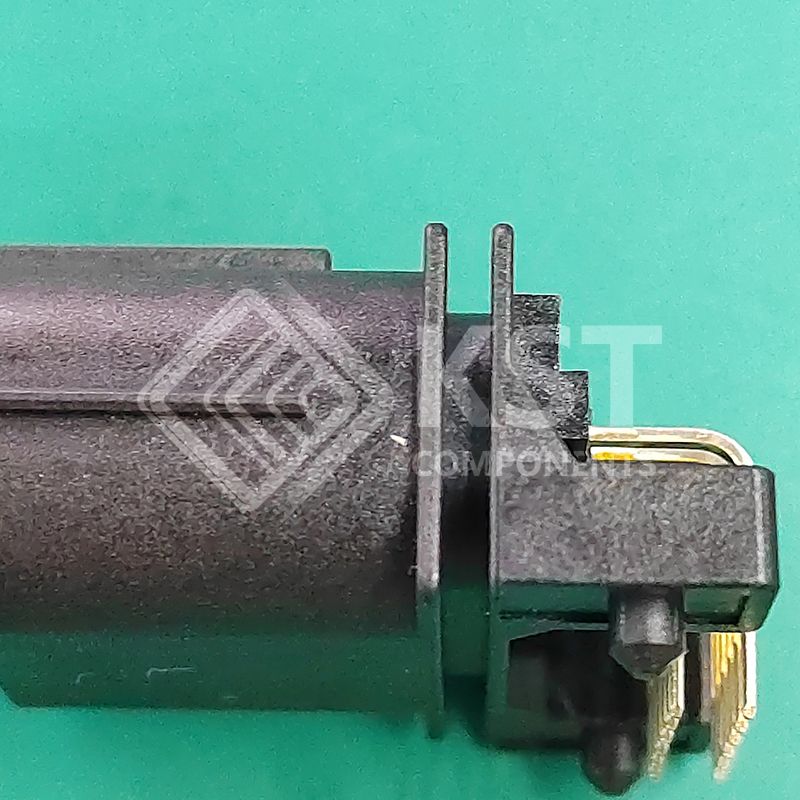

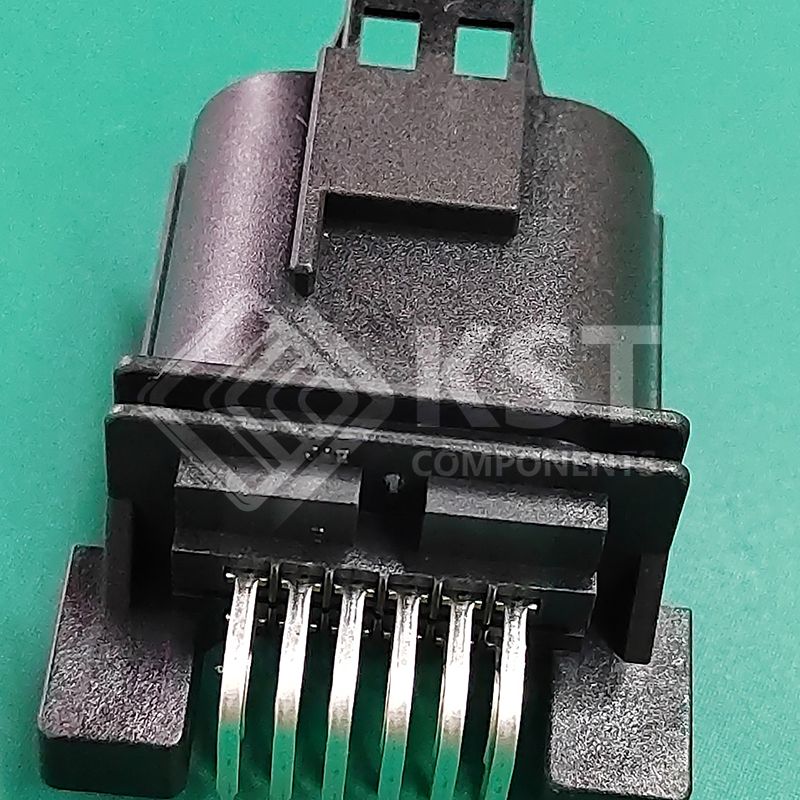

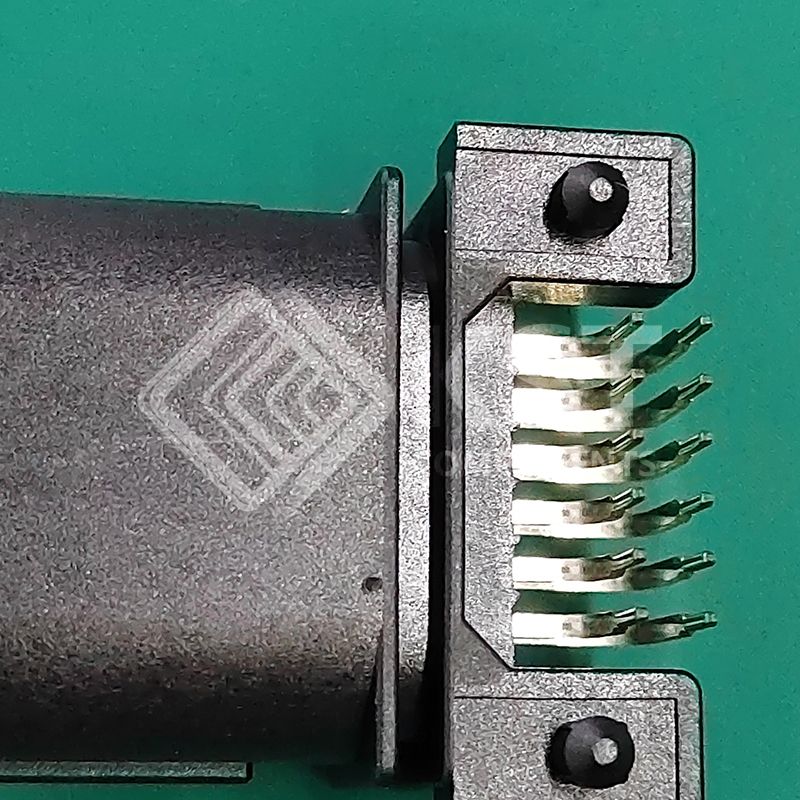

MX23A12NF1
Part Number:
MX23A12NF1
Product Classification:
Excavators, Hooks, Picks, Probes, Tuning Tools
Manufacturer:
Amphenol LTW
Description:
CONN HEADER R/A 12POS 2.5MM
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
JAE Electronics |
|
|
Series |
MX23A |
|
|
Packaging |
Tray
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.098" (2.50mm) |
|
|
Number of Positions |
12 |
|
|
Number of Rows |
2
|
|
|
Row Spacing - Mating |
0.173" (4.40mm) |
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Cable/Wire |
|
|
Shrouding |
Shrouded - 4 Wall
|
|
|
Mounting Type |
Through Hole, Right Angle |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Latch Holder
|
|
|
Contact Length - Mating |
-
|
|
|
Contact Length - Post |
0.122" (3.10mm)
|
|
|
Overall Contact Length |
-
|
|
|
Insulation Height |
0.720" (18.30mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Tin
|
|
|
Contact Finish Thickness - Mating |
-
|
|
|
Contact Finish - Post |
Tin
|
|
|
Contact Material |
Brass
|
|
|
Insulation Material |
Polybutylene Terephthalate (PBT), Glass Filled
|
|
|
Features |
Board Guide
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Ingress Protection |
Waterproof
|
|
|
Material Flammability Rating |
-
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
3A
|
|
|
Voltage Rating |
-
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
-
|
|
|
Applications |
Automotive
|
|
|
Base Product Number |
MX23A12N |
