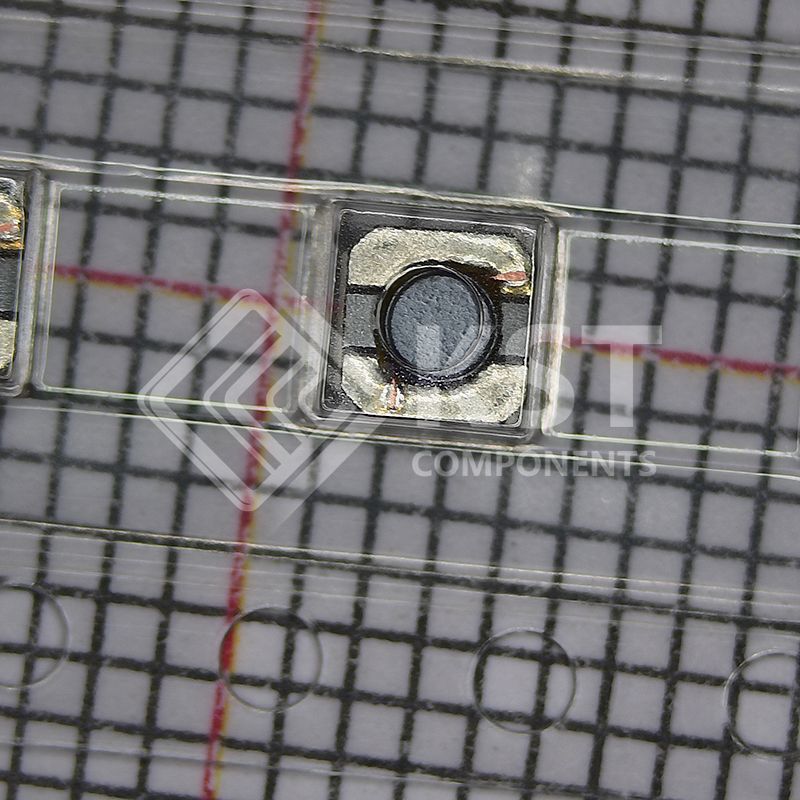

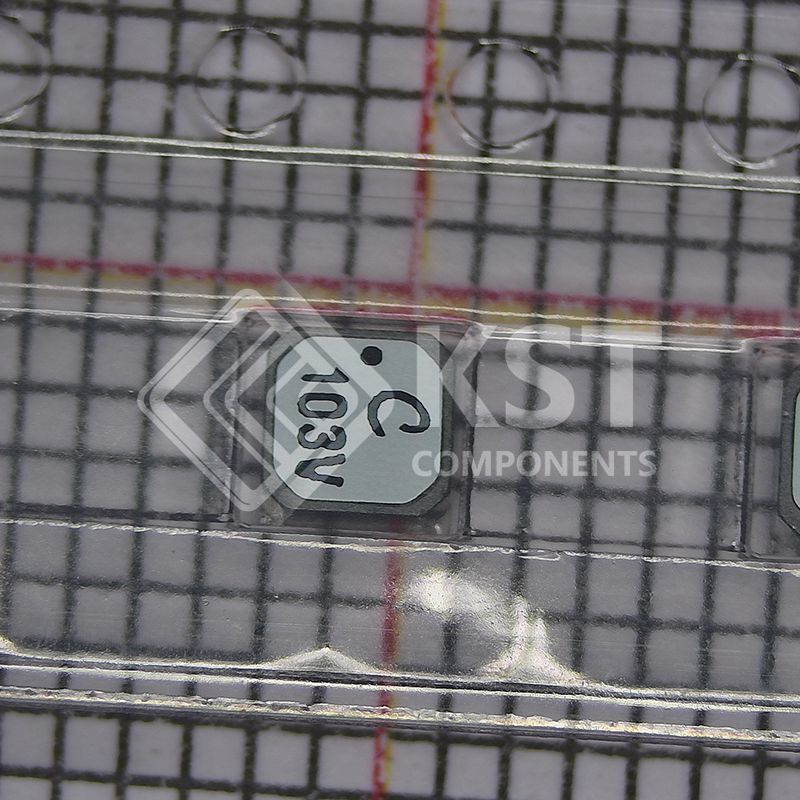

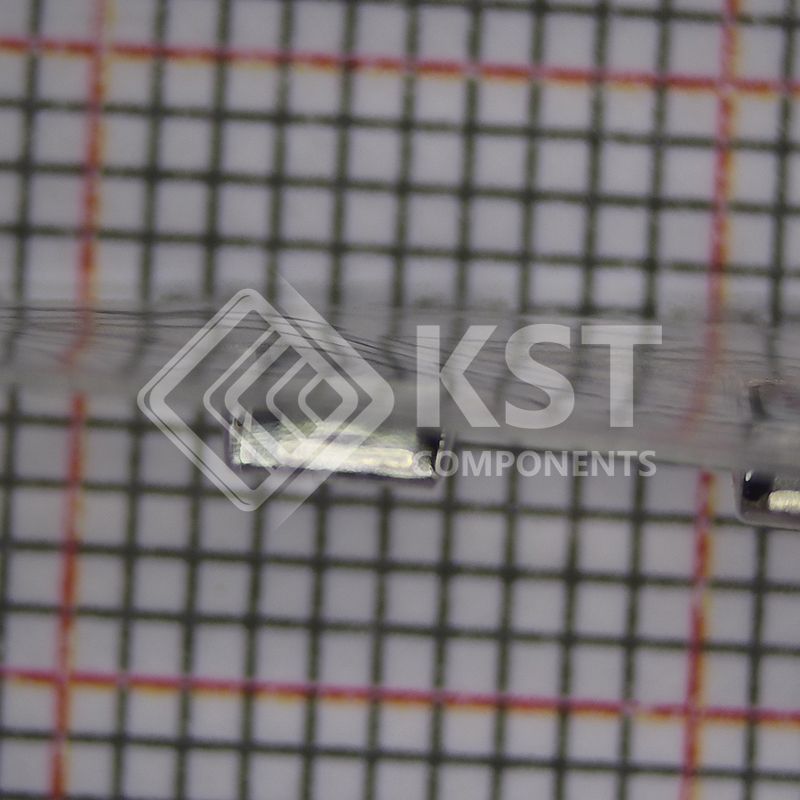

LPS3015-103MRC
Part Number:
LPS3015-103MRC
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
Altera
Description:
FIXED IND 10UH 750MA 440MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Coilcraft |
|
|
Series |
LPS3015 |
|
|
Packaging |
Strip
|
|
|
Part Status |
Active
|
|
|
Type |
-
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
10 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
750 mA |
|
|
Current - Saturation (Isat) |
730mA
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
440mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
48MHz
|
|
|
Ratings |
AEC-Q200
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.116" L x 0.116" W (2.95mm x 2.95mm)
|
|
|
Height - Seated (Max) |
0.059" (1.50mm)
|
