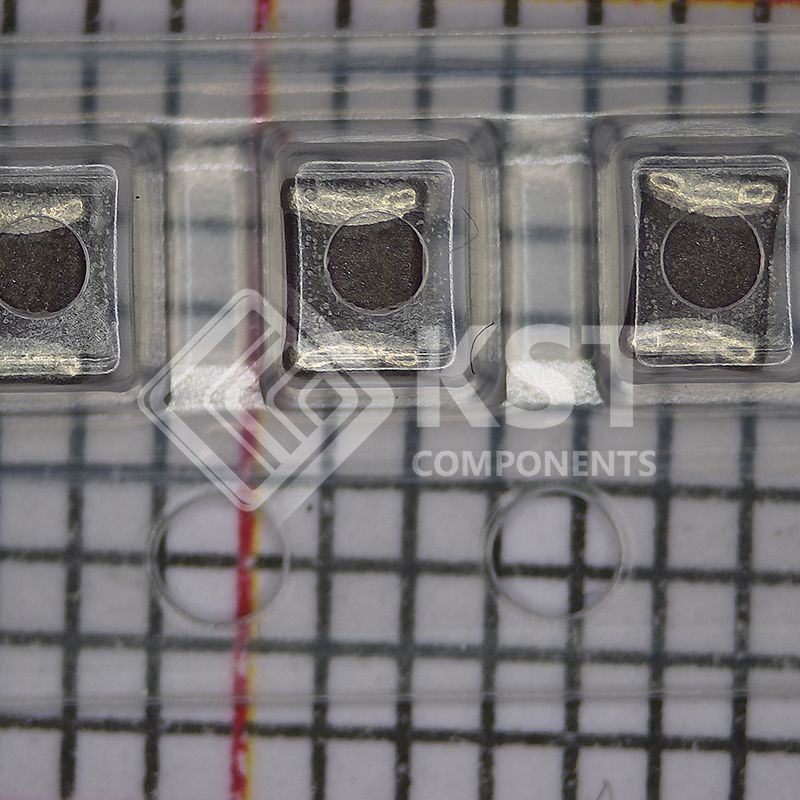

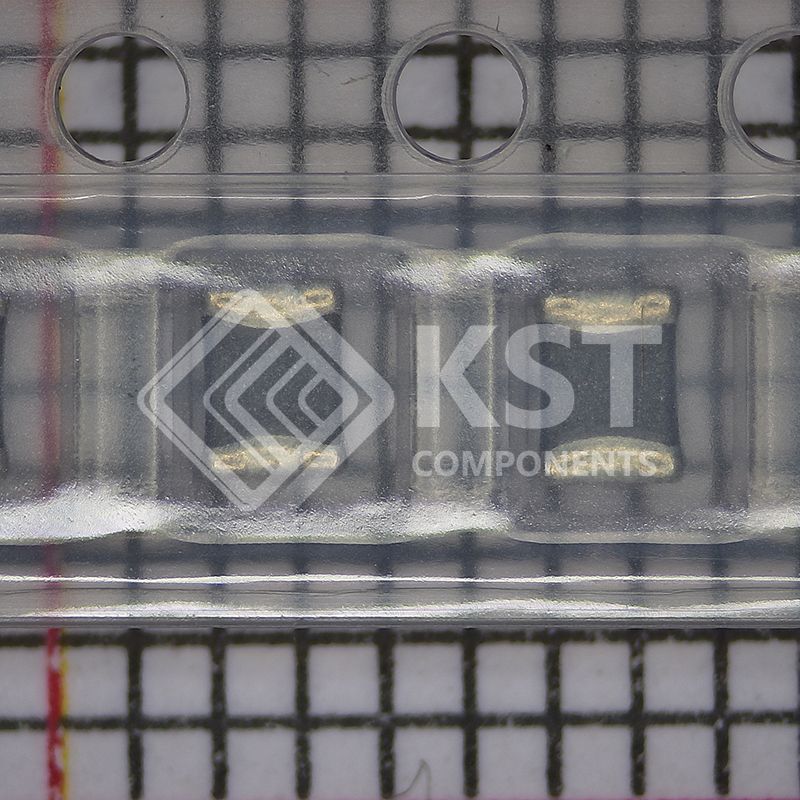

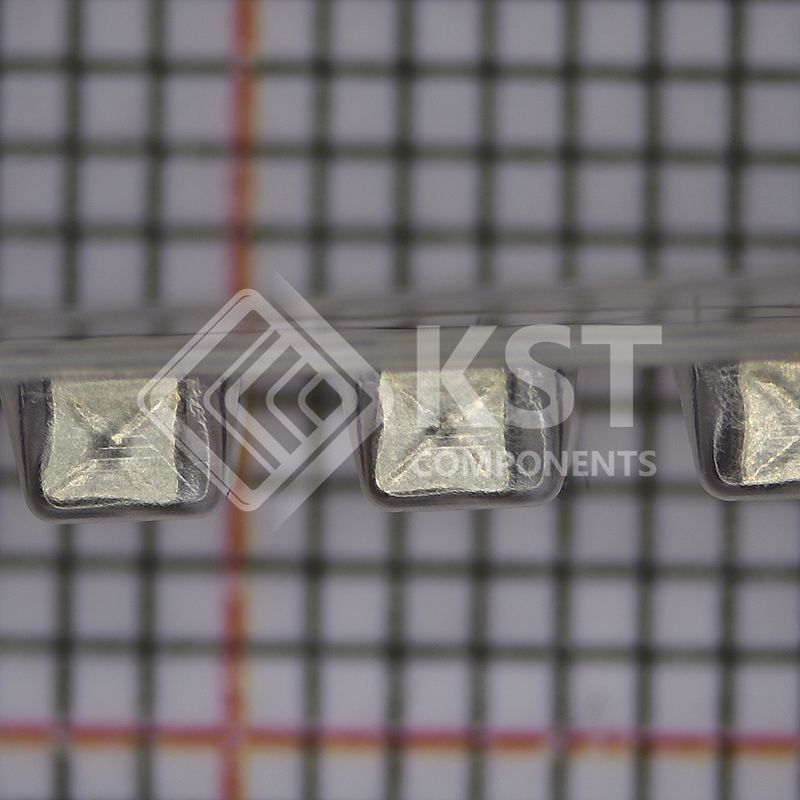

LBR2518T100K
Part Number:
LBR2518T100K
Product Classification:
Pushbutton Switches - Hall Effect
Manufacturer:
AIRTEC Pneumatics
Description:
FIXED IND 10UH 235MA 190MOHM SMD
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Taiyo Yuden |
|
|
Series |
LB, R Type |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Wirewound
|
|
|
Material - Core |
-
|
|
|
Inductance |
10 µH
|
|
|
Tolerance |
±10%
|
|
|
Current Rating (Amps) |
235 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
190mOhm
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
30MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Inductance Frequency - Test |
2.52 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1007 (2518 Metric)
|
|
|
Supplier Device Package |
1007 (2518 Metric)
|
|
|
Size / Dimension |
0.098" L x 0.071" W (2.50mm x 1.80mm)
|
|
|
Height - Seated (Max) |
0.079" (2.00mm)
|
