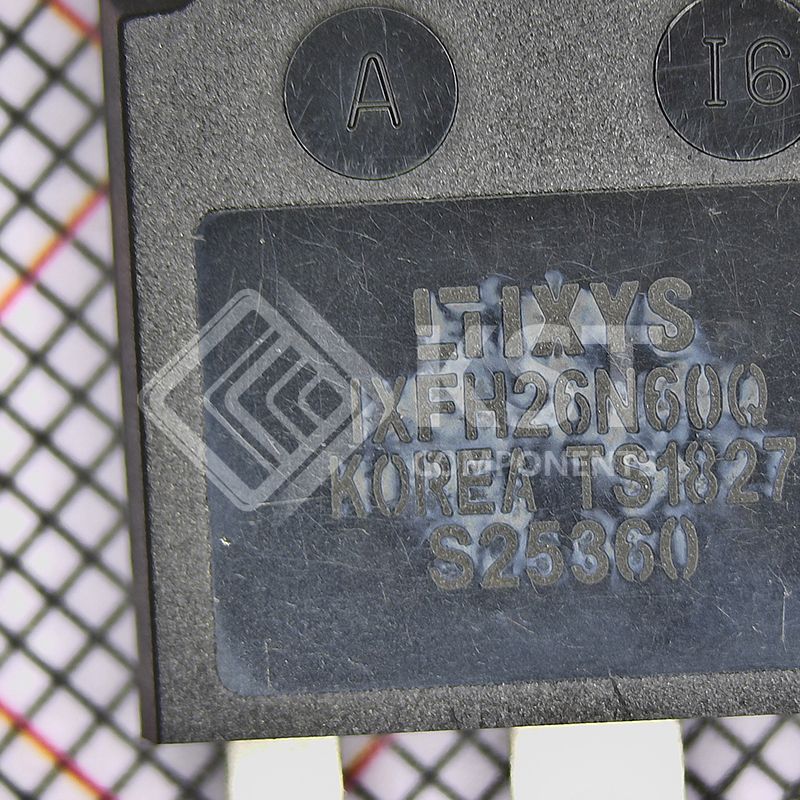

IXFH26N60Q
Part Number:
IXFH26N60Q
Product Classification:
Solid State Relays (SSR)
Manufacturer:
AW Coil
Description:
N-Channel 600 V 26A (Tc) 360W (Tc) Through Hole TO-247AD (IXFH)
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
| Mfr | IXYS |
| Series | HiPerFET™ |

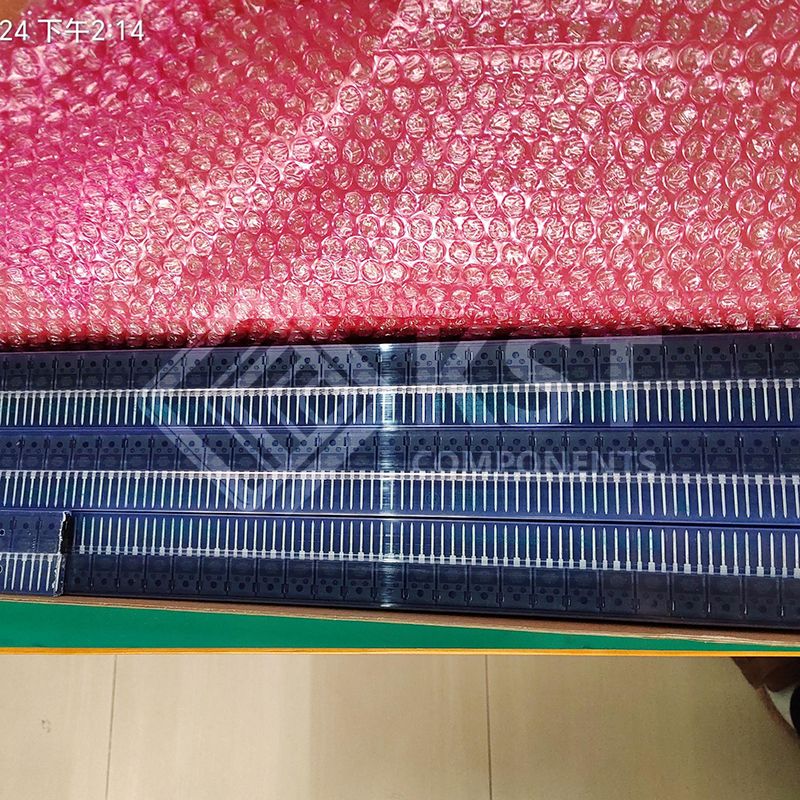

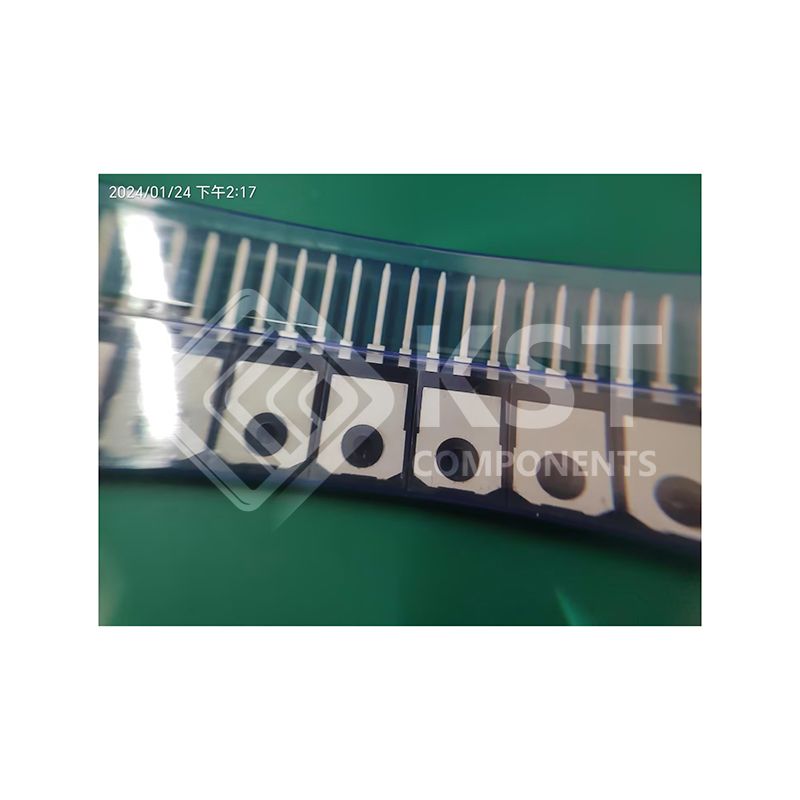

| Packaging | Tube |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 13A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 4mA |
| Gate Charge (Qg) (Max) @ Vgs | 200 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 5100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 360W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247AD (IXFH) |
| Package / Case | TO-247-3 |
| Base Product Number | IXFH26 |
