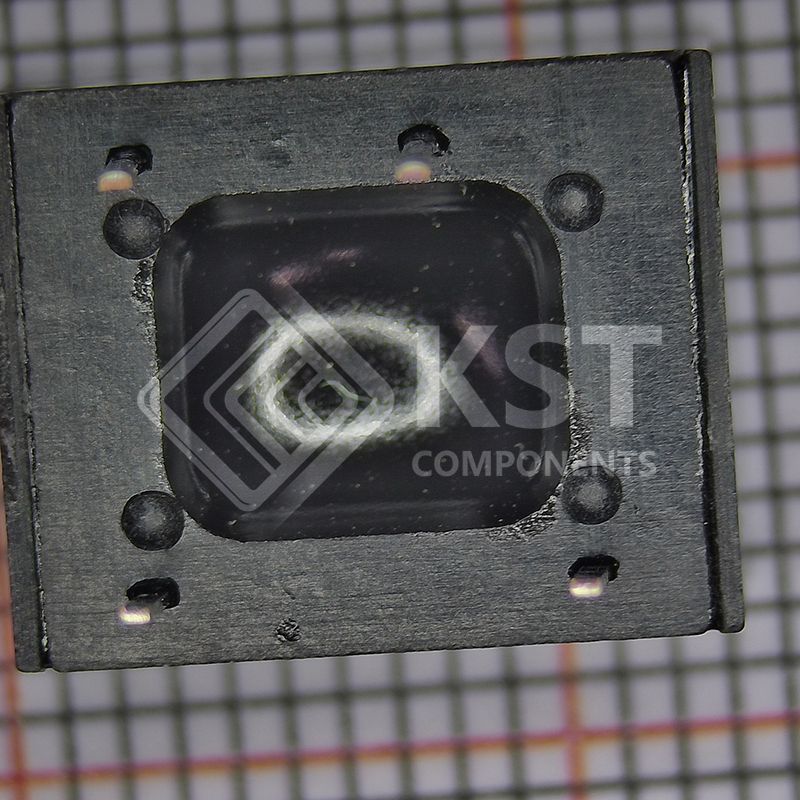

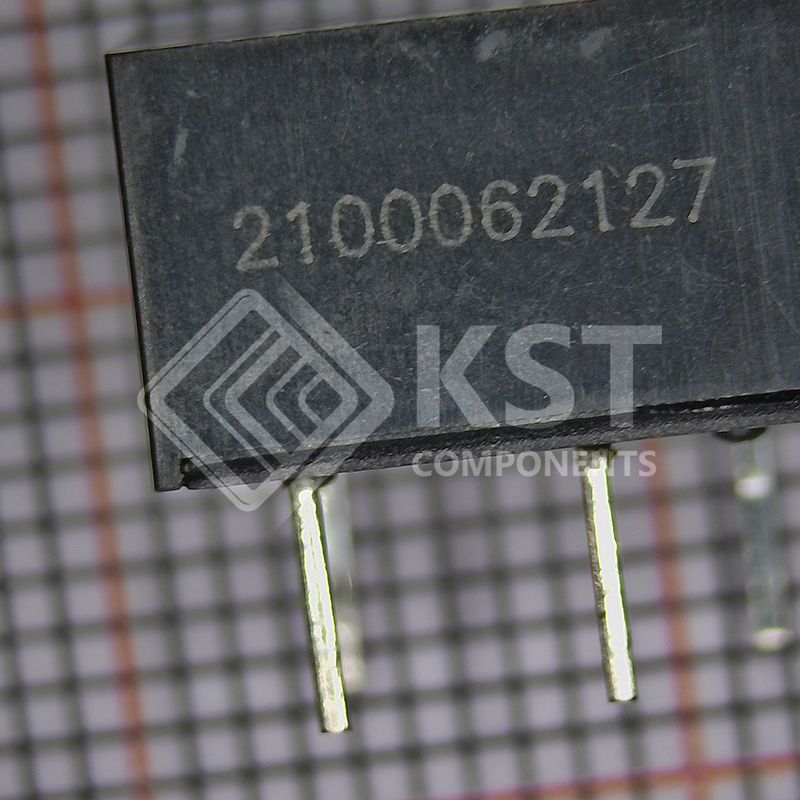

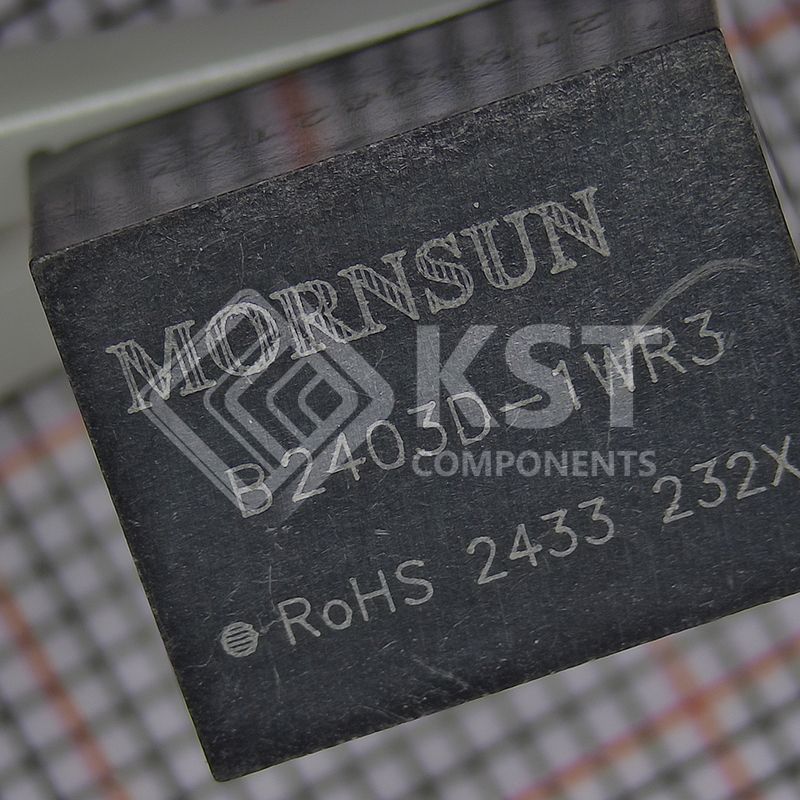

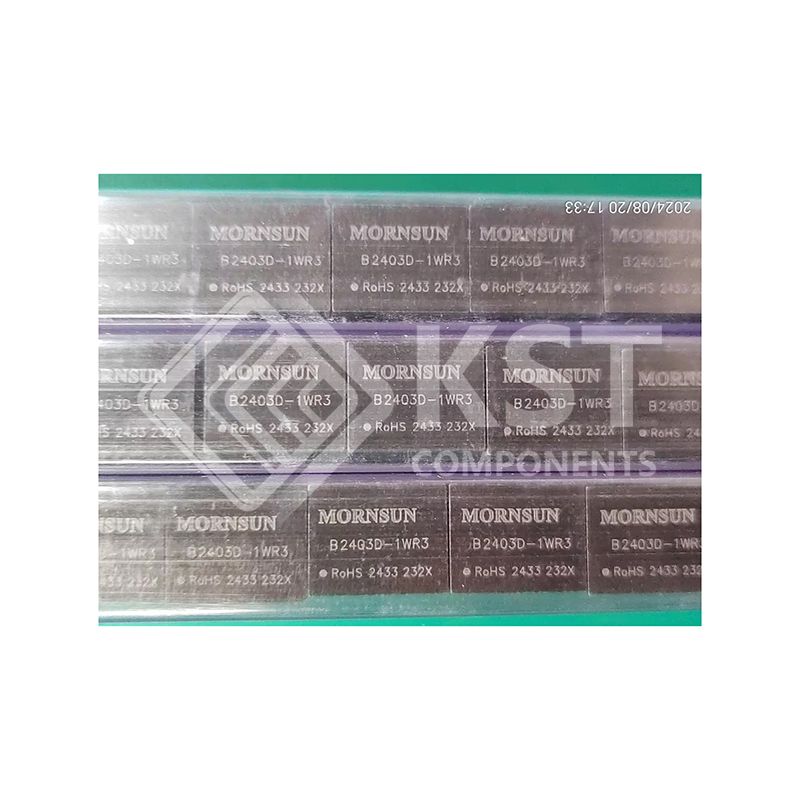

B2403D-1WR3
Part Number:
B2403D-1WR3
Product Classification:
Programmable Display Switches
Manufacturer:
Axiomatic Technologies
Description:
DC DC CONVERTER 3.3V 1W
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Power Supplies - Board Mount
DC DC Converters
|
|
|
Manufacturer |
Mornsun America, LLC
|
|
|
Series |
B_D-1WR3 (1W) |
|
|
Packaging |
Tube
|
|
|
Part Status |
Not For New Designs
|
|
|
Type |
Isolated Module
|
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
21.6V
|
|
|
Voltage - Input (Max) |
26.4V
|
|
|
Voltage - Output 1 |
3.3V |
|
|
Voltage - Output 2 |
-
|
|
|
Voltage - Output 3 |
-
|
|
|
Voltage - Output 4 |
-
|
|
|
Current - Output (Max) |
303mA
|
|
|
Power (Watts) |
1 W
|
|
|
Voltage - Isolation |
1.5 kV
|
|
|
Applications |
ITE (Commercial)
|
|
|
Features |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C (With Derating)
|
|
|
Efficiency |
75%
|
|
|
Mounting Type |
Through Hole
|
|
|
Package / Case |
7-DIP Module, 4 Leads
|
|
|
Size / Dimension |
0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
|
|
|
Supplier Device Package |
-
|
|
|
Control Features |
-
|
|
|
Approval Agency |
CE
|
|
|
Standard Number |
62368-1
|
|
|
Base Product Number |
-
|
