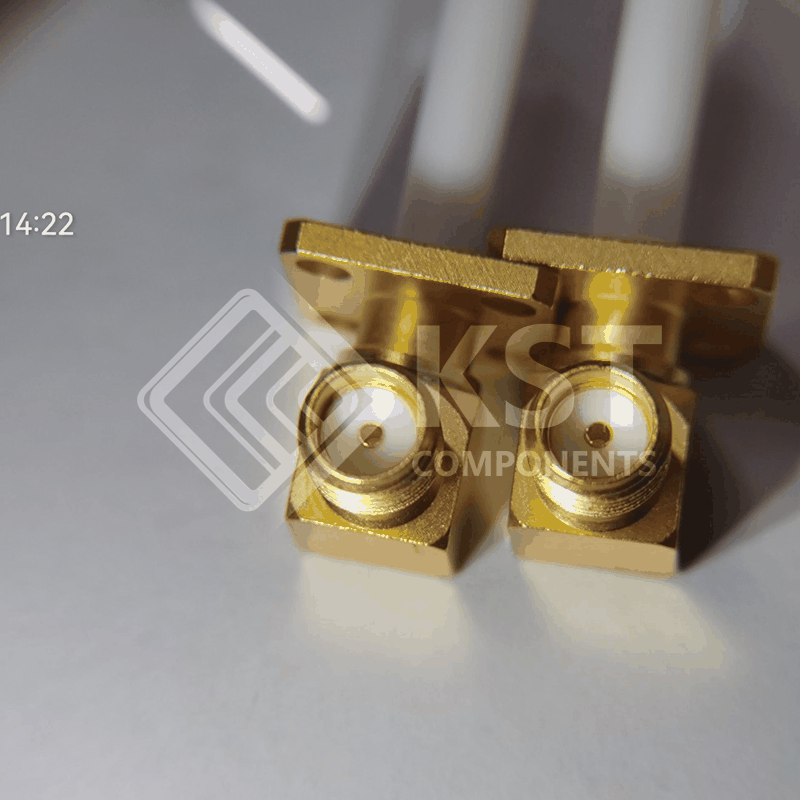

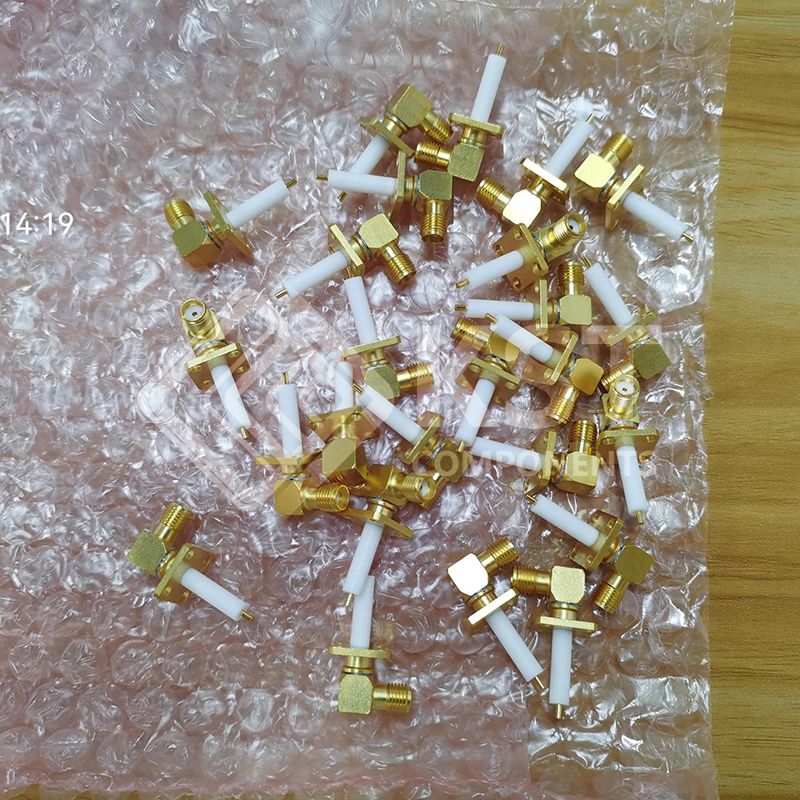

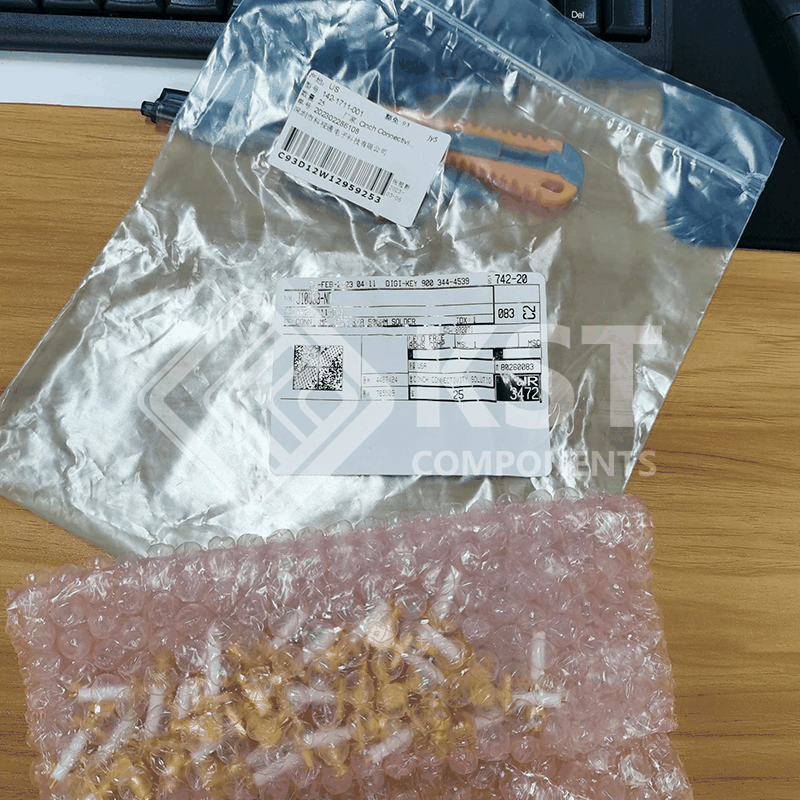

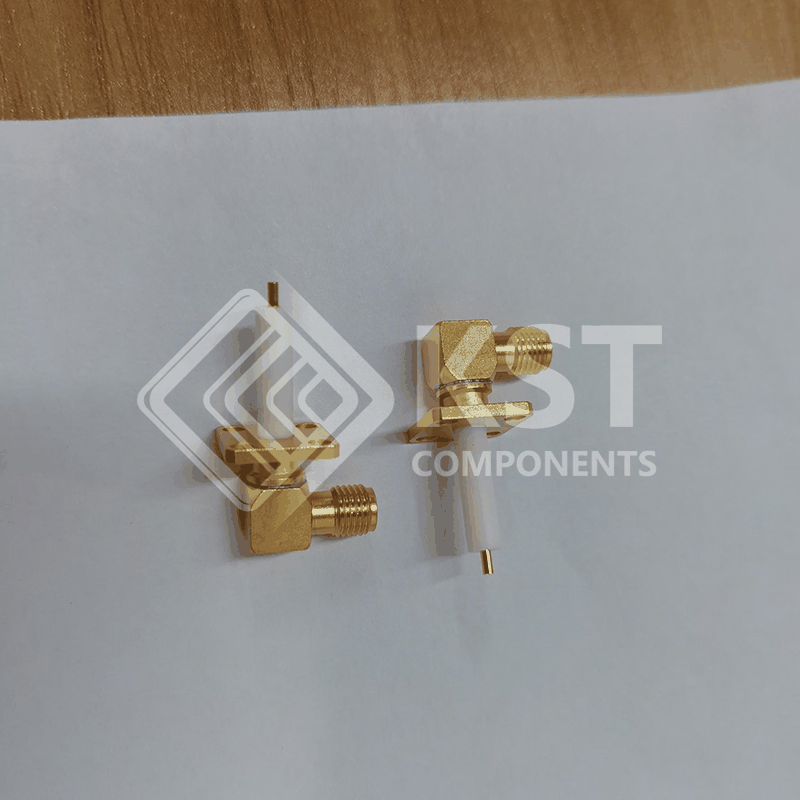

142-1711-001
Part Number:
142-1711-001
Product Classification:
Accessories
Manufacturer:
Aeons Technogies
Description:
CONN SMA JACK R/A 50OHM SOLDER
Packaging:
-
ROHS Status:
No
Currency:
USD
PDF:
Documents
|
Category |
Connectors, Interconnects
Coaxial Connectors (RF)
Coaxial Connector (RF) Assemblies
|
|
|
Mfr |
Cinch Connectivity Solutions Johnson |
|
|
Series |
-
|
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Style |
SMA |
|
|
Connector Type |
Jack, Female Socket
|
|
|
Contact Termination |
Solder
|
|
|
Shield Termination |
Solder
|
|
|
Impedance |
50 Ohms
|
|
|
Mounting Type |
Panel Mount, Right Angle
|
|
|
Mounting Feature |
Flange
|
|
|
Cable Group |
-
|
|
|
Fastening Type |
Threaded
|
|
|
Frequency - Max |
18 GHz
|
|
|
Number of Ports |
1
|
|
|
Features |
Extended Insulation
|
|
|
Housing Color |
Gold
|
|
|
Ingress Protection |
-
|
|
|
Center Contact Material |
Beryllium Copper
|
|
|
Includes |
-
|
|
|
Body Material |
Brass
|
|
|
Body Finish |
Gold
|
|
|
Center Contact Plating |
Gold
|
|
|
Dielectric Material |
Polytetrafluoroethylene (PTFE)
|
|
|
Operating Temperature |
-65°C ~ 165°C
|
|
|
Voltage Rating |
335 V
|
|
|
Mating Cycles |
500
|
|
|
Insertion Loss |
-
|
|
|
Base Product Number |
142-1711 |
