Category |
Capacitors
Aluminum Electrolytic Capacitors
|
|
|
Mfr |
Nichicon |
|
|
Series |
UWX |
|
|

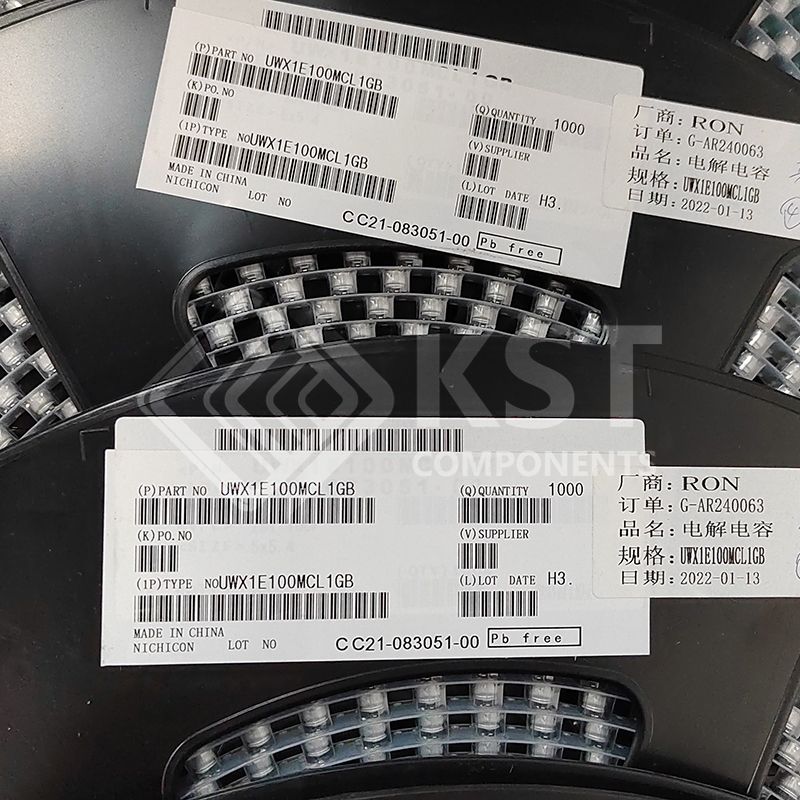

Packaging |

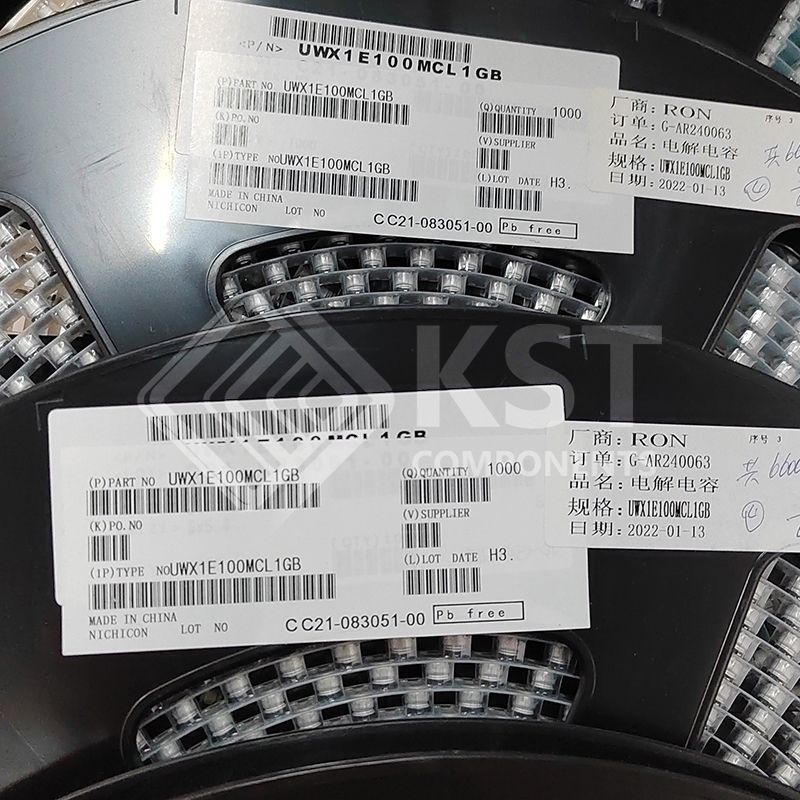

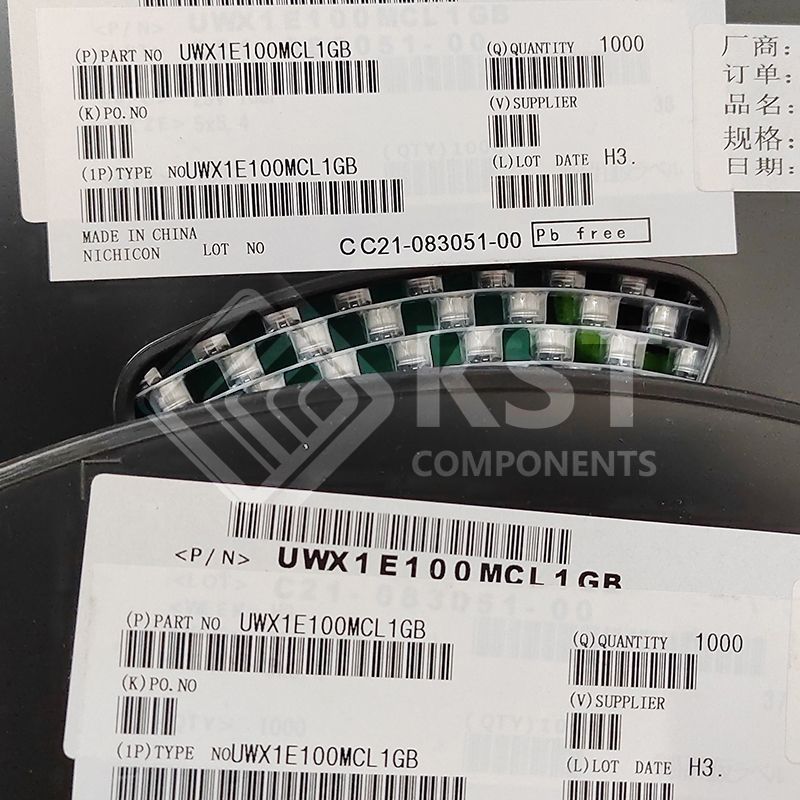

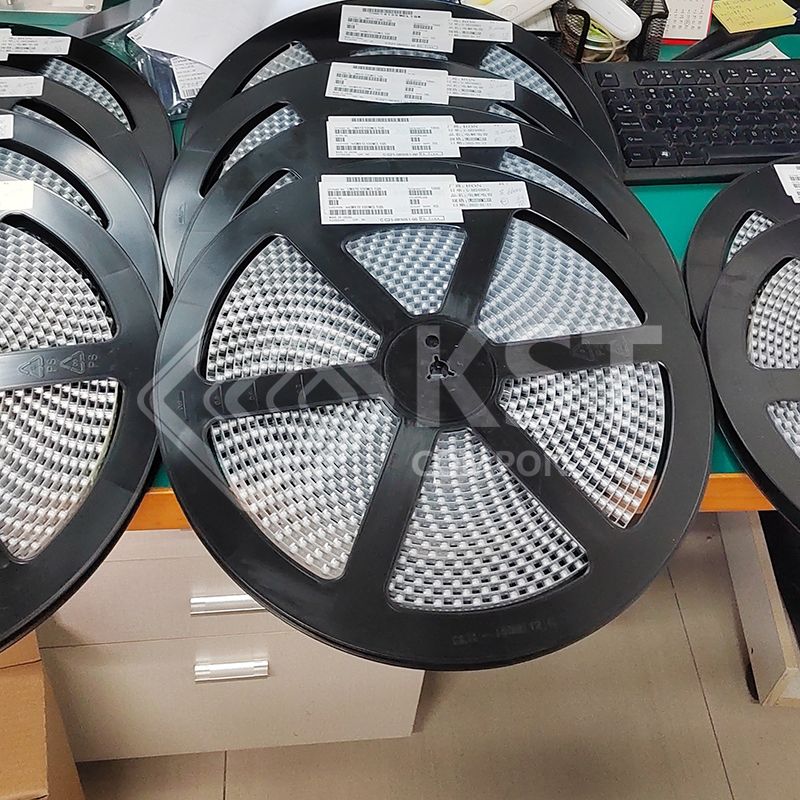

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Obsolete
|
|
|
Capacitance |
10 µF |
|
|
Tolerance |
±20%
|
|
|
Voltage - Rated |
25 V
|
|
|
ESR (Equivalent Series Resistance) |
-
|
|
|
Lifetime @ Temp. |
2000 Hrs @ 85°C
|
|
|
Operating Temperature |
-40°C ~ 85°C
|
|
|
Polarization |
Polar
|
|
|
Ratings |
-
|
|
|
Applications |
General Purpose |
|
|
Ripple Current @ Low Frequency |
27 mA @ 120 Hz
|
|
|
Ripple Current @ High Frequency |
40.5 mA @ 10 kHz
|
|
|
Lead Spacing |
-
|
|
|
Size / Dimension |
0.197" Dia (5.00mm)
|
|
|
Height - Seated (Max) |
0.213" (5.40mm)
|
|
|
Surface Mount Land Size |
0.209" L x 0.209" W (5.30mm x 5.30mm)
|
|
|
Mounting Type |
Surface Mount |
|
|
Package / Case |
Radial, Can - SMD
|
