Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Power Distribution Switches, Load Drivers
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
ULx200xA |
|
|
Packaging |

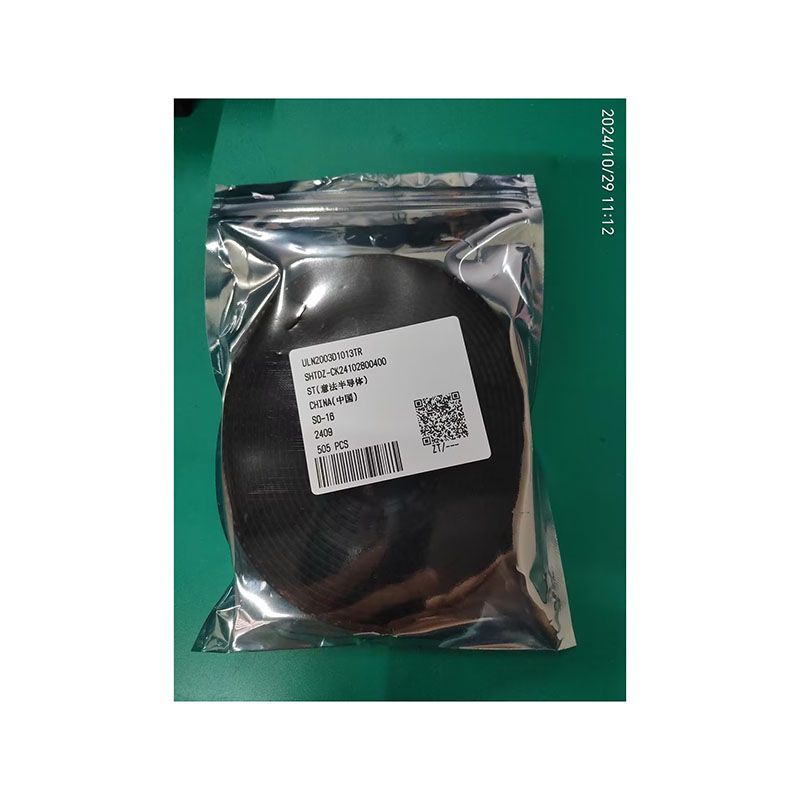

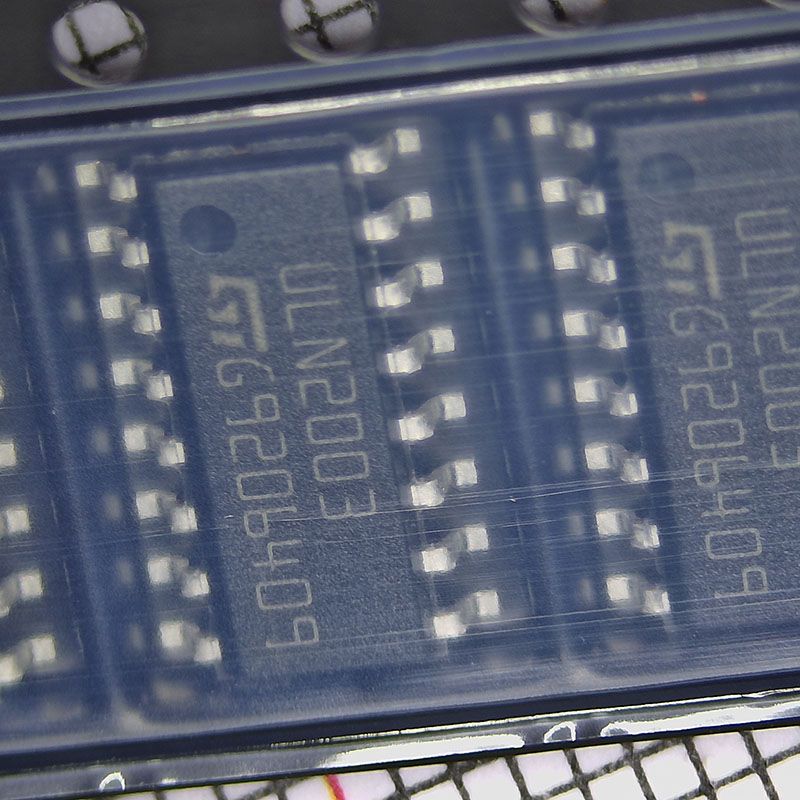

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Switch Type |
Relay, Solenoid Driver |
|
|
Number of Outputs |
7
|
|
|
Ratio - Input:Output |
1:1
|
|
|
Output Configuration |
Low Side
|
|
|
Output Type |
Darlington
|
|
|
Interface |
Parallel
|
|
|
Voltage - Load |
50V (Max)
|
|
|
Voltage - Supply (Vcc/Vdd) |
Not Required
|
|
|
Current - Output (Max) |
500mA
|
|
|
Rds On (Typ) |
-
|
|
|
Input Type |
Inverting
|
|
|
Features |
-
|
|
|
Fault Protection |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |
16-SO
|
|
|
Package / Case |
16-SOIC (0.154", 3.90mm Width) |
|
|
Base Product Number |
ULN2003 |
