Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
18V
|
|
|
Voltage - Output (Min/Fixed) |
1.24V
|
|
|
Voltage - Output (Max) |
17.4V |
|
|
Voltage Dropout (Max) |
0.55V @ 500mA
|
|
|
Current - Output |
500mA |
|
|
Current - Quiescent (Iq) |
5 µA
|
|
|
Current - Supply (Max) |
400 µA
|
|
|
PSRR |
80dB ~ 52dB (10Hz ~ 1kHz)
|
|
|
Control Features |
Enable, Power Good
|
|
|
Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO)
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

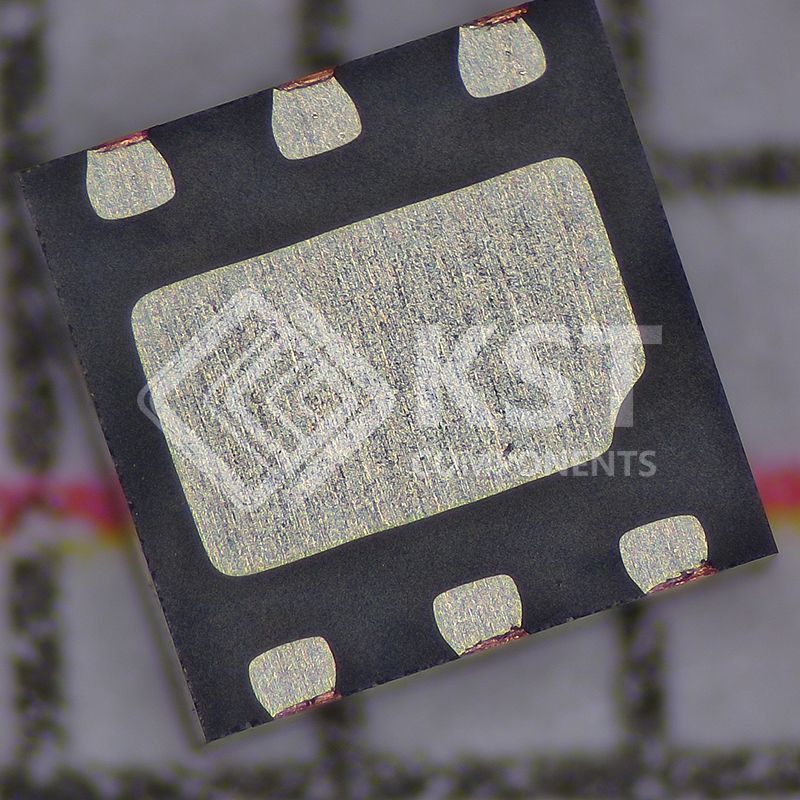

6-WDFN Exposed Pad
|
|
|
Supplier Device Package |
6-WSON (2x2)
|
|
|
Base Product Number |
TPS7A2601 |
