Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
Texas Instruments |
|
|
Series |
-
|
|
|

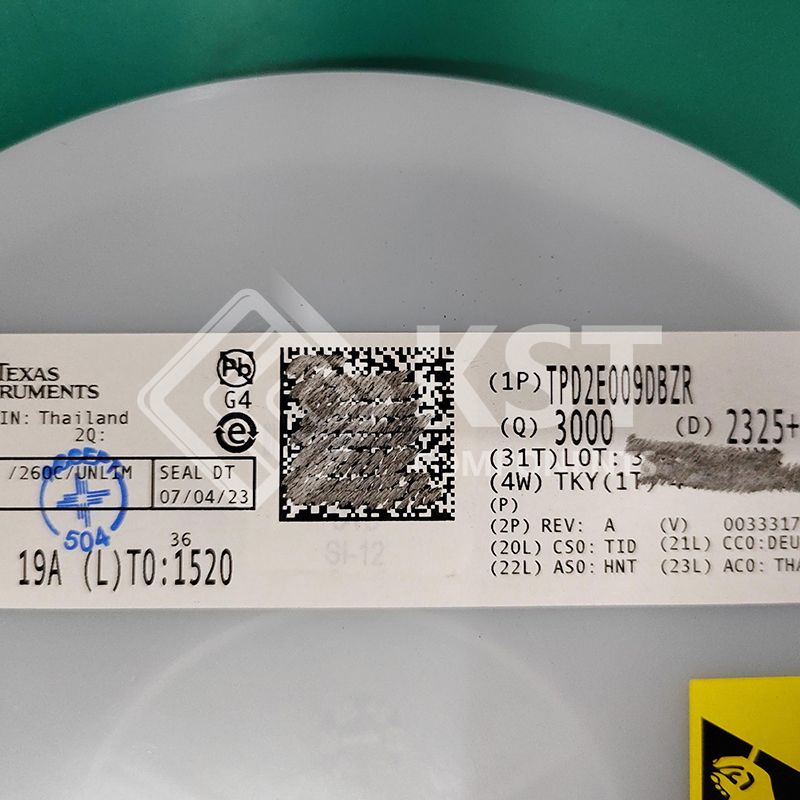

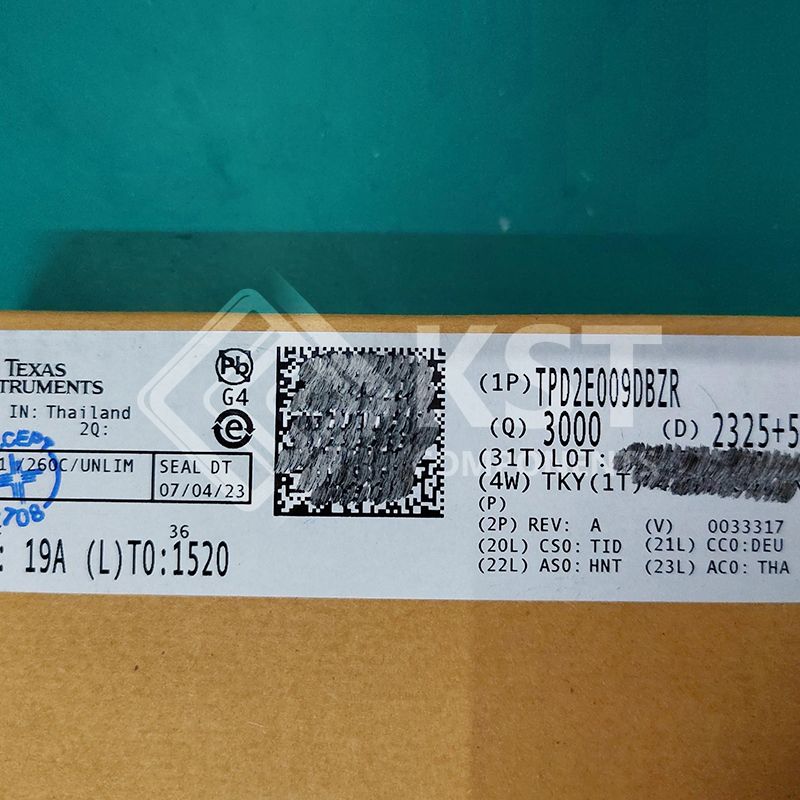

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Unidirectional Channels |
2
|
|
|
Voltage - Reverse Standoff (Typ) |
5.5V (Max)
|
|
|
Voltage - Breakdown (Min) |
7V
|
|
|
Voltage - Clamping (Max) @ Ipp |
8V
|
|
|
Current - Peak Pulse (10/1000µs) |
1A (8/20µs)
|
|
|
Power - Peak Pulse |
45W
|
|
|
Power Line Protection |
Yes
|
|
|
Applications |
Ethernet, HDMI
|
|
|
Capacitance @ Frequency |
-
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|

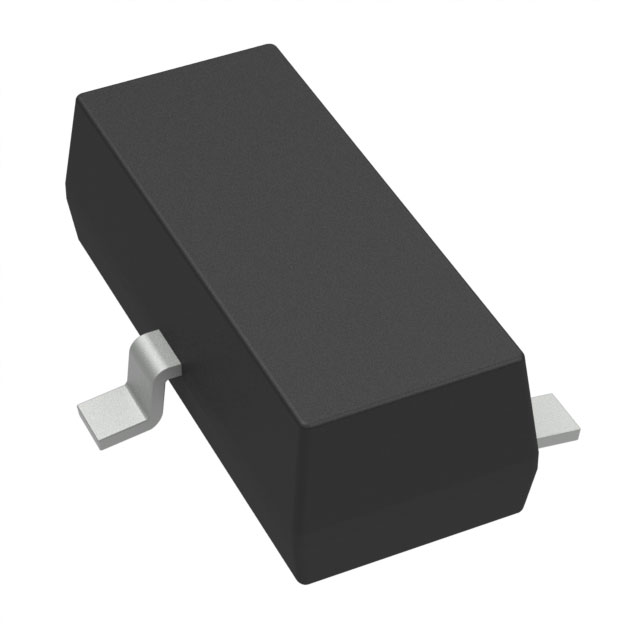

Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
SOT-23-3 |
|
|
Base Product Number |
TPD2E009 |
