• AEC-Q100 qualified with:
– Temperature grade 1: –40°C to 125°C Ambient
Operating Temperature Range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C6
• Functional Safety-Capable
– Documentation available to aid functional safety
system design

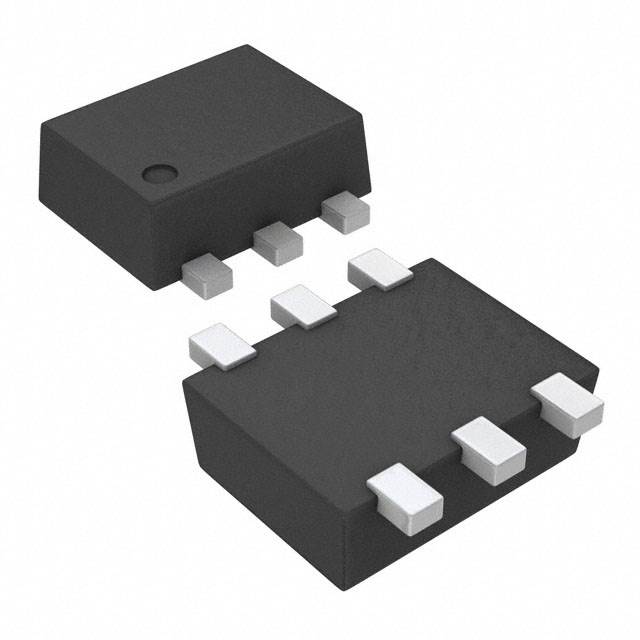

• SOT563 package (1.6 mm × 1.6 mm) is a 68%
smaller footprint than SOT23
• Accuracy without calibration:
– 0.5°C (maximum) from 0°C to 65°C
– 1°C (maximum) from –40°C to 125°C
• Low quiescent current:
– 10-μA active (maximum)
– 1-μA shutdown (maximum)
• Supply range: 1.4 to 3.6 V
• Resolution: 12 bits
• Digital output: SMBus, two-wire and I2C interface
compatibility
• NIST traceable
