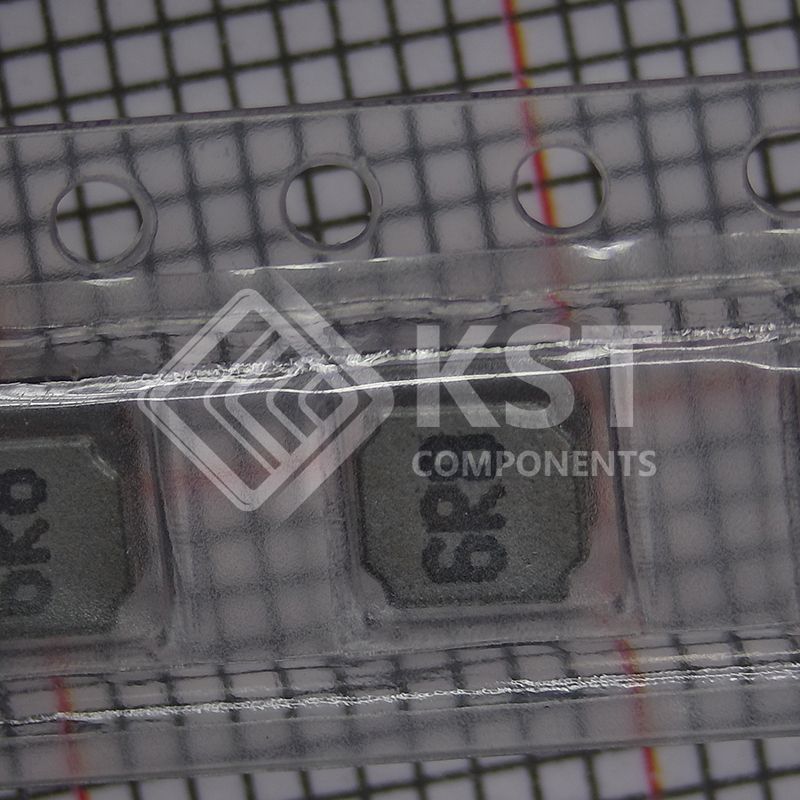

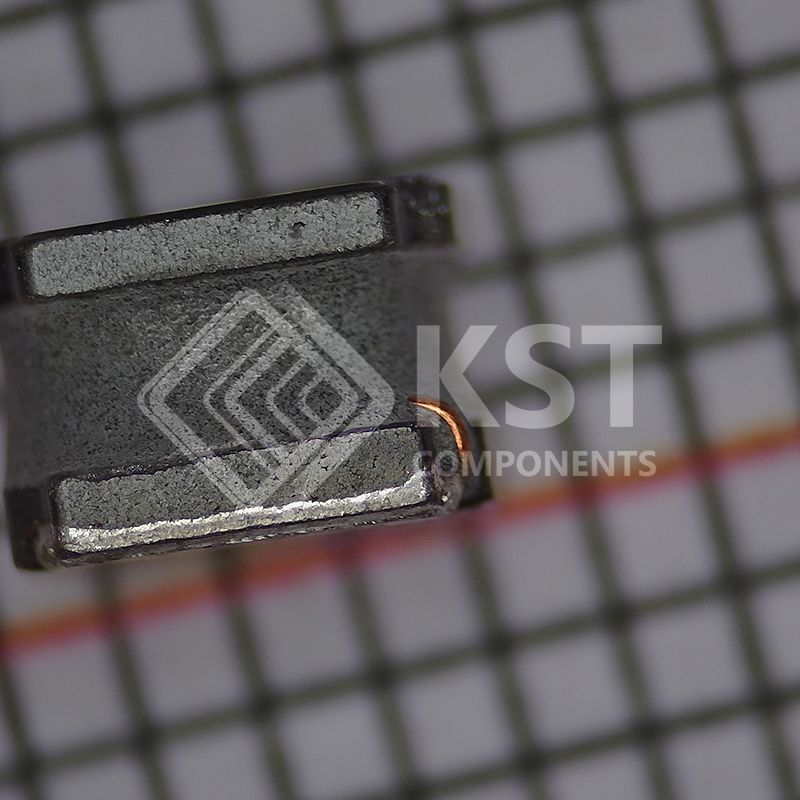

SWPA4030S6R8MT
零件编号：
SWPA4030S6R8MT
产品分类：
按钮开关 - 霍尔效应
制造商：
Times Microwave Systems
描述：
FIXED IND 6.8UH 1.6A 117MOHM SMD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Shenzhen Sunlord Electronics Co., Ltd. |
|
|
Series |
SWPA |
|
|
Packaging |
Tape & Reel (TR)
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
6.8 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
1.6 A |
|
|
Current - Saturation (Isat) |
2.75A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
117mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
24MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.157" L x 0.157" W (4.00mm x 4.00mm)
|
|
|
Height - Seated (Max) |
0.118" (3.00mm)
|
