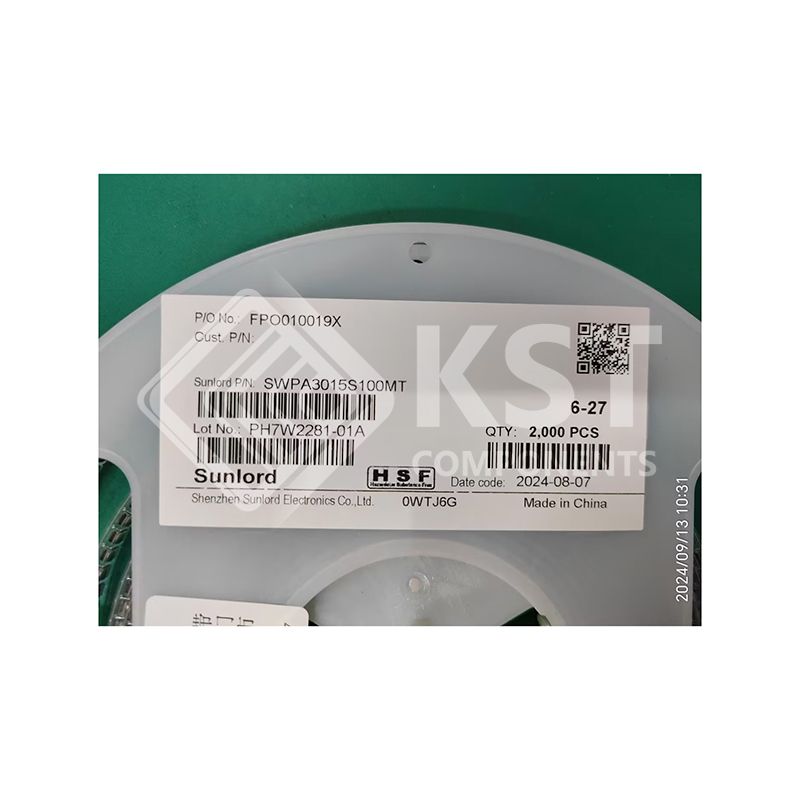

SWPA3015S100MT
零件编号：
SWPA3015S100MT
产品分类：
按钮开关 - 霍尔效应
制造商：
Times Microwave Systems
描述：
FIXED IND 10UH 770MA 325MOHM SMD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Shenzhen Sunlord Electronics Co., Ltd. |
|
|
Series |
SWPA |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
10 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
770 mA |
|
|
Current - Saturation (Isat) |
920mA
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
325mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
41MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.118" L x 0.118" W (3.00mm x 3.00mm)
|
|
|
Height - Seated (Max) |
0.059" (1.50mm)
|
