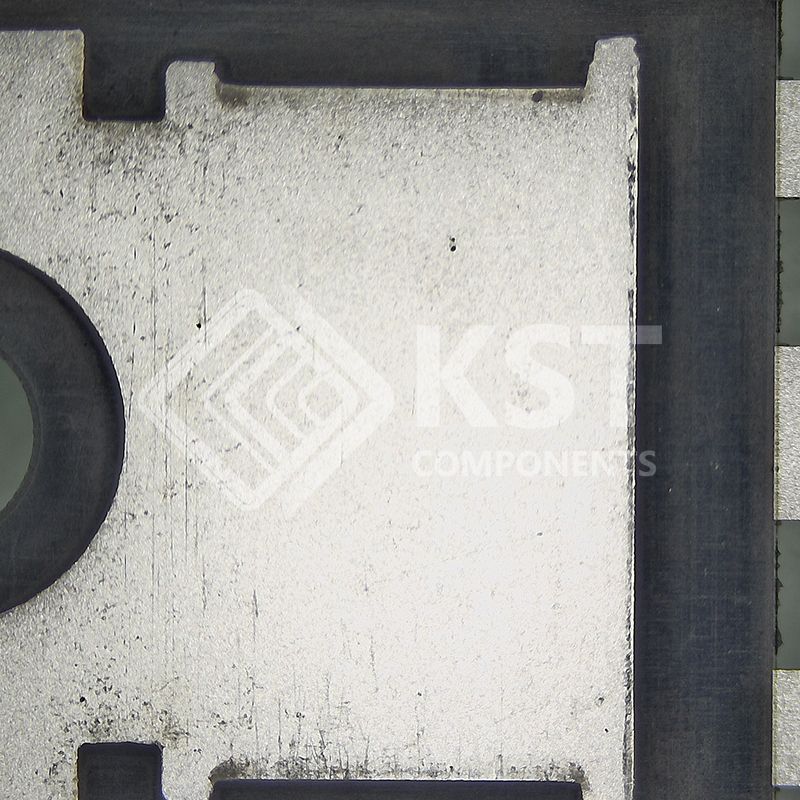

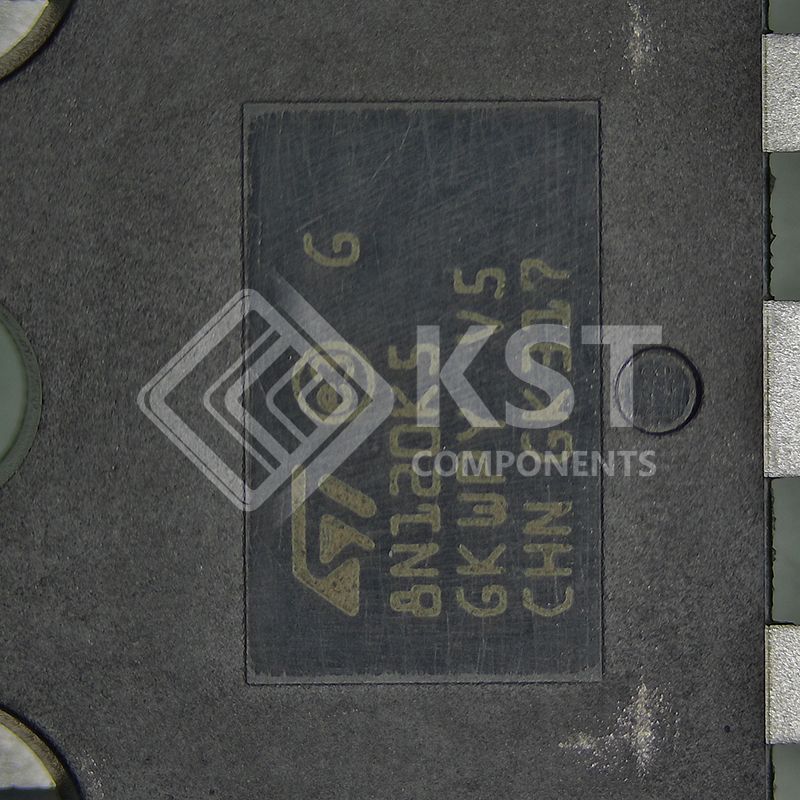

STW8N120K5
零件编号：
STW8N120K5
产品分类：
固态继电器（SSR）
制造商：
3M
描述：
MOSFET N-CH 1200V 6A TO247
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
MDmesh™ K5 |
|
|
Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
1200 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
6A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
10V
|
|
|
Rds On (Max) @ Id, Vgs |
2Ohm @ 2.5A, 10V
|
|
|
Vgs(th) (Max) @ Id |
5V @ 100µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
13.7 nC @ 10 V
|
|
|
Vgs (Max) |
±30V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
505 pF @ 100 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
130W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Through Hole
|
|
|
Supplier Device Package |
TO-247
|
|
|
Package / Case |
TO-247-3 |
|
|
Base Product Number |
STW8 |
