Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
STMicroelectronics |
|
|
Series |
-
|
|
|

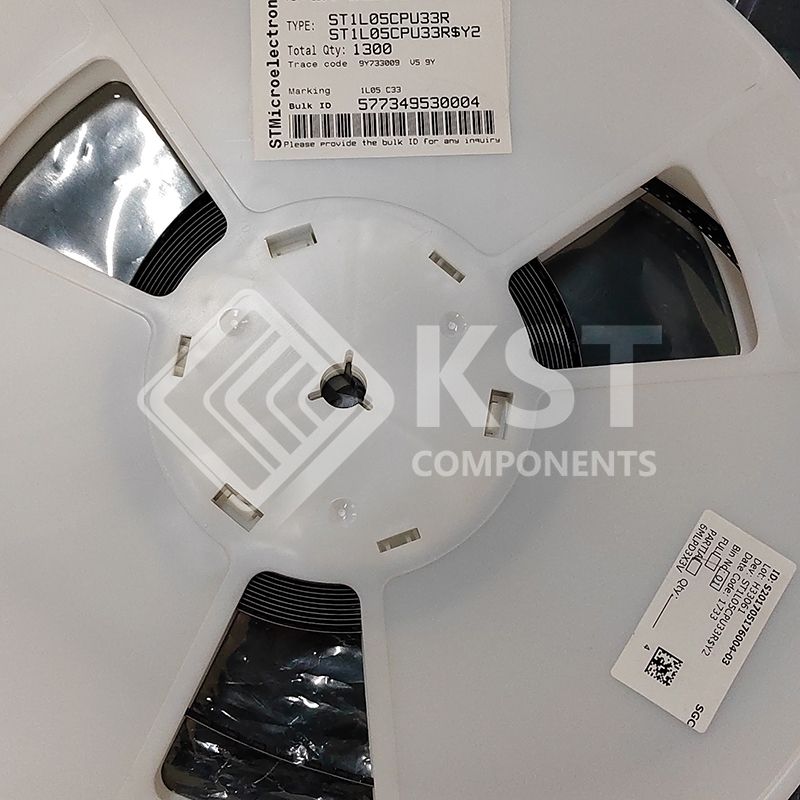

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
7V
|
|
|
Voltage - Output (Min/Fixed) |
3.3V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
0.5V @ 1.3A
|
|
|
Current - Output |
1.3A |
|
|
Current - Quiescent (Iq) |
650 µA
|
|
|
PSRR |
65dB (120Hz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature
|
|
|
Operating Temperature |
0°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

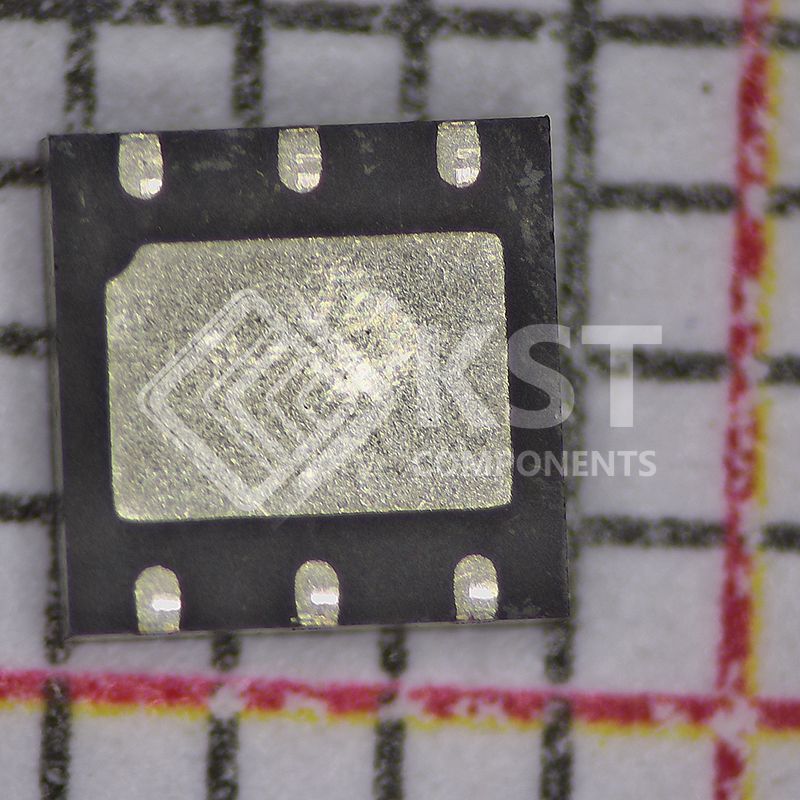

6-VDFN Exposed Pad
|
|
|
Supplier Device Package |
6-DFN (3x3)
|
|
|
Base Product Number |
ST1L05 |
