Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
Littelfuse Inc. |
|
|
Series |
SP3010, SPA® |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Steering (Rail to Rail)
|
|
|
Unidirectional Channels |
4
|
|
|
Voltage - Reverse Standoff (Typ) |
6V (Max)
|
|
|
Voltage - Breakdown (Min) |
-
|
|
|
Voltage - Clamping (Max) @ Ipp |
12.3V (Typ)
|
|
|
Current - Peak Pulse (10/1000µs) |
3A (8/20µs)
|
|
|
Power - Peak Pulse |
-
|
|
|
Power Line Protection |
Yes
|
|
|
Applications |
General Purpose
|
|
|
Capacitance @ Frequency |
-
|
|
|
Operating Temperature |
-40°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

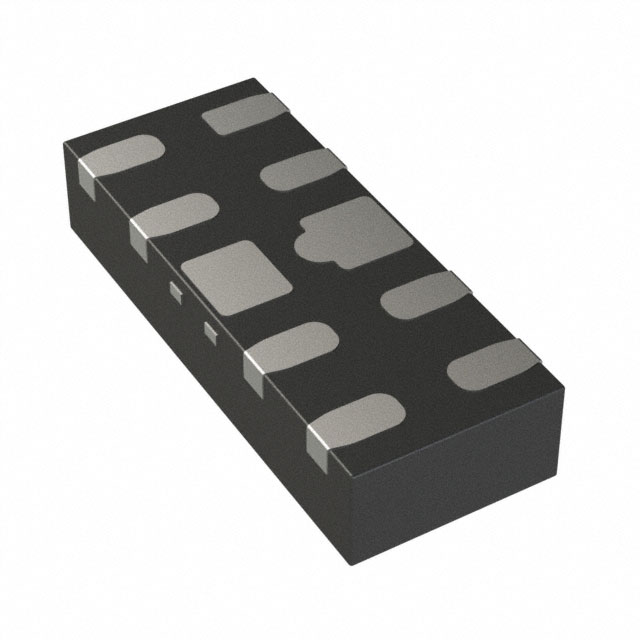

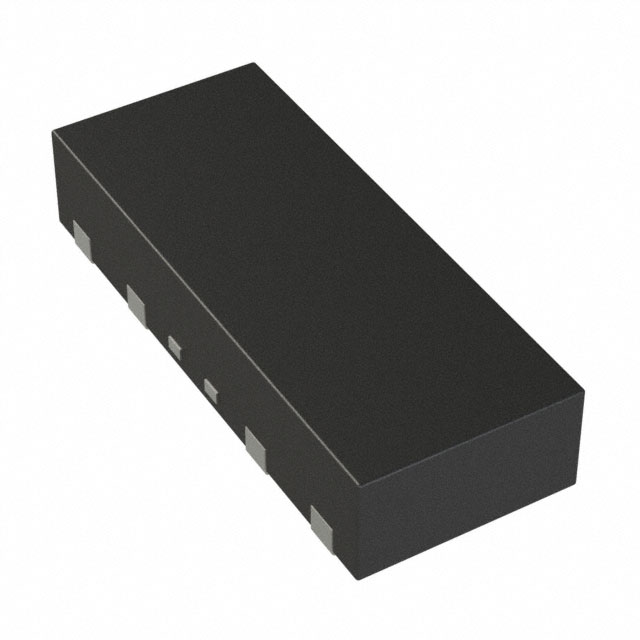

10-UFDFN
|
|
|
Supplier Device Package |
10-µDFN (2.5x1.0) |
