Category |
Circuit Protection
Transient Voltage Suppressors (TVS)
TVS Diodes
|
|
|
Mfr |
SMC Diode Solutions |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
|
Part Status |
Active
|
|
|
Type |
Zener
|
|
|
Bidirectional Channels |
2
|
|
|
Voltage - Reverse Standoff (Typ) |
12V (Max), 7V (Max)
|
|
|
Voltage - Breakdown (Min) |
13.3V, 7.5V
|
|
|
Voltage - Clamping (Max) @ Ipp |
26V, 12V
|
|
|
Current - Peak Pulse (10/1000µs) |
17A (8/20µs)
|
|
|
Power - Peak Pulse |
400W
|
|
|
Power Line Protection |
No
|
|
|
Applications |
General Purpose
|
|
|
Capacitance @ Frequency |
75pF @ 1MHz
|
|
|
Operating Temperature |
-55°C ~ 125°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|

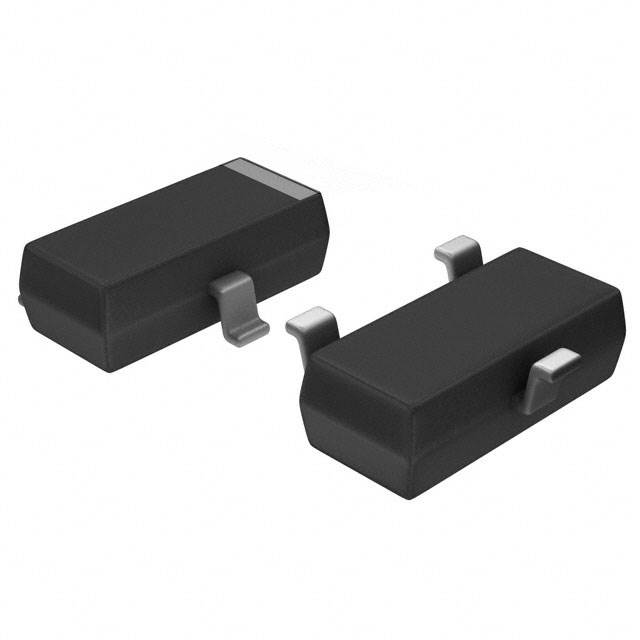

Package / Case |
TO-236-3, SC-59, SOT-23-3
|
|
|
Supplier Device Package |
SOT-23-3 |
