Worldwide FM band support
(64–109 MHz)
Worldwide AM band support
(504–1750 kHz)
SW band support
(2.3–28.5 MHz)
No manual alignment necessary
Mono audio output
Selectable support AM/FM/SW
regional bands
Enhanced FM/SW band coverage
Automatic frequency control (AFC)
Integrated LDO regulator
2.0 to 3.6 V supply voltage
Wide range of ferrite loop sticks and
air loop antennas supported

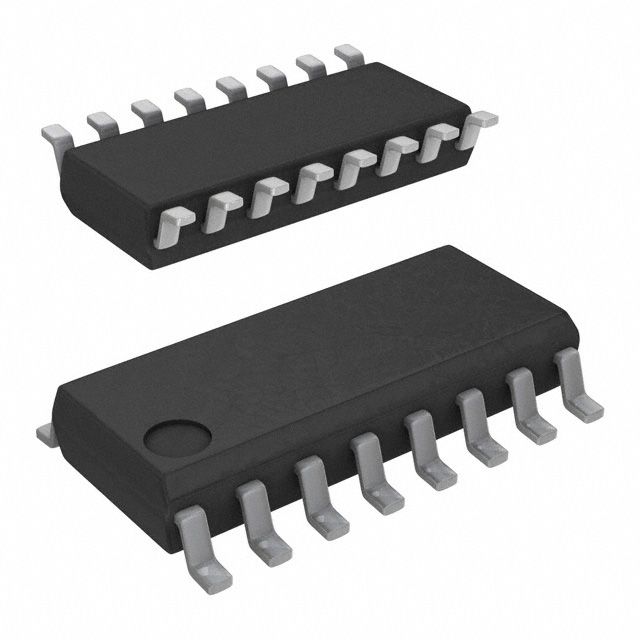

16-pin SOIC
RoHS-compliant
Direct volume control
Not EN55020 compliant*
*Note: For consumer applications that
require EN 55020 compliance,
use Si483x.
