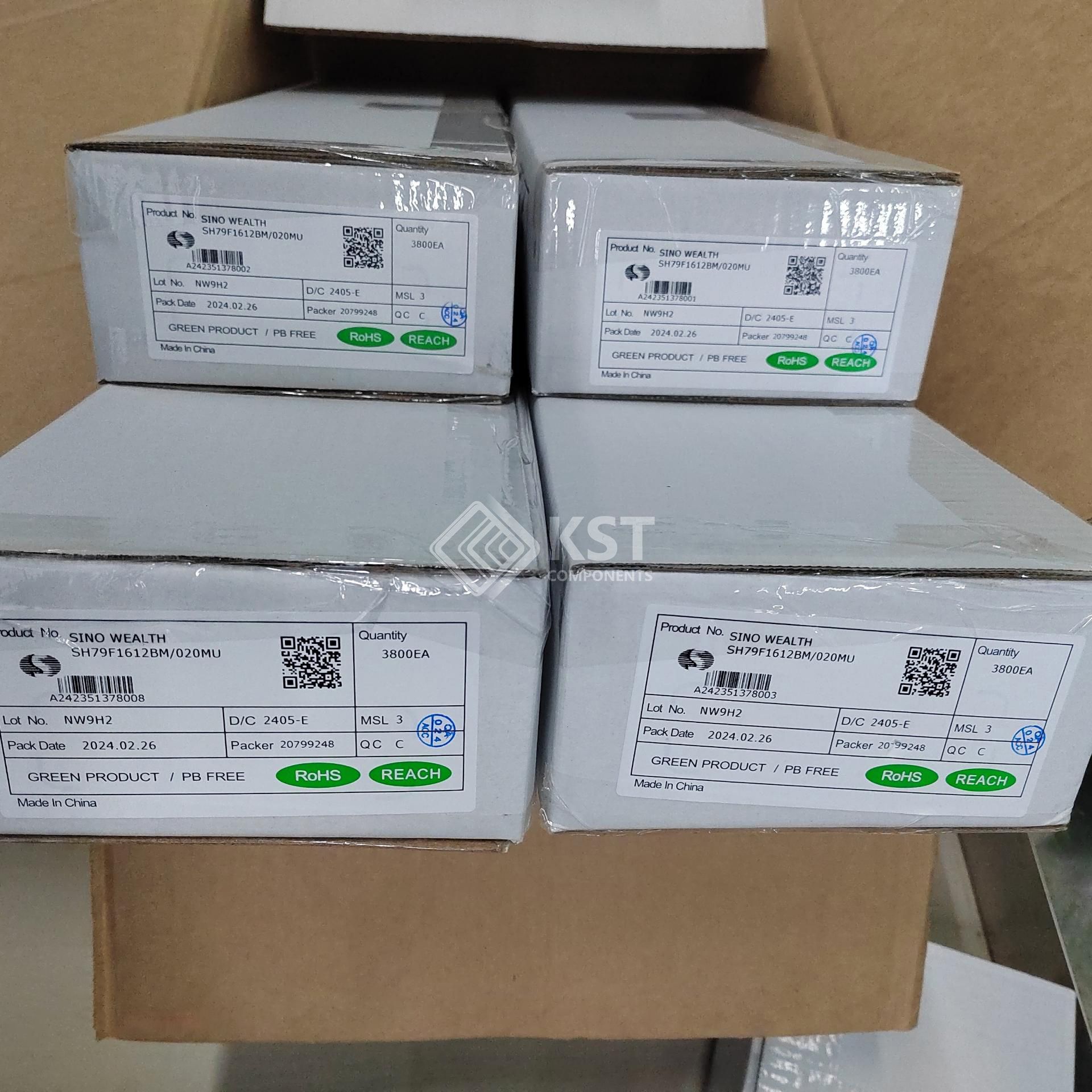

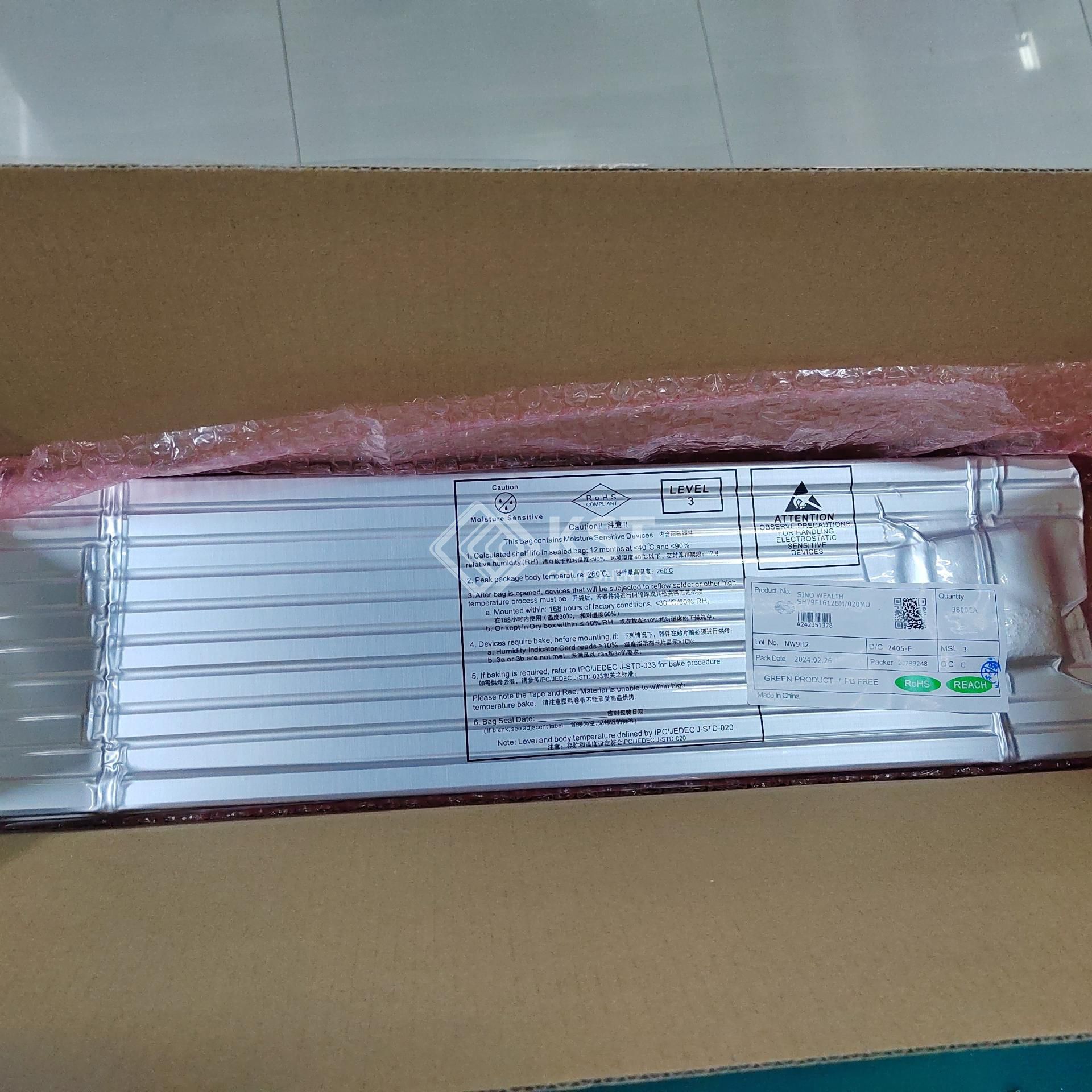

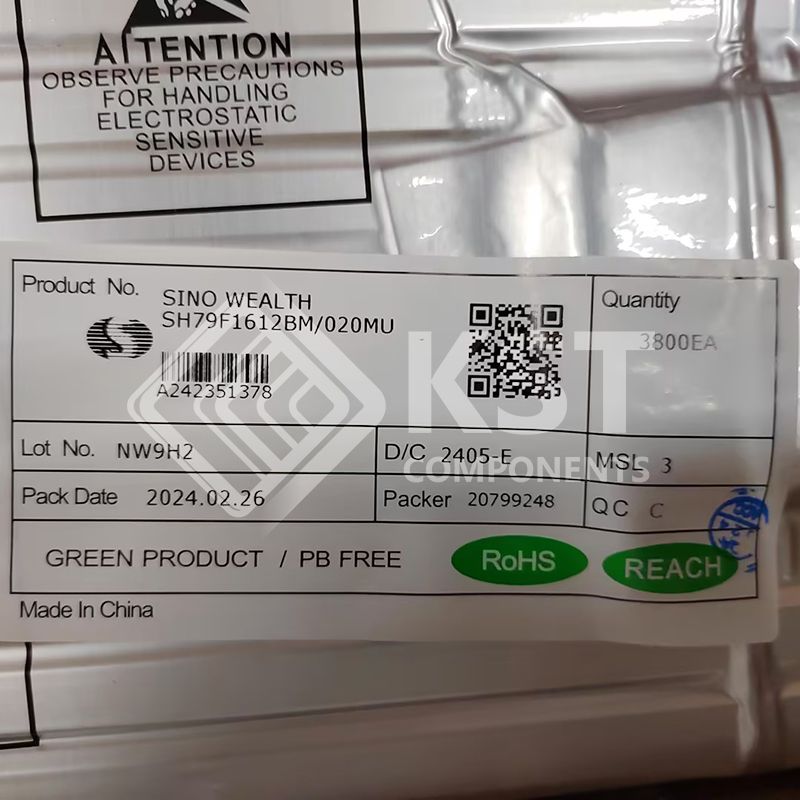

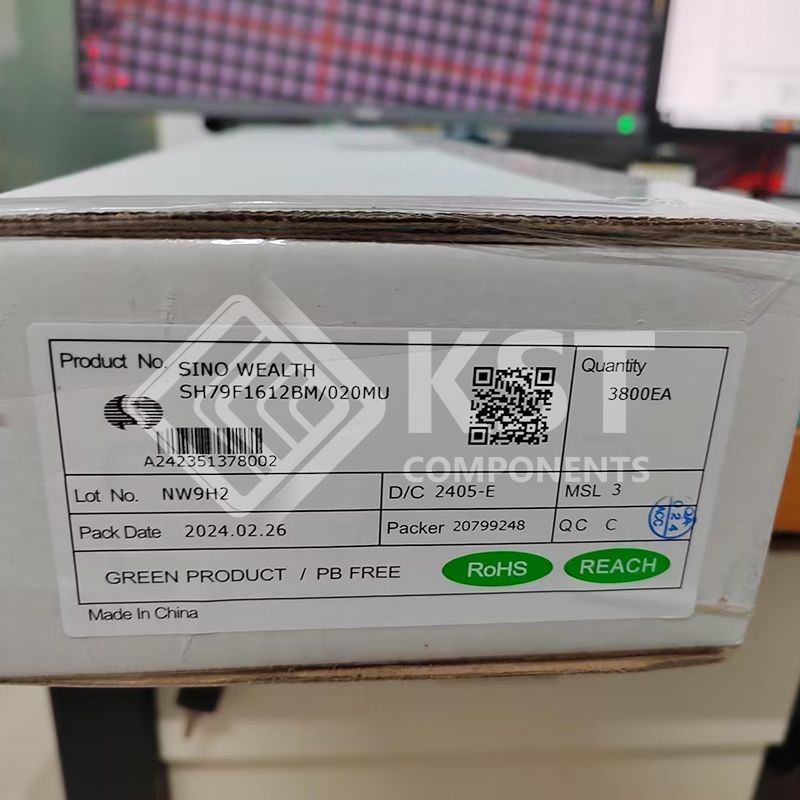

SH79F1612BM/020MU

Name: SH79F1612BM/020MU
Brand: Adoretek
SKU: SH79F1612BM/020MU
Availability: InStock

零件编号： SH79F1612BM/020MU

产品分类：开关转换器，SMPS 变压器

制造商： Adoretek

描述： The SH79F1612B is a high performance 8051 compatible micro-controller

包装： -

ROHS状态： No

货币： USD

数量

1. Features  8bits micro-controller with Pipe-line structured 8051 compatible instruction set  Flash ROM: 16K Bytes  RAM: internal 256 Bytes, external 256 Bytes, LCD RAM 19Bytes  EEPROM-like: 1K Bytes  Operation Voltage: fOSC = 32.768kHz - 12.3MHz, VDD = 2V - 5.5V  Oscillator (code option) - Crystal oscillator: 32.768kHz - Crystal oscillator: 2MHz - 12.3MHz - Ceramic oscillator: 2MHz - 12.3MHz - Internal RC: 12.3MHz (±2%)/128K  26 CMOS bi-directional I/O pins  8 large-current drive ports  Built-in pull-up resistor for input pin  Four 16-bit timer/counters T2, T3, T4 and T5  One 12-bit PWM  Powerful interrupt sources: - Timer2, 3, 4, 5 - INT2, 3 - INT40, INT41, INT42, INT43 - ADC, EUART, SCM, LPD - PWM  EUART0  6channels 10-bits Analog Digital Converter (ADC), with comparator function built-in  Buzzer  LED driver: - 4 X 8 dots (1/4 duty)  LCD driver: - 4 X 12 dots (1/4 duty 1/3 bias)  Low Voltage Reset (LVR) function (enabled by code option) - LVR voltage level 1: 4.3V - LVR voltage level 2: 2.1V  CPU Machine cycle: 1 oscillator clock  Watch Dog Timer (WDT)  Warm-up Timer  Support Low power operation modes: - Idle Mode - Power-Down Mode  Flash Type  Package: SOP28

SH79F1612BM/020MU

规格
