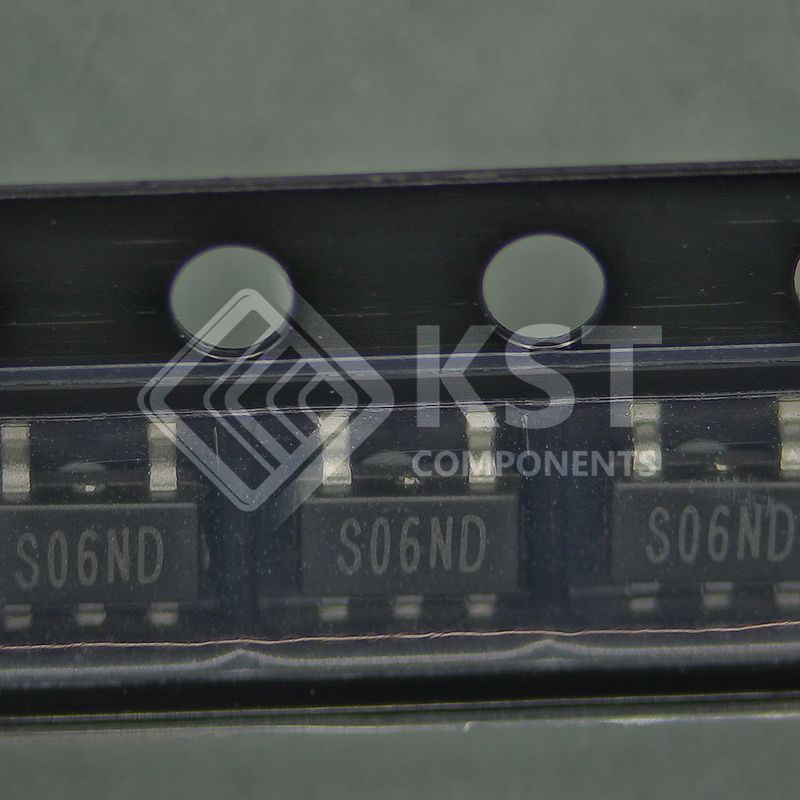

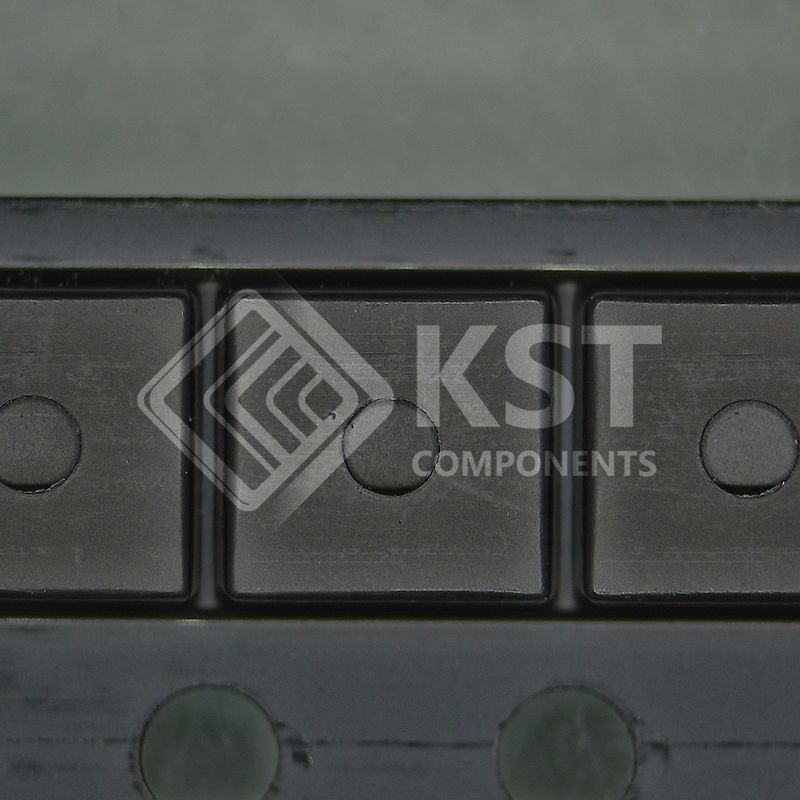

SGM8551XN5G/TR

ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	Unknown
PPAP	Unknown
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	1
Rail to Rail	Rail to Rail Input/Output
Maximum Input Offset Voltage (mV)	0.02@5V
Minimum Single Supply Voltage (V)	2.5
Maximum Single Supply Voltage (V)	5.5
Maximum Input Offset Current (uA)	0.000003(Typ)@5V
Typical Input Bias Current (uA)	0.000019@5V
Maximum Quiescent Current (mA)	0.553@5V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.84@5V
Typical Input Noise Voltage Density (nV/rtHz)	53@5V
Typical Voltage Gain (dB)	145
Minimum PSRR (dB)	90
Minimum CMRR (dB)	90
Minimum CMRR Range (dB)	90 to 95
Typical Gain Bandwidth Product (MHz)	1.48
Shut Down Support	No
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Extended Industrial/Automotive
Packaging	Tape and Reel
Mounting	Surface Mount
Package Height	1.15(Max)
Package Width	1.7(Max)
Package Length	3.02(Max)
PCB changed	5
Standard Package Name	SOT
Supplier Package	SOT-23
Pin Count	5
Lead Shape	Gull-wing

 Low Offset Voltage: 12μV (TYP) at +5V  Rail-to-Rail Input and Output Swing  2.5V to 5.5V Single Supply Operation  Voltage Gain: 145dB (TYP) at +5V  PSRR: 110dB (TYP)  CMRR: 105dB (TYP)  Ultra Low Input Bias Current: 19pA  Low Supply Current: 465μA (TYP)  Overload Recovery Time: 0.1ms (at VS = +5V)  No External Capacitors Required  -40℃ to +125℃ Operating Temperature Range  Available in Green SOT-23-5 Package
