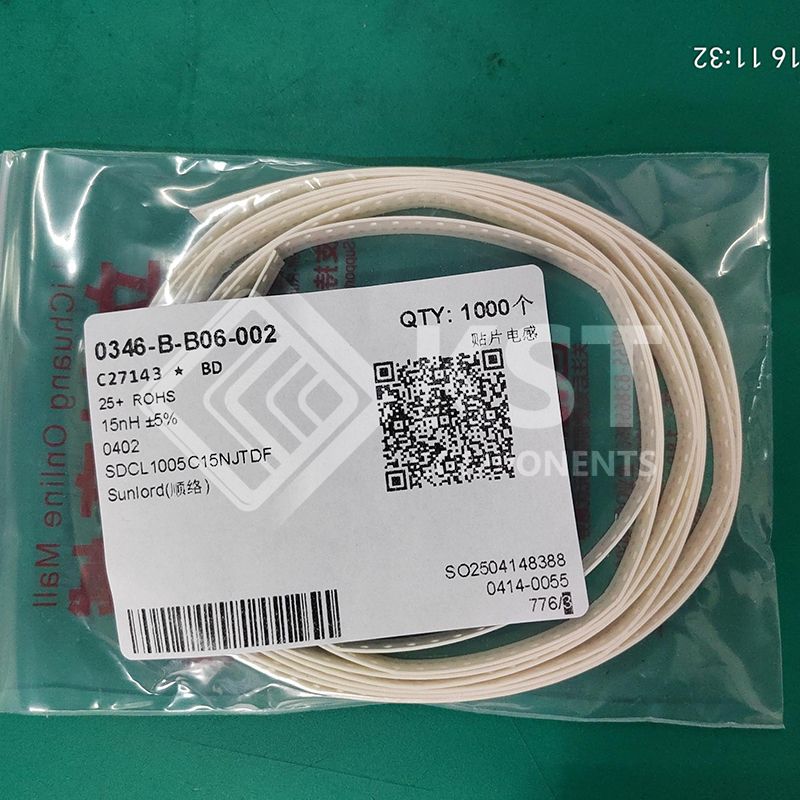

SDCL1005C15NJTDF
零件编号：
SDCL1005C15NJTDF
产品分类：
按钮开关 - 霍尔效应
制造商：
Times Microwave Systems
描述：
FIXED IND 15NH 300MA 500MOHM SMD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Shenzhen Sunlord Electronics Co., Ltd. |
|
|
Series |
SDCL-D |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Multilayer
|
|
|
Material - Core |
Ceramic |
|
|
Inductance |
15 nH
|
|
|
Tolerance |
±5%
|
|
|
Current Rating (Amps) |
300 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
500mOhm Max
|
|
|
Q @ Freq |
8 @ 100MHz
|
|
|
Frequency - Self Resonant |
2.3GHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 MHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
0402 (1005 Metric)
|
|
|
Supplier Device Package |
0402
|
|
|
Size / Dimension |
0.039" L x 0.020" W (1.00mm x 0.50mm)
|
|
|
Height - Seated (Max) |
0.026" (0.65mm)
|
