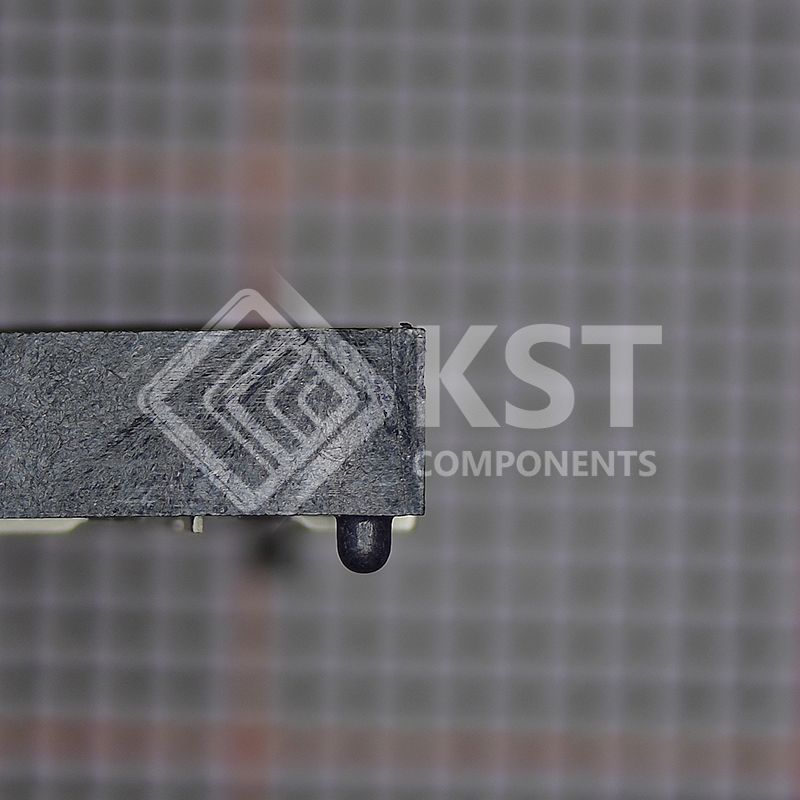

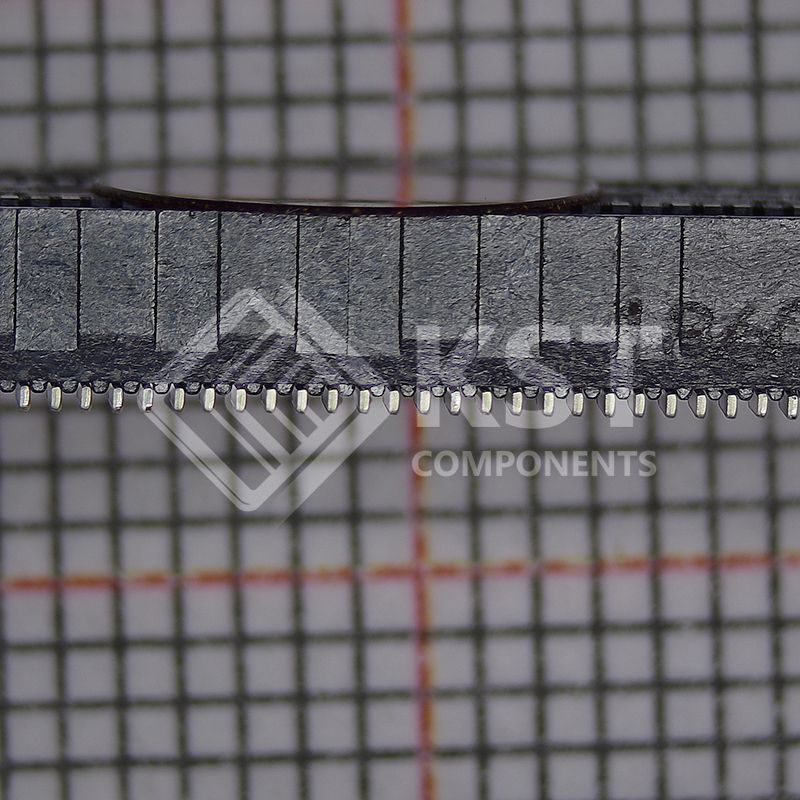

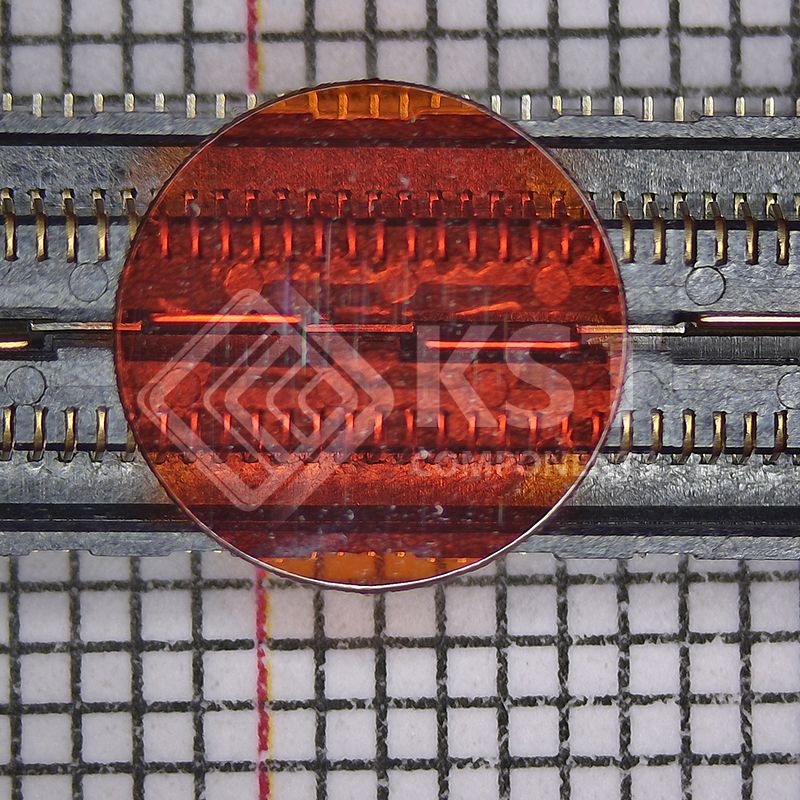

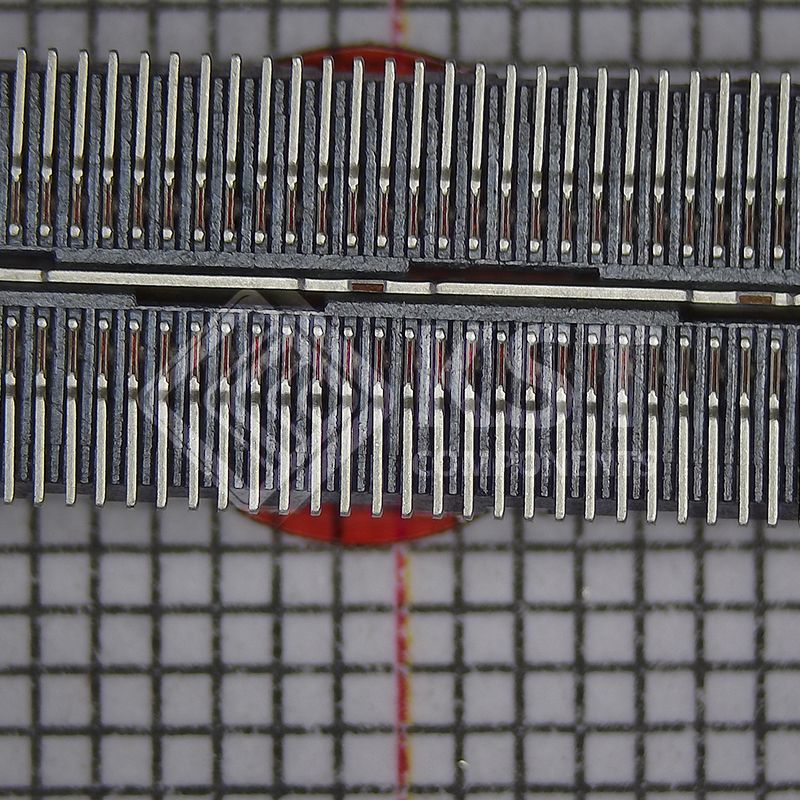

QSH-030-01-F-D-A-K-TR
零件编号：
QSH-030-01-F-D-A-K-TR
产品分类：
挖斗、钩子、探针、探针工具、调谐工具
制造商：
3DXTECH
描述：
CONN RCPT 60POS SMD GOLD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
Rectangular Connectors
Arrays, Edge Type, Mezzanine (Board to Board)
|
|
|
Manufacturer |
Samtec Inc.
|
|
|
Series |
Q Strip® QSH |
|
|

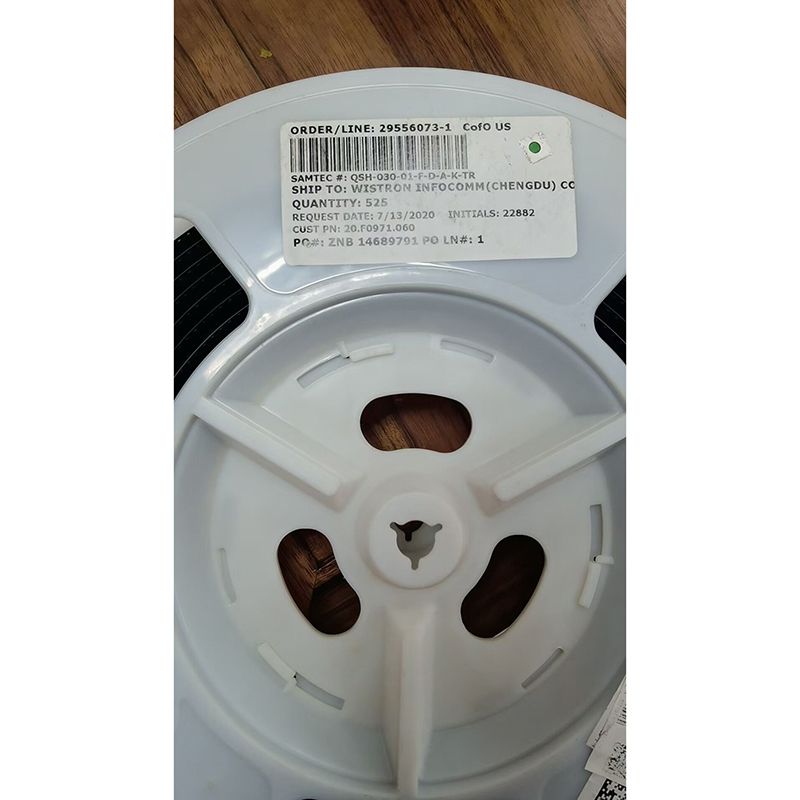

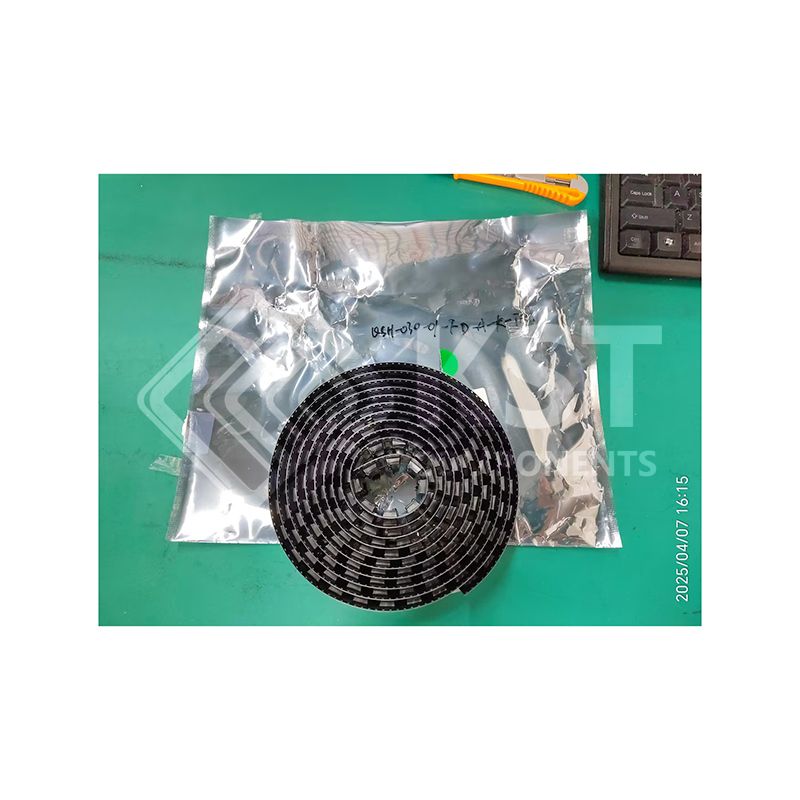

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Receptacle, Center Strip Contacts
|
|
|
Number of Positions |
60
|
|
|
Pitch |
0.020" (0.50mm)
|
|
|
Number of Rows |
2
|
|
|
Mounting Type |
Surface Mount
|
|
|
Features |
Board Guide, Ground Bus (Plane), Pick and Place
|
|
|
Contact Finish |
Gold
|
|
|
Contact Finish Thickness |
3.00µin (0.076µm)
|
|
|
Mated Stacking Heights |
5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
|
|
|
Height Above Board |
0.128" (3.25mm)
|
|
|
Base Product Number |
QSH-030 |
