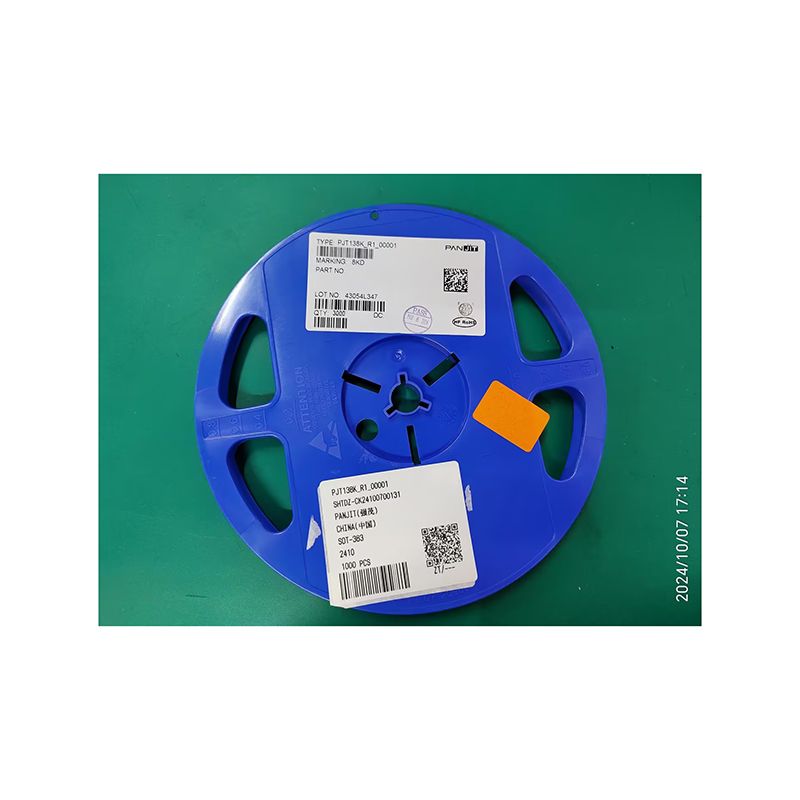

PJT138K_R1_00001
零件编号：
PJT138K_R1_00001
产品分类：
固态继电器（SSR）
制造商：
Antenna Technologies Limited Company
描述：
MOSFET 2N-CH 50V 0.36A SOT363
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
FET, MOSFET Arrays
|
|
|
Manufacturer |
Panjit International Inc.
|
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Technology |
MOSFET (Metal Oxide)
|
|
|
Configuration |
2 N-Channel (Dual)
|
|
|
FET Feature |
-
|
|
|
Drain to Source Voltage (Vdss) |
50V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
360mA (Ta)
|
|
|
Rds On (Max) @ Id, Vgs |
1.6Ohm @ 500mA, 10V
|
|
|
Vgs(th) (Max) @ Id |
1.5V @ 250µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
1nC @ 4.5V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
50pF @ 25V
|
|
|
Power - Max |
236mW (Ta)
|
|
|
Operating Temperature |
-55°C ~ 150°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
6-TSSOP, SC-88, SOT-363
|
|
|
Supplier Device Package |
SOT-363
|
|
|
Base Product Number |
PJT138 |
