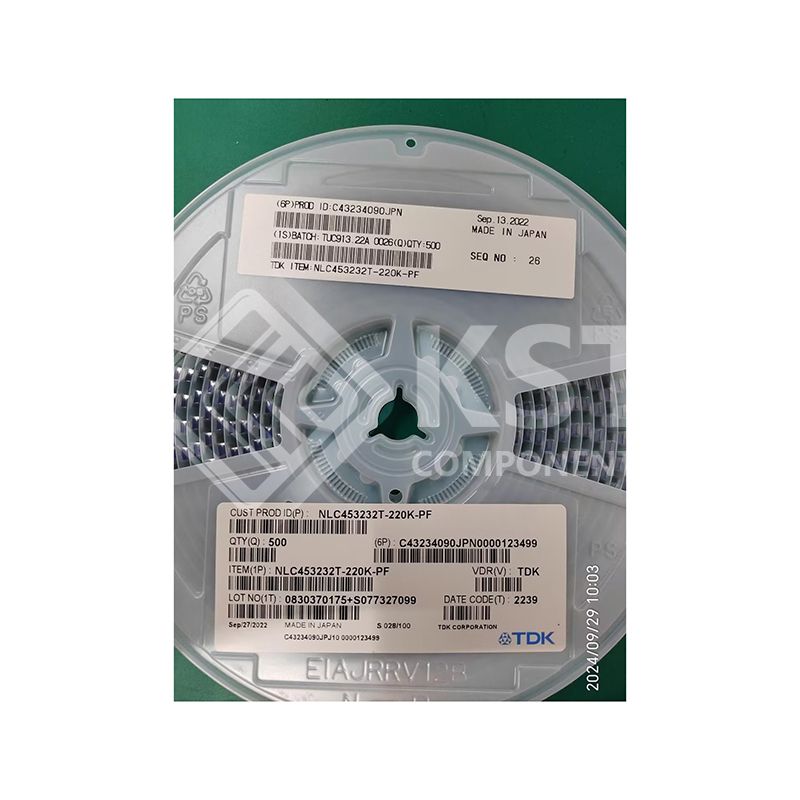

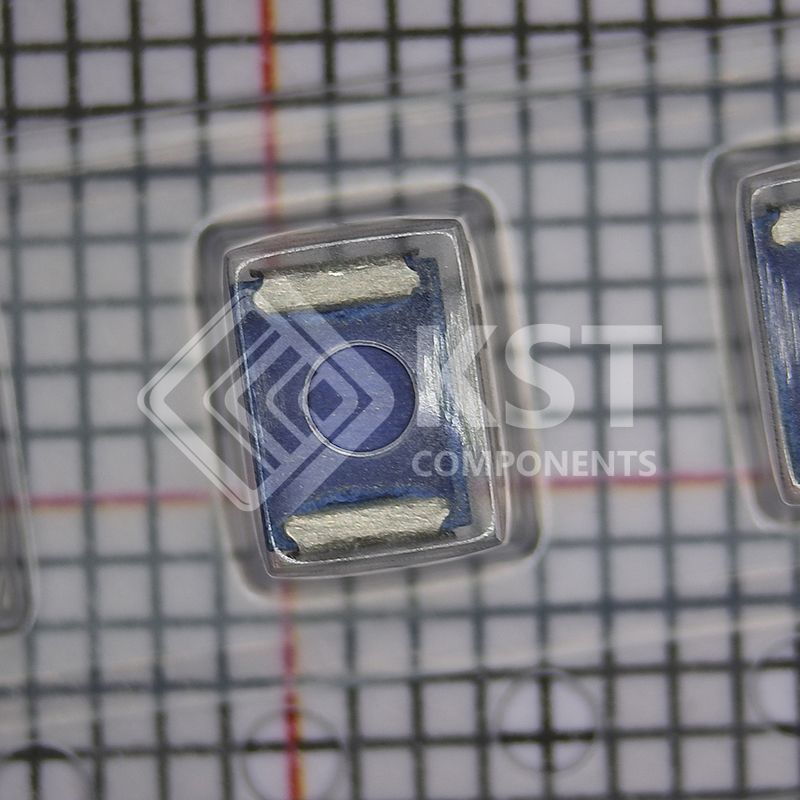

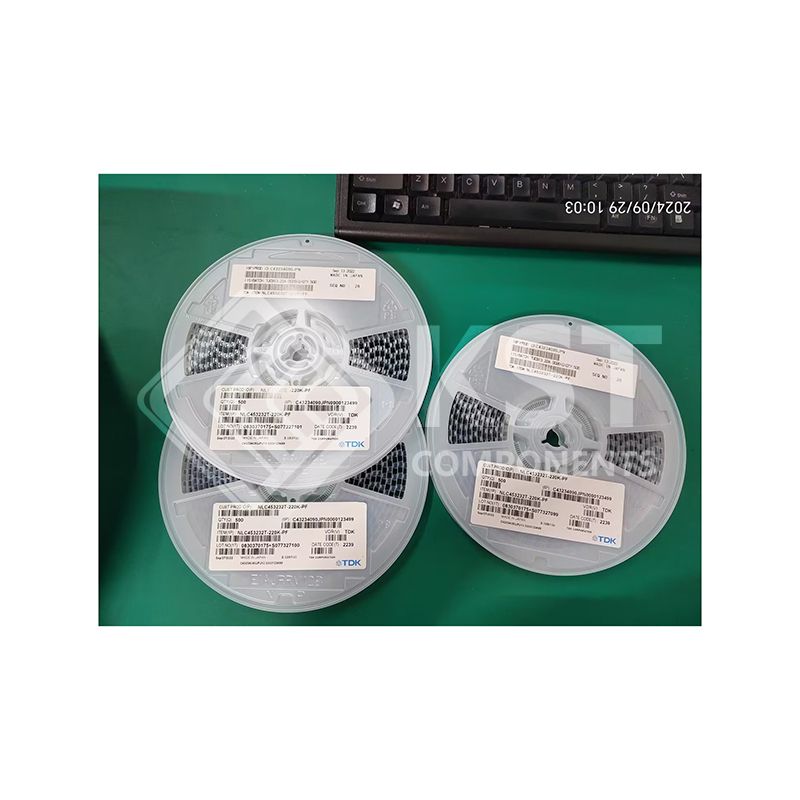

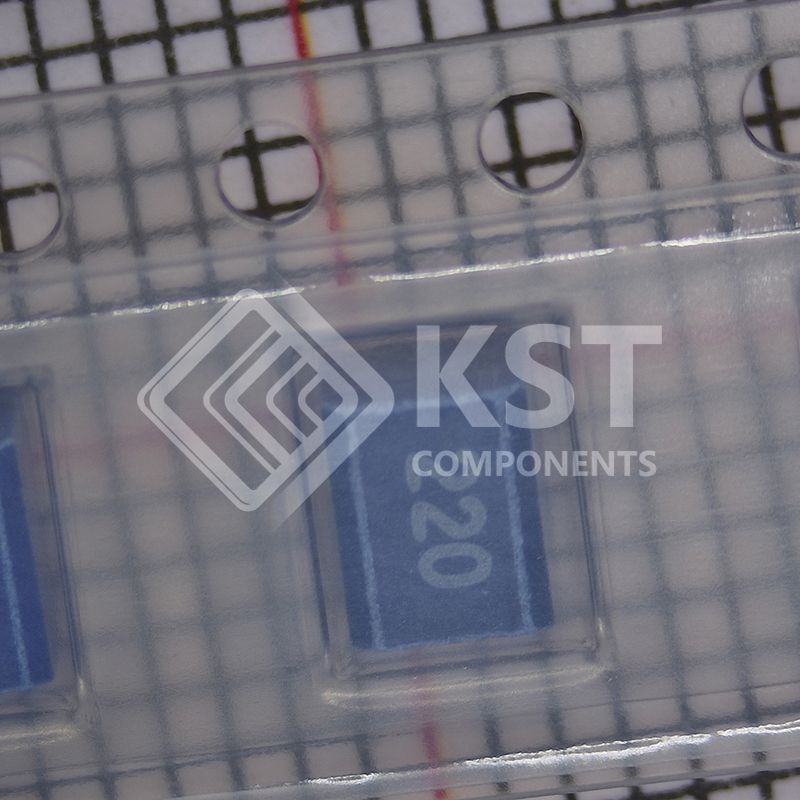

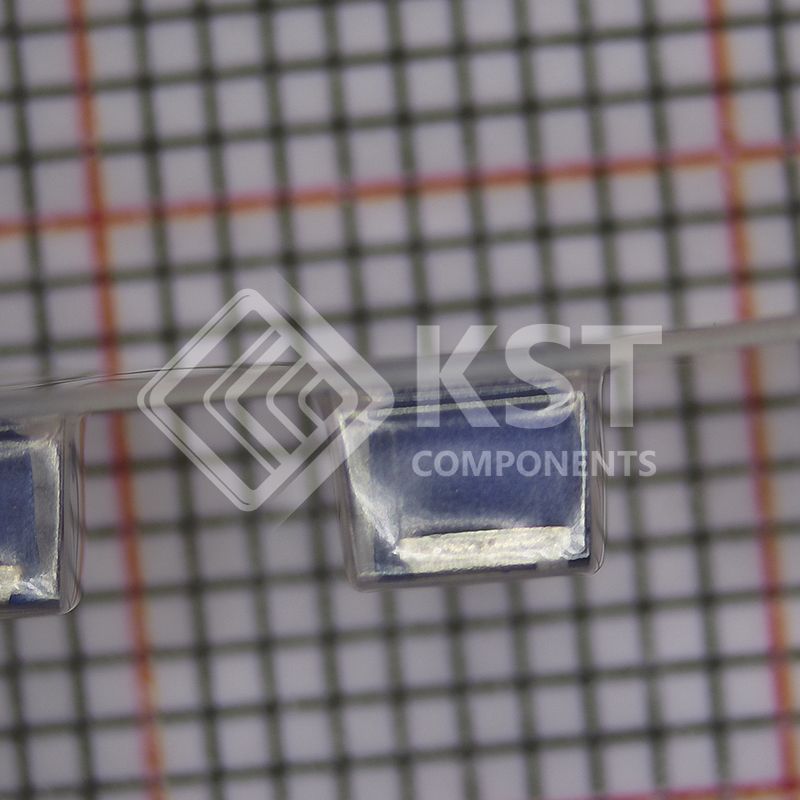

NLC453232T-220K-PF
零件编号：
NLC453232T-220K-PF
产品分类：
按钮开关 - 霍尔效应
制造商：
Essentra Components
描述：
FIXED IND 22UH 370MA 900MOHM SMD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
TDK Corporation |
|
|
Series |
NLC |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Obsolete
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Ferrite |
|
|
Inductance |
22 µH
|
|
|
Tolerance |
±10%
|
|
|
Current Rating (Amps) |
370 mA |
|
|
Current - Saturation (Isat) |
-
|
|
|
Shielding |
Unshielded
|
|
|
DC Resistance (DCR) |
900mOhm Max
|
|
|
Q @ Freq |
10 @ 2.52MHz
|
|
|
Frequency - Self Resonant |
18MHz
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-40°C ~ 105°C
|
|
|
Inductance Frequency - Test |
2.52 MHz
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
1812 (4532 Metric)
|
|
|
Supplier Device Package |
1812
|
|
|
Size / Dimension |
0.177" L x 0.126" W (4.50mm x 3.20mm)
|
|
|
Height - Seated (Max) |
0.134" (3.40mm)
|
