Category |
Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
|
|
|
Manufacturer |
onsemi
|
|
|
Series |
-
|
|
|
Packaging |

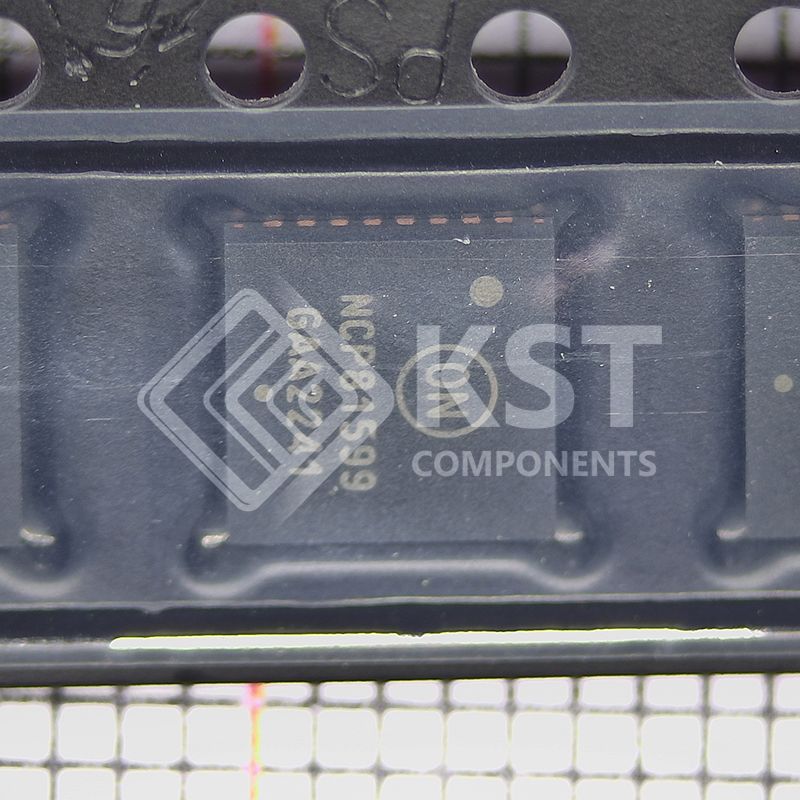

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Type |
Transistor Driver
|
|
|
Function |
Step-Up/Step-Down
|
|
|
Output Configuration |
Positive
|
|
|
Topology |
Buck, Boost
|
|
|
Number of Outputs |
4
|
|
|
Output Phases |
2
|
|
|
Voltage - Supply (Vcc/Vdd) |
4.5V ~ 28V
|
|
|
Frequency - Switching |
150kHz ~ 1.2MHz
|
|
|
Duty Cycle (Max) |
-
|
|
|
Synchronous Rectifier |
Yes
|
|
|
Clock Sync |
-
|
|
|
Serial Interfaces |
I2C
|
|
|
Control Features |
Current Limit, Enable, Frequency Control, Power Good, Ramp, Soft Start, Tracking
|
|
|
Operating Temperature |
-40°C ~ 125°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

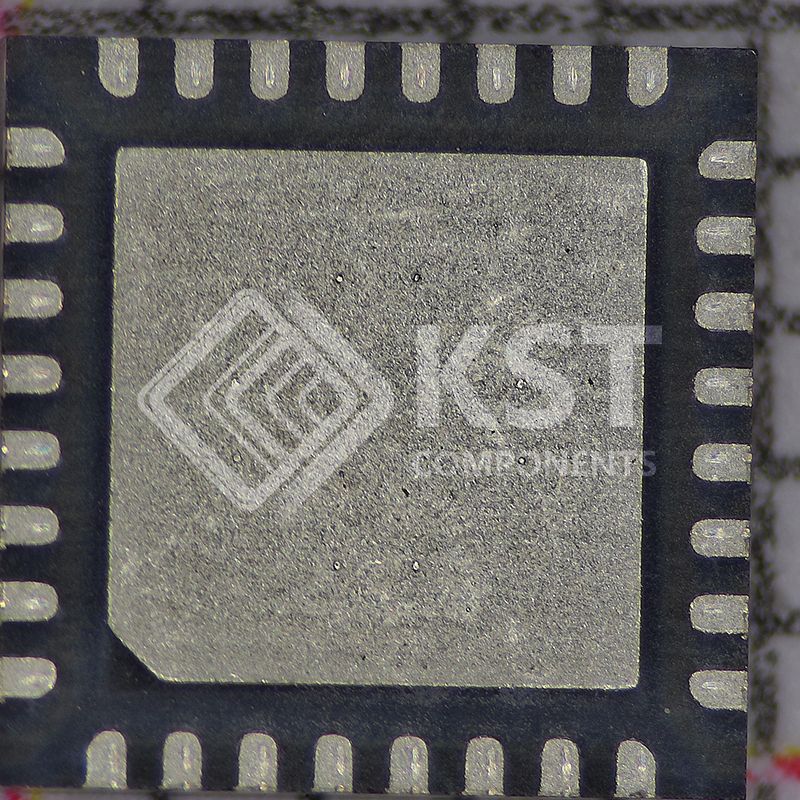

32-VFQFN Exposed Pad
|
|
|
Supplier Device Package |
32-QFN (5x5)
|
|
|
Base Product Number |

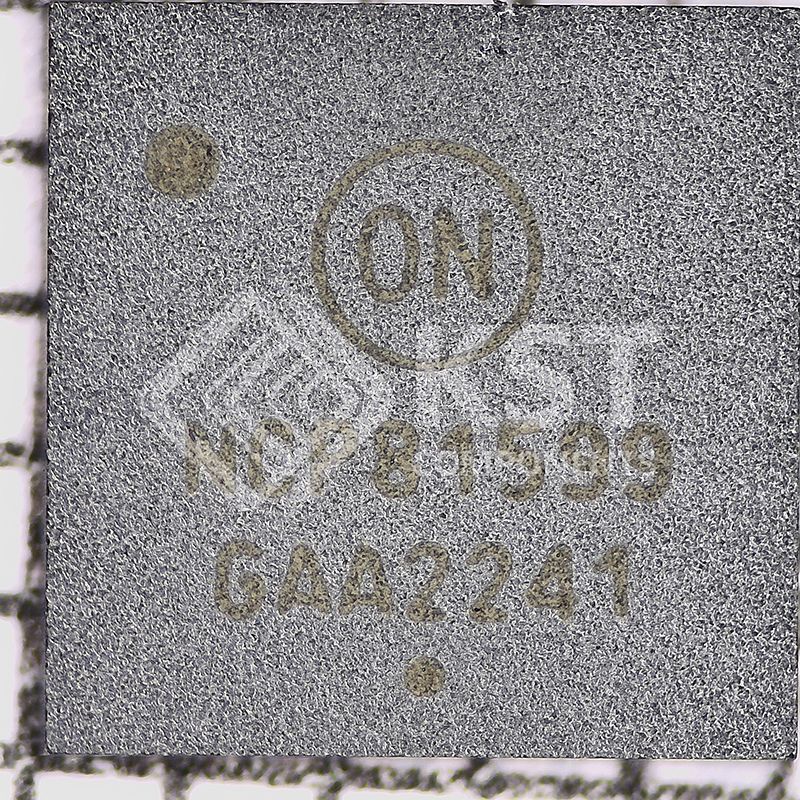

NCP81599 |
