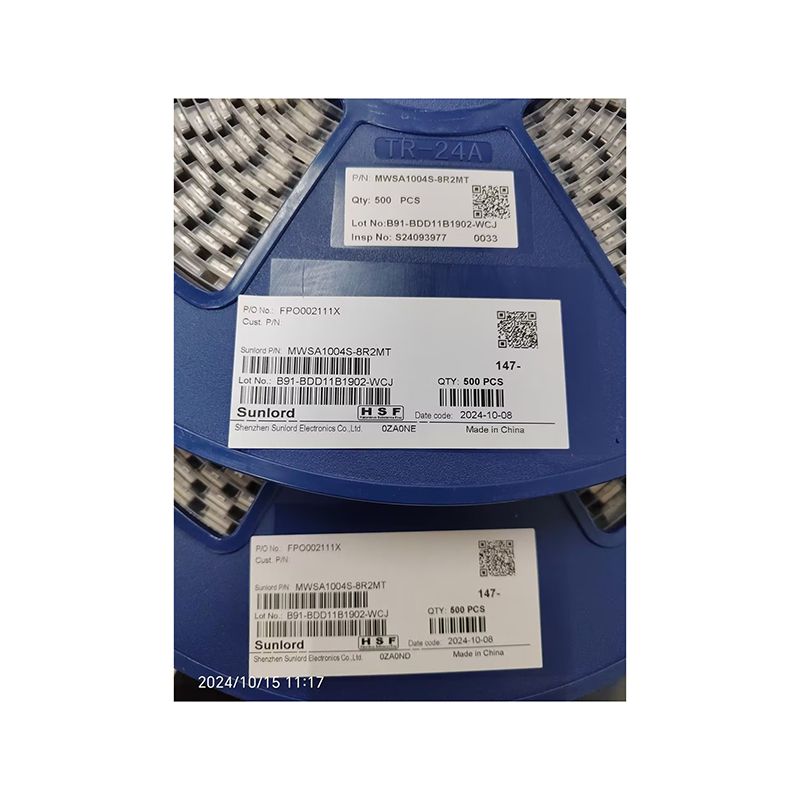

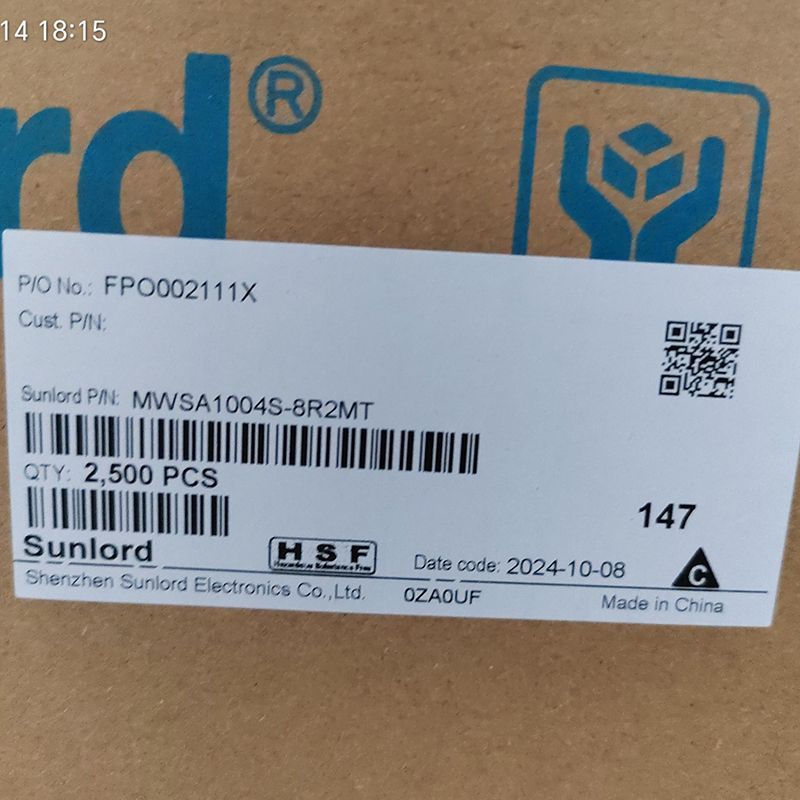

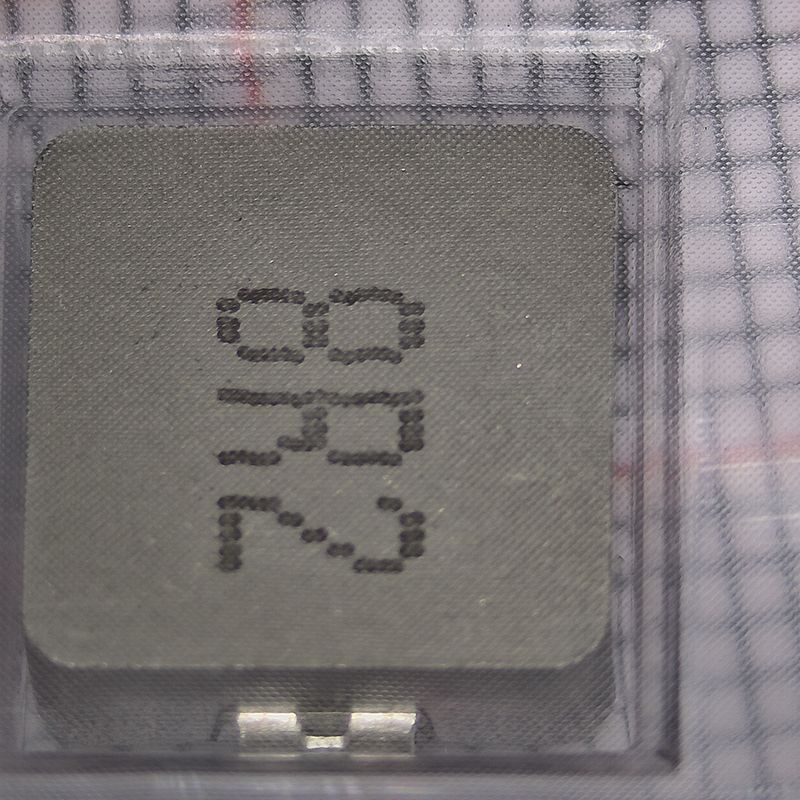

MWSA1004S-8R2MT
零件编号：
MWSA1004S-8R2MT
产品分类：
按钮开关 - 霍尔效应
制造商：
Times Microwave Systems
描述：
FIXED IND 8.2UH 8A 27 MOHM SMD
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Inductors, Coils, Chokes
Fixed Inductors
|
|
|
Mfr |
Shenzhen Sunlord Electronics Co., Ltd. |
|
|
Series |
MWSA-S |
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Type |
Drum Core, Wirewound
|
|
|
Material - Core |
Alloy Powder |
|
|
Inductance |
8.2 µH
|
|
|
Tolerance |
±20%
|
|
|
Current Rating (Amps) |
8 A |
|
|
Current - Saturation (Isat) |
9A
|
|
|
Shielding |
Shielded
|
|
|
DC Resistance (DCR) |
27mOhm Max
|
|
|
Q @ Freq |
-
|
|
|
Frequency - Self Resonant |
-
|
|
|
Ratings |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Inductance Frequency - Test |
100 kHz
|
|
|
Features |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
Nonstandard
|
|
|
Supplier Device Package |
-
|
|
|
Size / Dimension |
0.453" L x 0.394" W (11.50mm x 10.00mm)
|
|
|
Height - Seated (Max) |
0.157" (4.00mm)
|
|
|
Base Product Number |
MWSA1004S |
