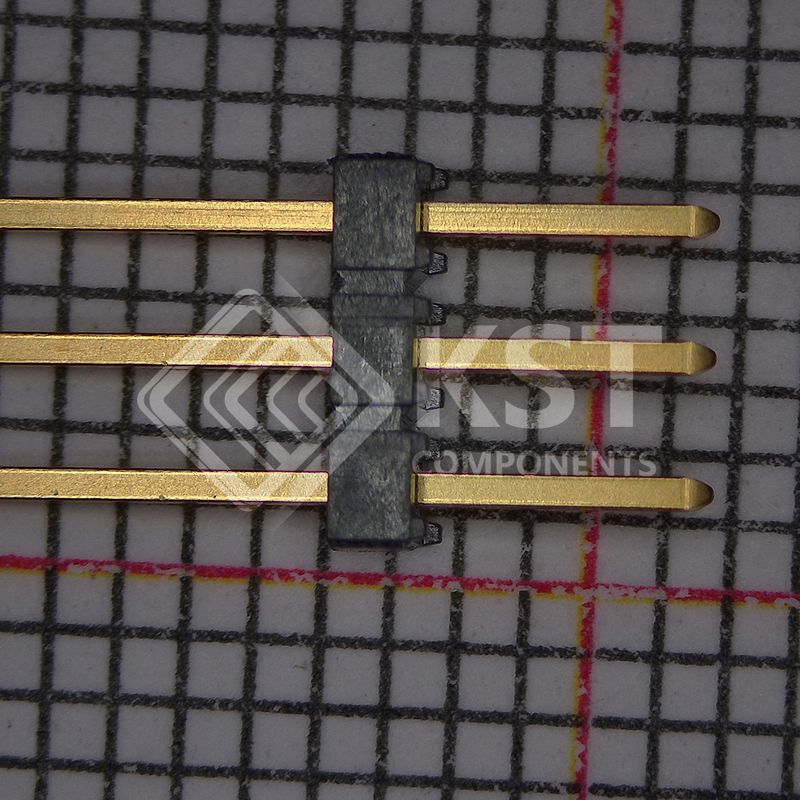

MTMM-103-07-G-S-236
零件编号：
MTMM-103-07-G-S-236
产品分类：
挖斗、钩子、探针、探针工具、调谐工具
制造商：
3DXTECH
描述：
CONN HEADER VERT 3POS 2MM
包装：
-
ROHS状态：
No
货币：
USD
PDF：
资料
|
Category |
Connectors, Interconnects
Rectangular Connectors
Headers, Male Pins
|
|
|
Mfr |
Samtec Inc. |
|
|
Series |
MTMM |
|
|
Packaging |
Bulk
|
|
|
Part Status |
Active
|
|
|
Connector Type |
Header, Cuttable |
|
|
Contact Type |
Male Pin
|
|
|
Pitch - Mating |
0.079" (2.00mm) |
|
|
Number of Positions |
3 |
|
|
Number of Rows |
1
|
|
|
Row Spacing - Mating |
-
|
|
|
Number of Positions Loaded |
All
|
|
|
Style |
Board to Board or Cable |
|
|
Shrouding |
Unshrouded
|
|
|
Mounting Type |
Through Hole |
|
|
Termination |
Solder
|
|
|
Fastening Type |
Push-Pull
|
|
|
Contact Length - Mating |
0.236" (6.00mm)
|
|
|
Contact Length - Post |
0.161" (4.09mm)
|
|
|
Overall Contact Length |
0.456" (11.58mm)
|
|
|
Insulation Height |
0.059" (1.50mm)
|
|
|
Contact Shape |
Square
|
|
|
Contact Finish - Mating |
Gold
|
|
|
Contact Finish Thickness - Mating |
20.0µin (0.51µm)
|
|
|
Contact Finish - Post |
Gold
|
|
|
Contact Material |
Phosphor Bronze
|
|
|
Insulation Material |
Liquid Crystal Polymer (LCP)
|
|
|
Features |
-
|
|
|
Operating Temperature |
-55°C ~ 125°C
|
|
|
Ingress Protection |
-
|
|
|
Material Flammability Rating |
UL94 V-0
|
|
|
Insulation Color |
Black
|
|
|
Current Rating (Amps) |
3A
|
|
|
Voltage Rating |
-
|
|
|
Mated Stacking Heights |
-
|
|
|
Contact Finish Thickness - Post |
3.00µin (0.076µm)
|
|
|
Applications |
-
|
|
|
Base Product Number |
MTMM-103 |
