Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
onsemi |
|
|
Series |
-
|
|
|

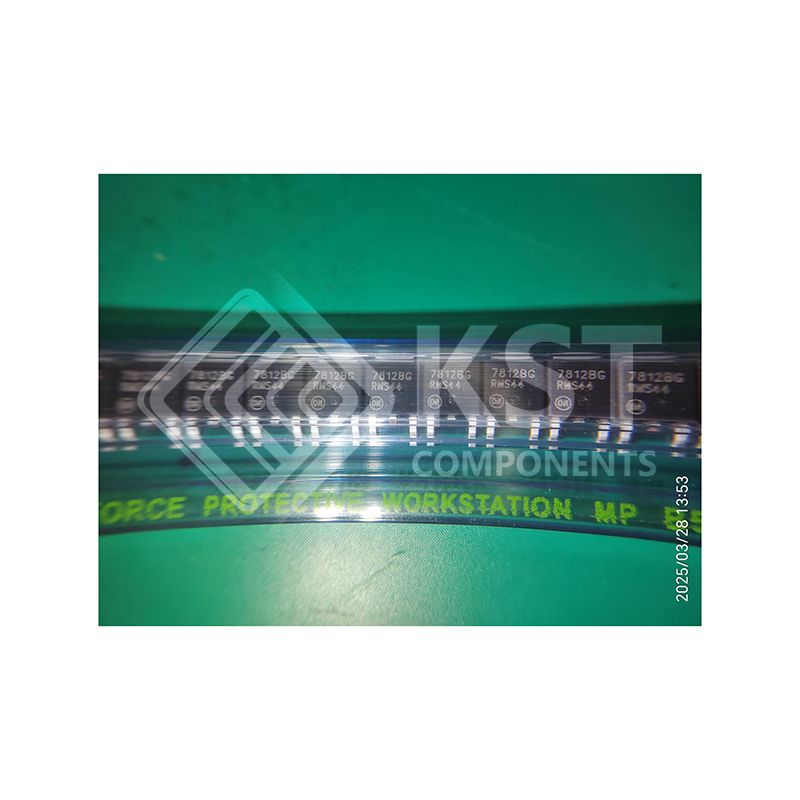

Packaging |
Tube
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Fixed |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
35V
|
|
|
Voltage - Output (Min/Fixed) |
12V
|
|
|
Voltage - Output (Max) |
-
|
|
|
Voltage Dropout (Max) |
2V @ 1A (Typ)
|
|
|
Current - Output |
1A |
|
|
Current - Quiescent (Iq) |
8 mA
|
|
|
PSRR |
60dB (1kHz)
|
|
|
Control Features |
-
|
|
|
Protection Features |
Over Temperature, Short Circuit
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|

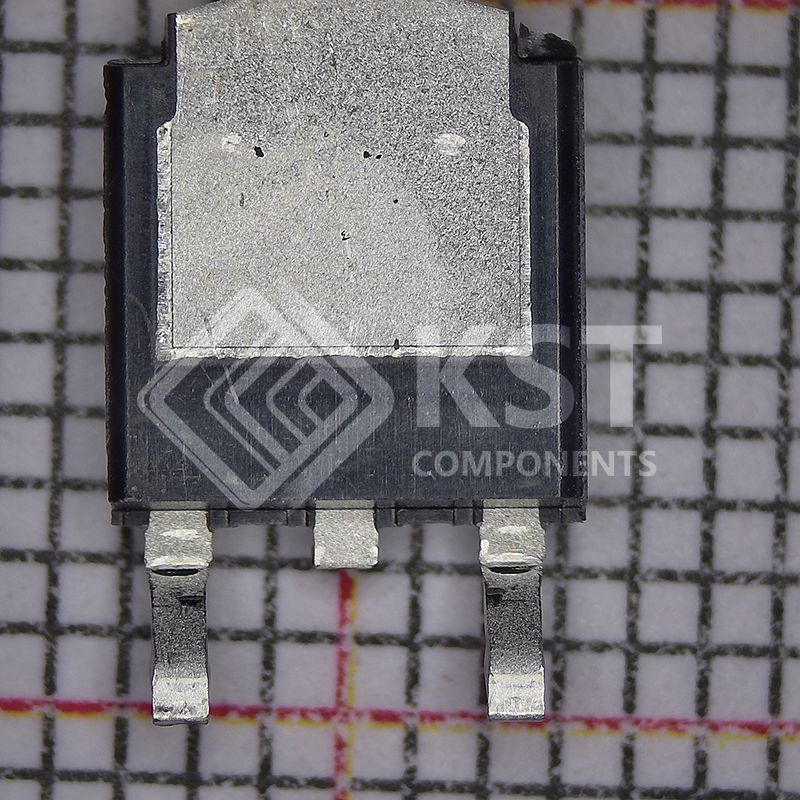

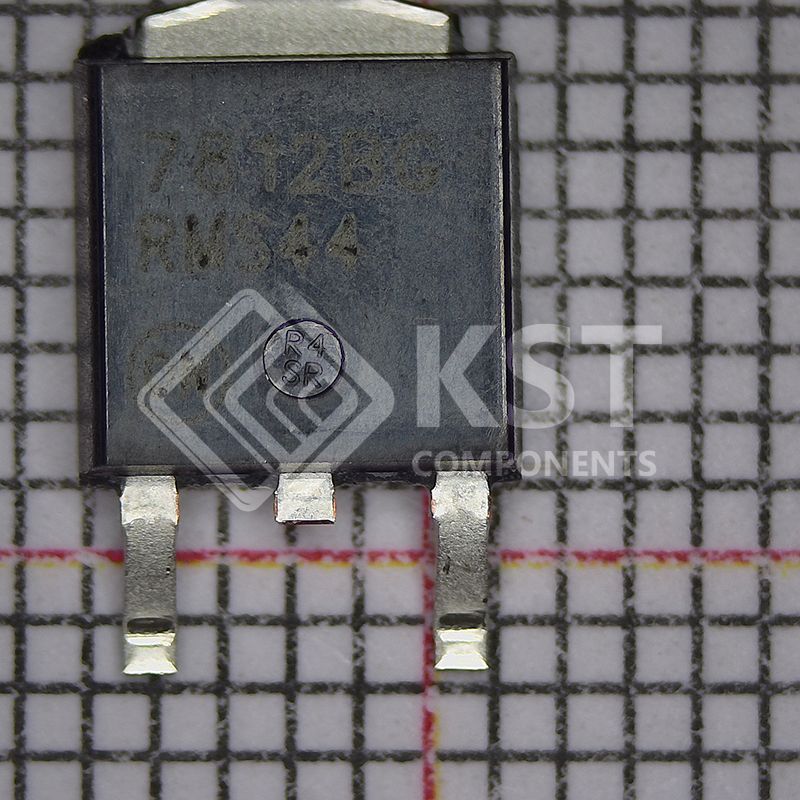

Package / Case |
TO-252-3, DPAK (2 Leads + Tab), SC-63
|
|
|
Supplier Device Package |
DPAK
|
|
|
Base Product Number |
MC7812 |
