Category |
Integrated Circuits (ICs)
Power Management (PMIC)
DC DC Switching Controllers
|
|
|
Manufacturer |
Analog Devices Inc.
|
|
|
Series |
-
|
|
|
Packaging |

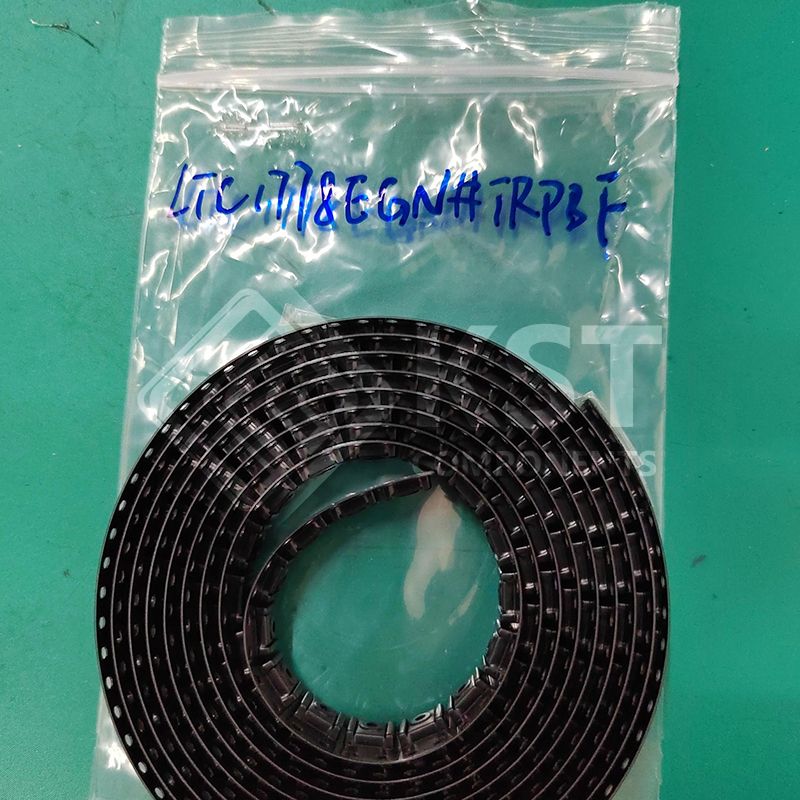

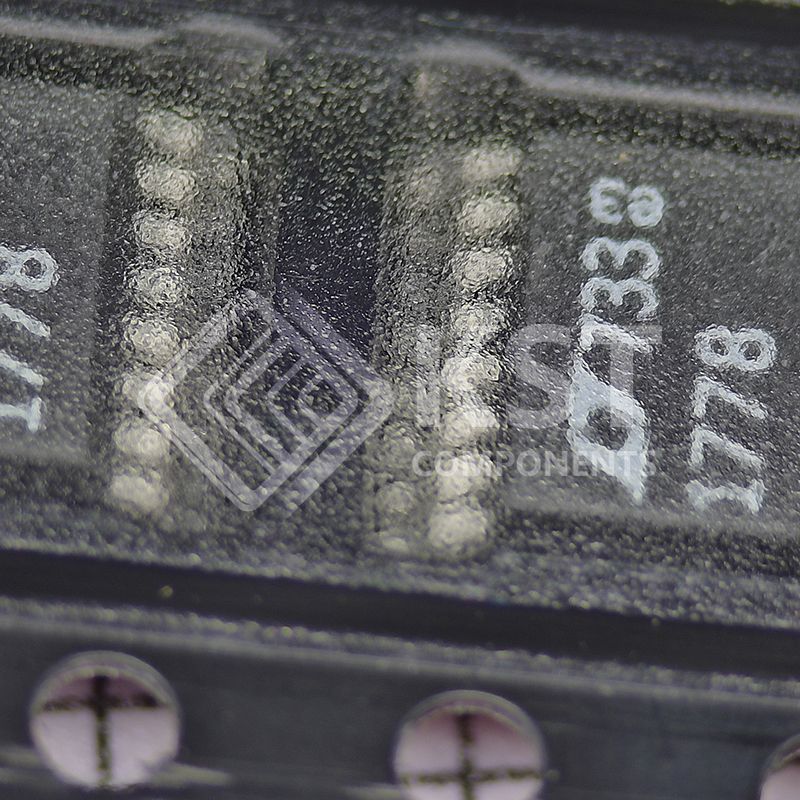

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Type |
Transistor Driver
|
|
|
Function |
Step-Down, Step-Up/Step-Down
|
|
|
Output Configuration |
Positive or Negative
|
|
|
Topology |
Buck, Buck-Boost
|
|
|
Number of Outputs |
1
|
|
|
Output Phases |
1
|
|
|
Voltage - Supply (Vcc/Vdd) |
4V ~ 36V
|
|
|
Frequency - Switching |
-
|
|
|
Duty Cycle (Max) |
-
|
|
|
Synchronous Rectifier |
Yes
|
|
|
Clock Sync |
Yes
|
|
|
Serial Interfaces |
-
|
|
|
Control Features |
Enable, Power Good, Soft Start
|
|
|
Operating Temperature |
-40°C ~ 85°C (TA)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
16-SSOP (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
16-SSOP
|
|
|
Base Product Number |
LTC1778 |
