Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - DC DC Switching Regulators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|

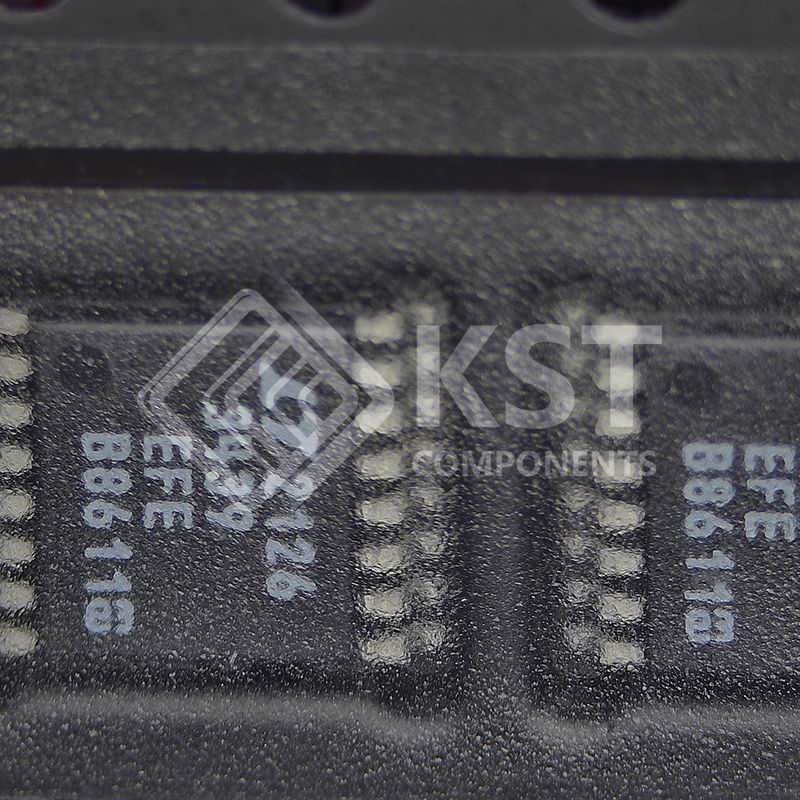

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Function |
Step-Up/Step-Down
|
|
|
Output Configuration |
Positive, Isolation Capable
|
|
|
Topology |
Push-Pull |
|
|
Output Type |
Fixed |
|
|
Number of Outputs |
1
|
|
|
Voltage - Input (Min) |
2.8V
|
|
|
Voltage - Input (Max) |
17.5V
|
|
|
Voltage - Output (Min/Fixed) |
-
|
|
|
Voltage - Output (Max) |
-
|
|
|
Current - Output |
1A |
|
|
Frequency - Switching |
20kHz ~ 250kHz
|
|
|
Synchronous Rectifier |
No
|
|
|
Operating Temperature |
0°C ~ 70°C (TJ)
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

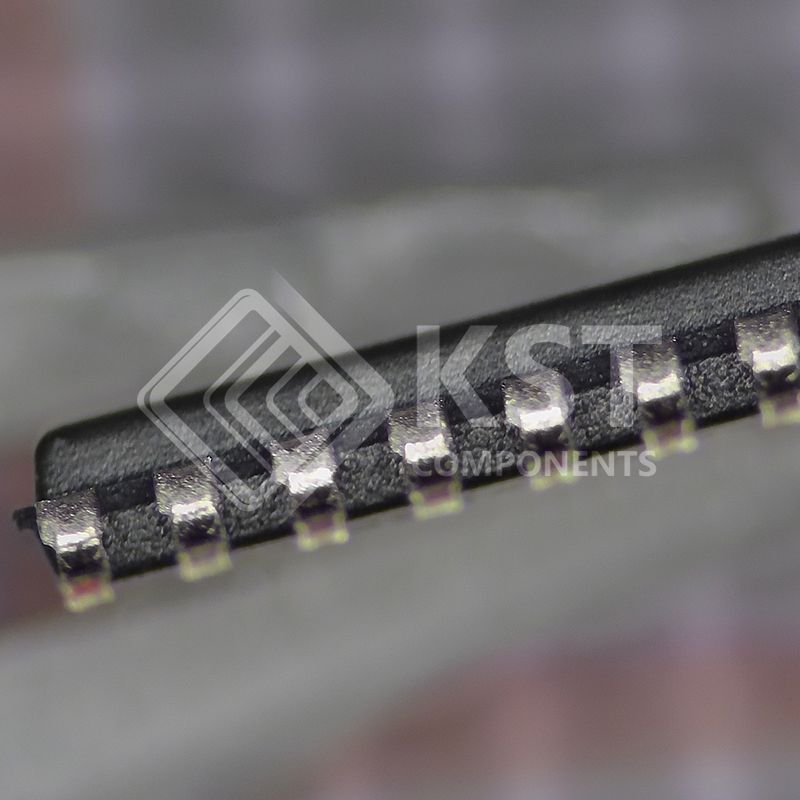

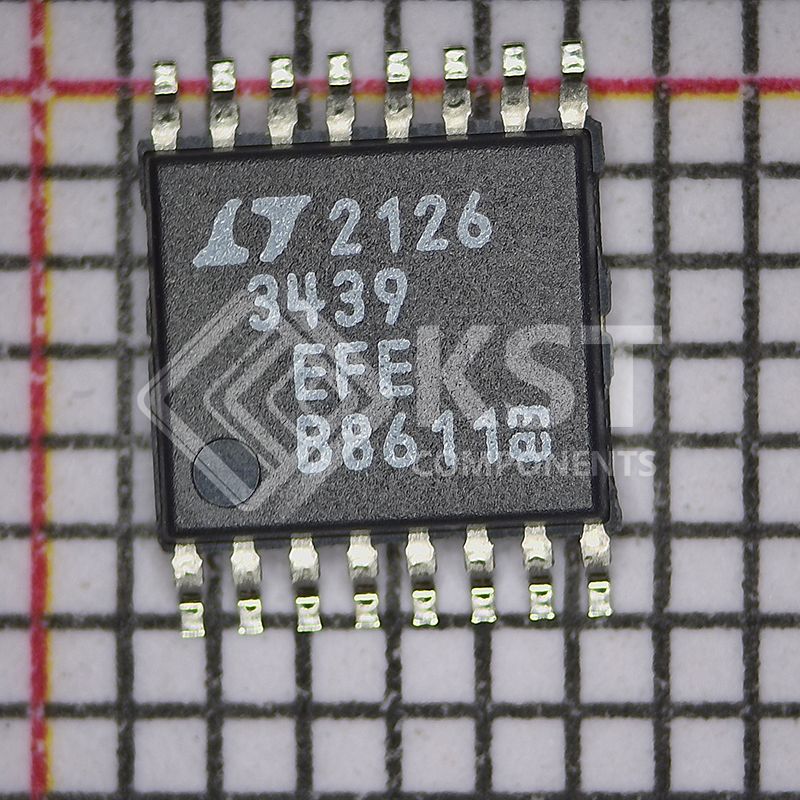

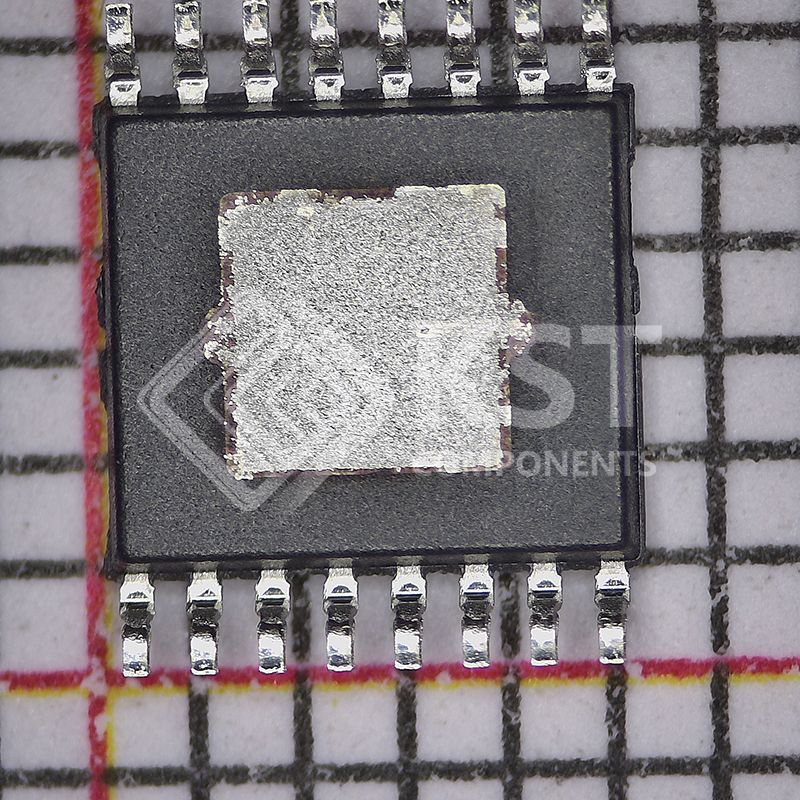

16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
|
|
Supplier Device Package |
16-TSSOP-EP
|
|
|
Base Product Number |
LT3439 |
