Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
36V
|
|
|
Voltage - Output (Min/Fixed) |
0V
|
|
|
Voltage - Output (Max) |
36V |
|
|
Voltage Dropout (Max) |
1.6V @ 1.1A
|
|
|
Current - Output |
1.1A |
|
|
Current - Quiescent (Iq) |
500 µA
|
|
|
Current - Supply (Max) |
30 mA
|
|
|
PSRR |
75db ~ 20dB (120Hz ~ 1MHz)
|
|
|
Control Features |
-
|
|
|
Protection Features |
Over Current, Over Temperature, Short Circuit
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |

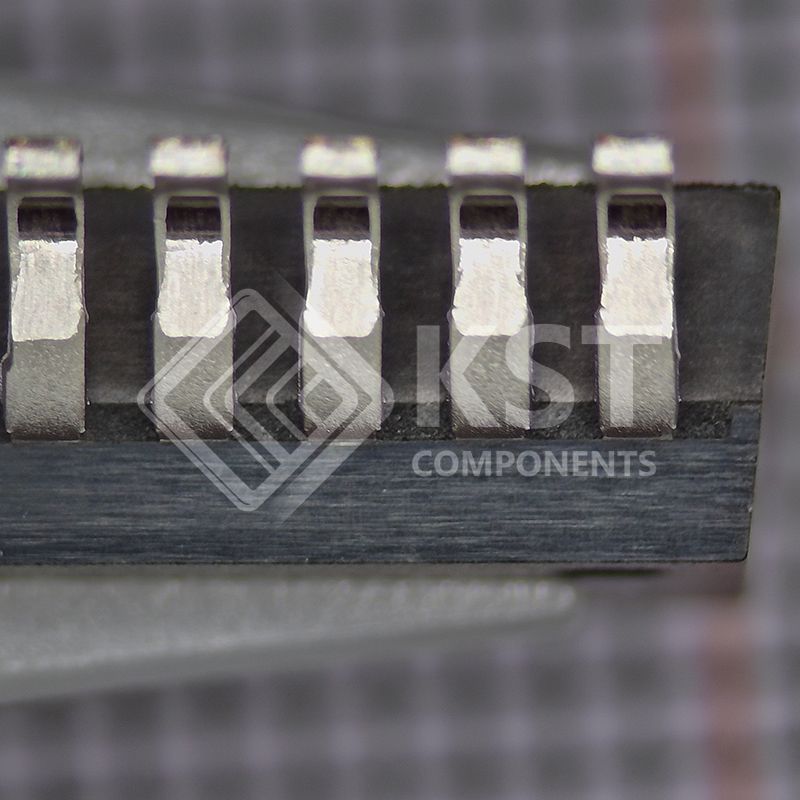

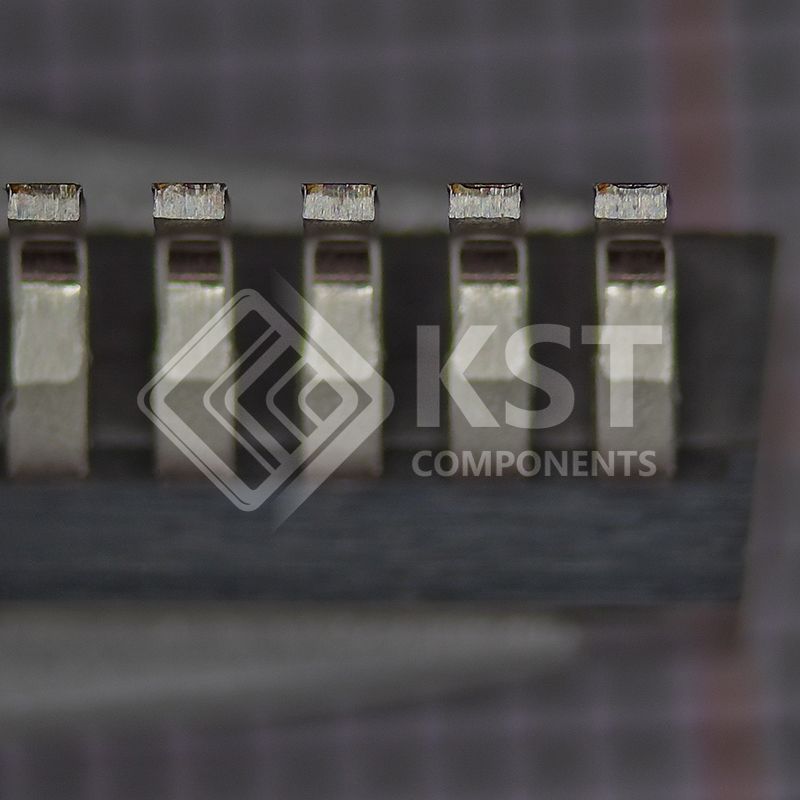

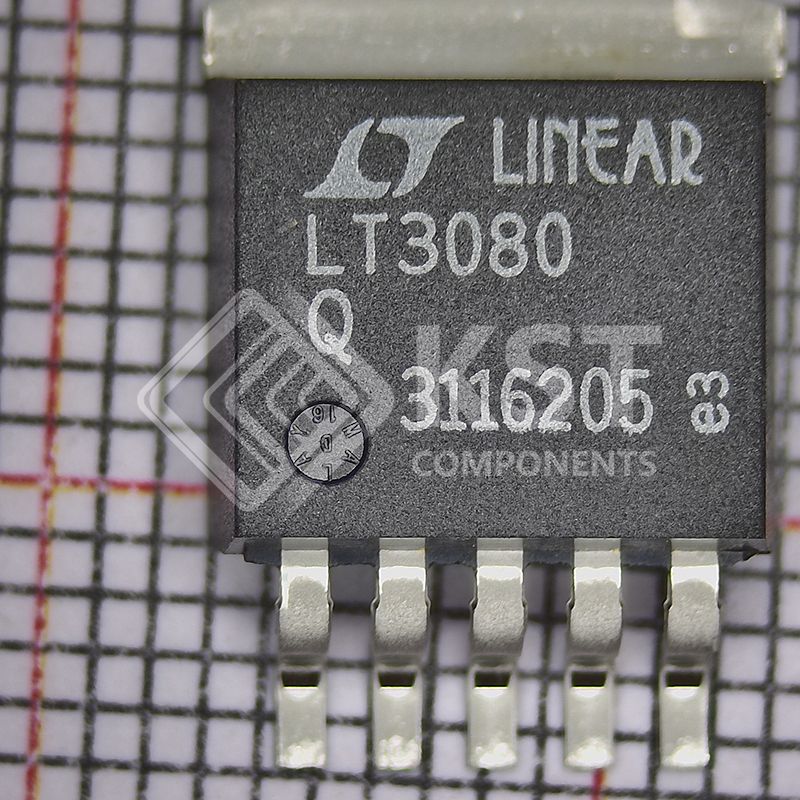

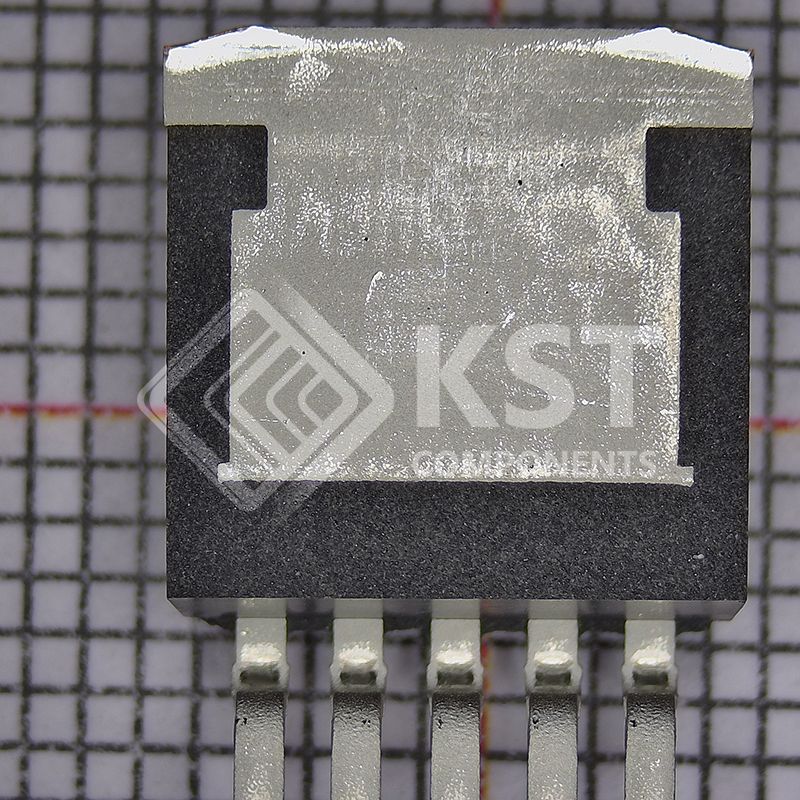

TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
|
|
|
Supplier Device Package |
DDPAK-5
|
|
|
Base Product Number |

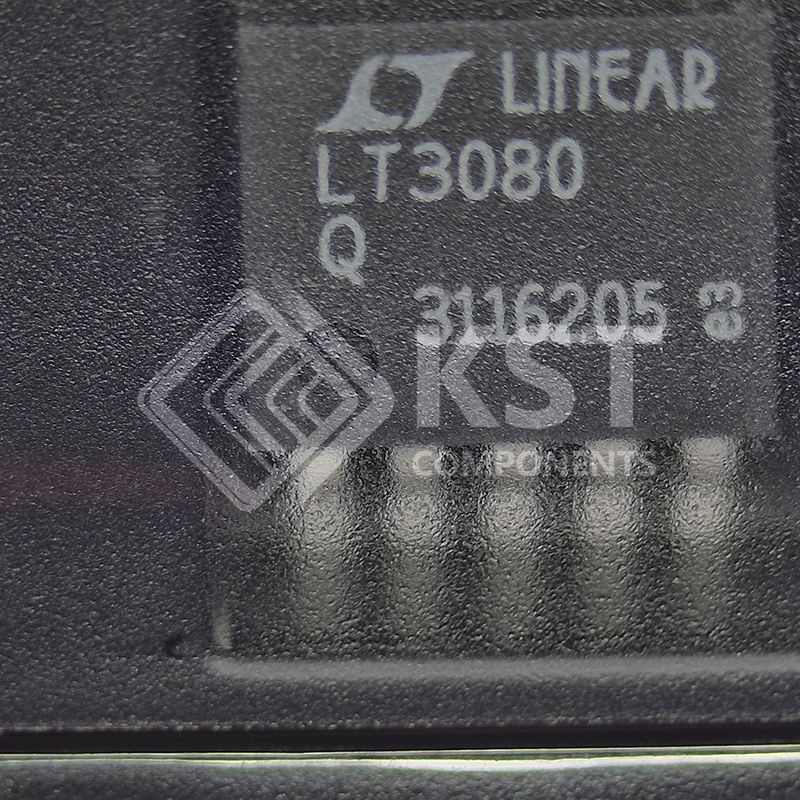

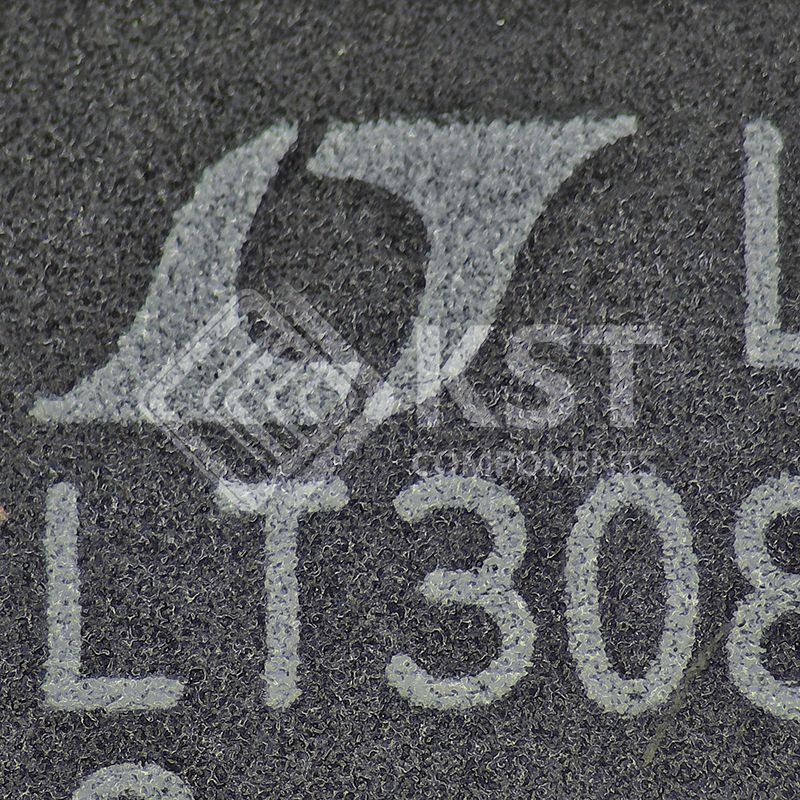

LT3080 |
