Category |
Integrated Circuits (ICs)
Power Management (PMIC)
Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
|
|
|
Mfr |
Analog Devices Inc. |
|
|
Series |
-
|
|
|
Packaging |

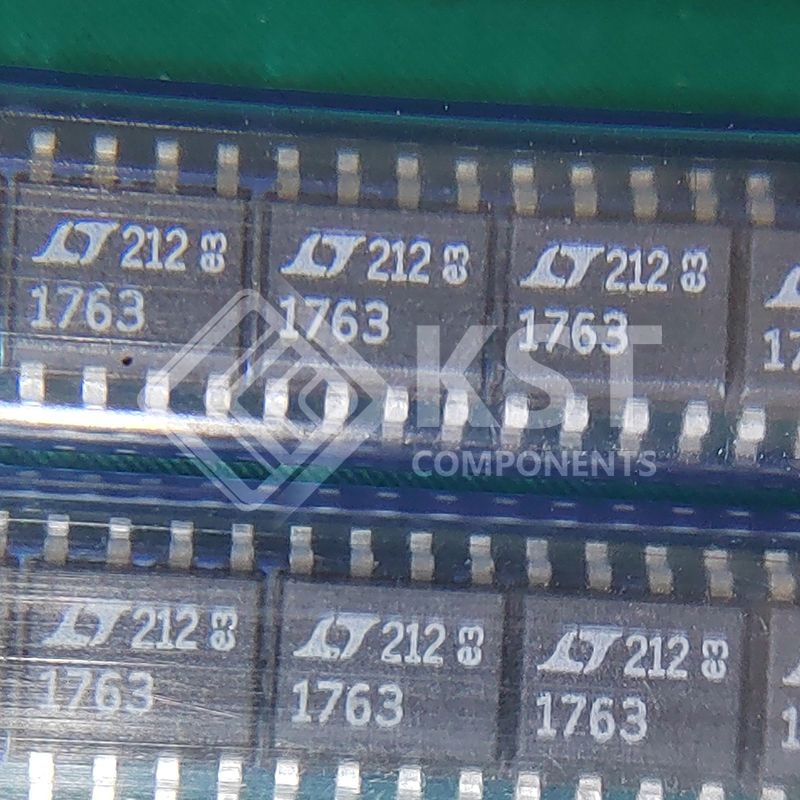

Tube
|
|
|
Part Status |
Active
|
|
|
Output Configuration |
Positive |
|
|
Output Type |
Adjustable |
|
|
Number of Regulators |
1
|
|
|
Voltage - Input (Max) |
20V
|
|
|
Voltage - Output (Min/Fixed) |
1.22V
|
|
|
Voltage - Output (Max) |
20V |
|
|
Voltage Dropout (Max) |
0.45V @ 500mA
|
|
|
Current - Output |
500mA |
|
|
PSRR |
65dB (120Hz)
|
|
|
Control Features |
Enable
|
|
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity
|
|
|
Operating Temperature |
-40°C ~ 125°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SO
|
|
|
Base Product Number |
LT1763 |
