Category |
Discrete Semiconductor Products
Transistors
FETs, MOSFETs
Single FETs, MOSFETs
|
|
|
Mfr |
Infineon Technologies |
|
|
Series |
HEXFET®, StrongIRFET™ |
|
|

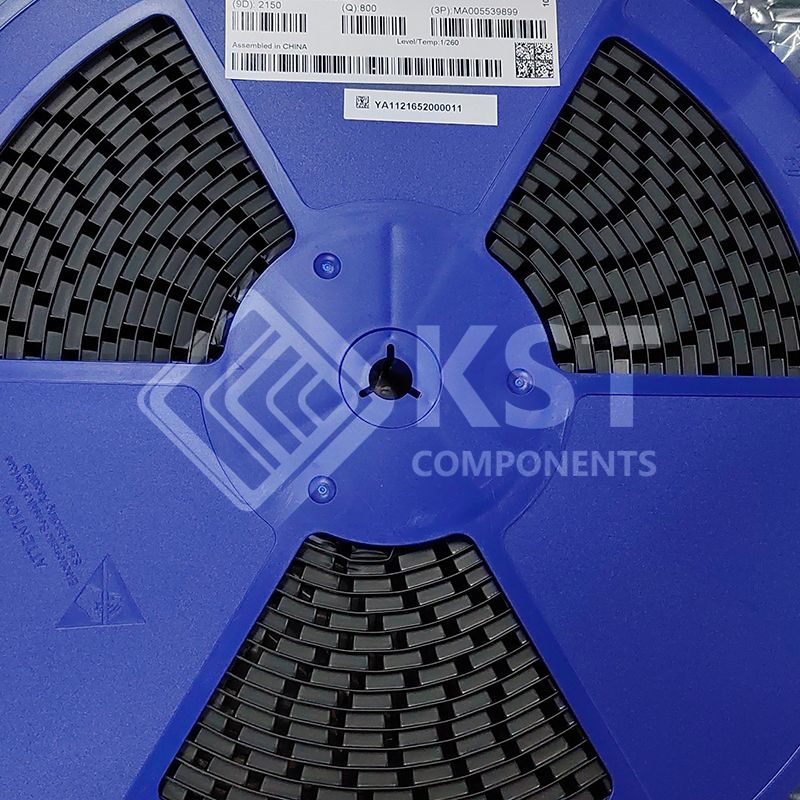

Packaging |

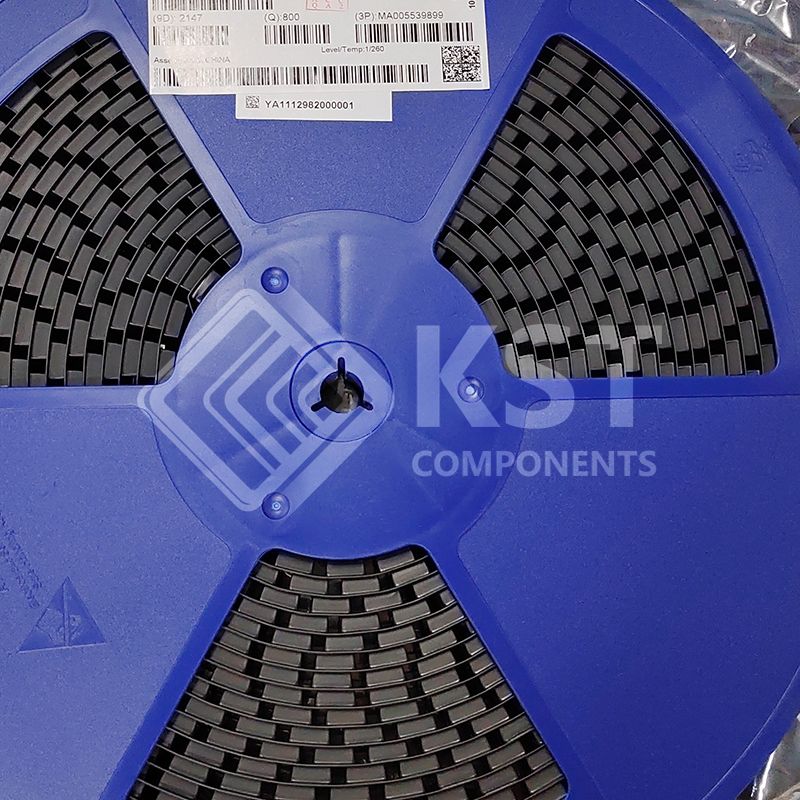

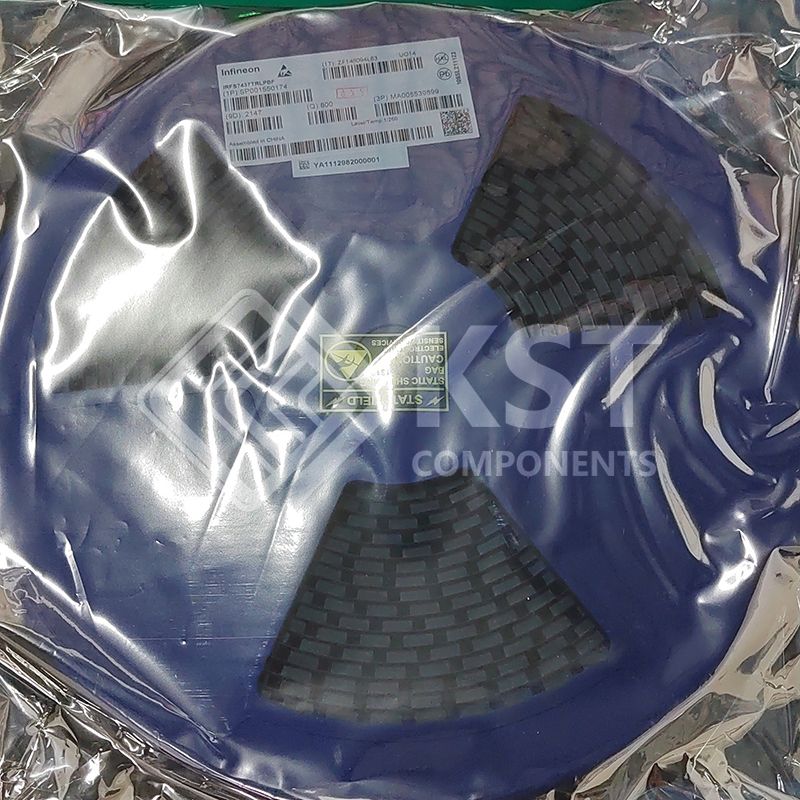

Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
FET Type |
N-Channel |
|
|
Technology |
MOSFET (Metal Oxide) |
|
|
Drain to Source Voltage (Vdss) |
40 V
|
|
|
Current - Continuous Drain (Id) @ 25°C |
195A (Tc) |
|
|
Drive Voltage (Max Rds On, Min Rds On) |
6V, 10V
|
|
|
Rds On (Max) @ Id, Vgs |
1.8mOhm @ 100A, 10V
|
|
|
Vgs(th) (Max) @ Id |
3.9V @ 150µA
|
|
|
Gate Charge (Qg) (Max) @ Vgs |
225 nC @ 10 V
|
|
|
Vgs (Max) |
±20V
|
|
|
Input Capacitance (Ciss) (Max) @ Vds |
7330 pF @ 25 V
|
|
|
FET Feature |
-
|
|
|
Power Dissipation (Max) |
230W (Tc)
|
|
|
Operating Temperature |
-55°C ~ 175°C (TJ)
|
|
|
Grade |
-
|
|
|
Qualification |
-
|
|
|
Mounting Type |
Surface Mount
|
|
|
Supplier Device Package |

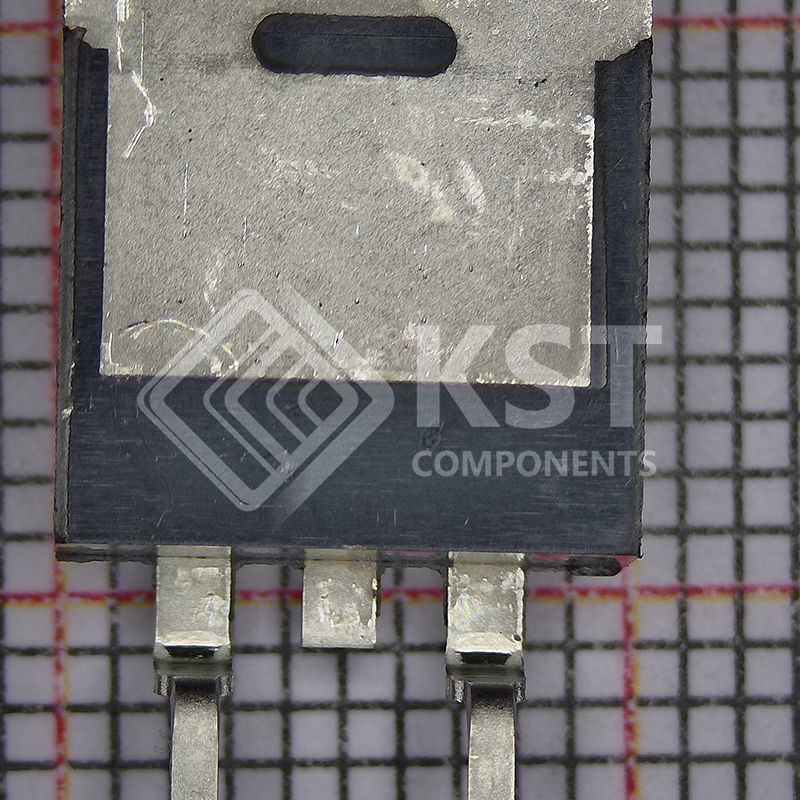

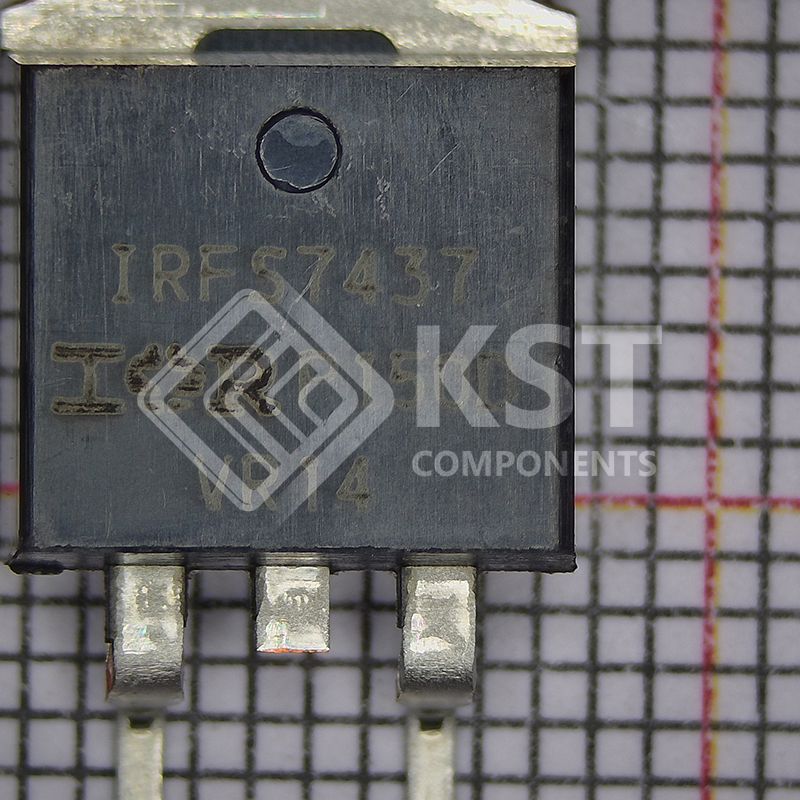

TO-263AB
|
|
|
Package / Case |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
|
|
Base Product Number |

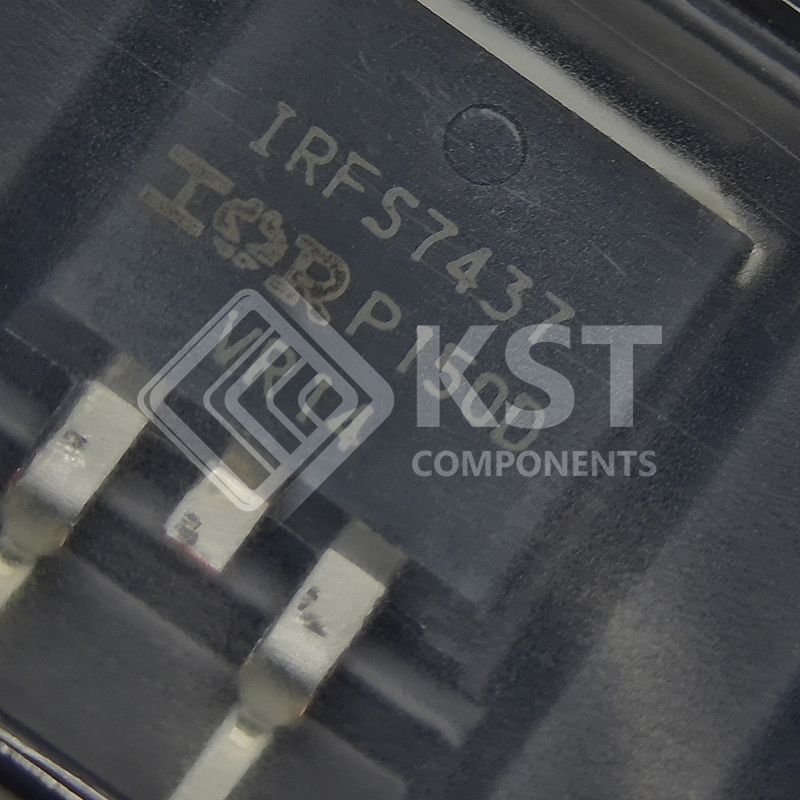

IRFS7437 |
