Category |
Isolators
Optocouplers, Optoisolators
Transistor, Photovoltaic Output Optoisolators
|
|
|
Manufacturer |
Broadcom Limited
|
|
|
Series |
-
|
|
|

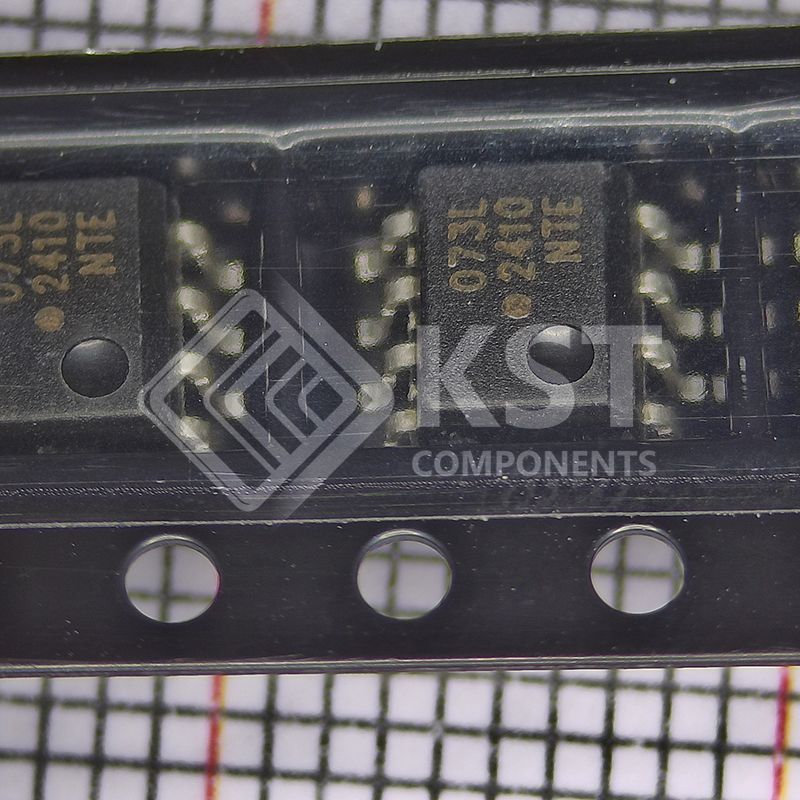

Packaging |
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
|
|
|
Part Status |
Active
|
|
|
Number of Channels |
2
|
|
|
Voltage - Isolation |
3750Vrms
|
|
|
Current Transfer Ratio (Min) |
300% @ 1.6mA
|
|
|
Current Transfer Ratio (Max) |
2600% @ 1.6mA
|
|
|
Turn On / Turn Off Time (Typ) |
25µs, 50µs
|
|
|
Rise / Fall Time (Typ) |
-
|
|
|
Input Type |
DC
|
|
|
Output Type |
Darlington
|
|
|
Voltage - Output (Max) |
7V
|
|
|
Current - Output / Channel |
60mA
|
|
|
Voltage - Forward (Vf) (Typ) |
1.5V
|
|
|
Current - DC Forward (If) (Max) |
20 mA
|
|
|
Vce Saturation (Max) |
-
|
|
|
Operating Temperature |
0°C ~ 70°C
|
|
|
Mounting Type |
Surface Mount
|
|
|
Package / Case |
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package |
8-SO
|
|
|
Base Product Number |
HCPL-073 |
|
